1025875 2042432 2050691 2050692 Final Drive Carrier For Hitachi ZX200-3 Travel Device Gear Parts

• 1025875 2042432 2050691 2050692 Final Drive Carrier For Hitachi ZX200-3 Travel Device Gear Parts

• Spec Sheet

• Appliion

HC2710 .   IZX200 .   IZX200LC .   IZX210F .   IZX210MF .   ZH200-A .   ZH200LC-A .   ZR420JC .   ZX180LC .   ZX180LC-3 .   ZX180LC-3-AMS .   ZX180LC-3-HCME .   ZX180LC-AMS .   ZX180LC-HCME .   ZX200 .   ZX200-3 .   ZX200-3-HCMC .   ZX200-3G .   ZX200-5G .   ZX200-E .   ZX200-HHE .   ZX200-X .   ZX200LC-5G .   ZX200LC-HHE .   ZX210-3-AMS .   ZX210-3-HCME .   ZX210-AMS .   ZX210-HCME .   ZX210H .   ZX210H-3 .   ZX210H-3-HCMC .   ZX210H-3G .   ZX210H-5G .   ZX210K .   ZX210K-3 .   ZX210K-3-HCMC .   ZX210K-3G .   ZX210K-5G .   ZX210LC-3-HCMC .   ZX210LC-3G .   ZX210LCH-5G .   ZX210LCK-3-HCMC .   ZX210LCK-5G .   ZX210N-3-AMS .   ZX210N-3-HCME .   ZX210N-AMS .   ZX210N-HCME .   ZX225US-3 .   ZX225US-3-HCME .   ZX225USR-3 .   ZX225USRK-3 .   ZX240-3-AMS .   ZX240-AMS .   ZX240-HCME .   ZX240N-3-HCME .   Hitachi

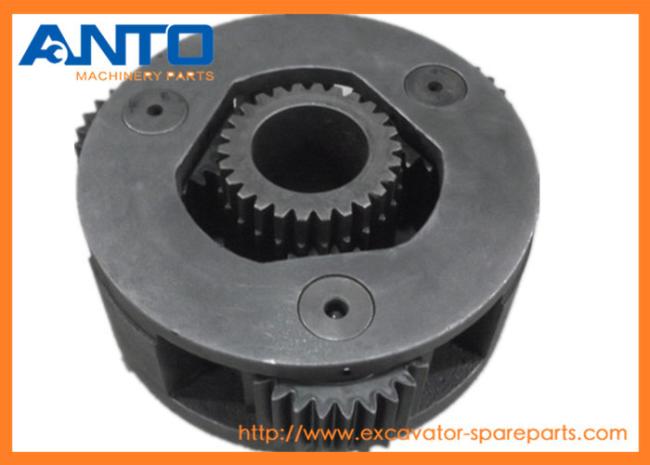

• Product photos

• Parts Diagram:

Parts on group Travel Motor Gearbox:

0.9261222[1]-
Motor SUB FOR (1) 9233692 .
1.9258325[1]-
Hydraulic Motor NLA, ORDER (1) PG200139 COMPONENTS ON ANOTHER PAGE .
1.PG200139[1]-
Hydraulic Motor Reman SUB FOR (1) 9257254, REMAN FOR 9258325 COMPONENTS ON ANOTHER PAGE .
2.FYB00000549[1]-
Seal CONTAINS 2 SEALS SUB FOR 4634693
3.4697840[2]-
Bearing SUB FOR (1) 4246793
4.1033090[1]-
Drum
5.1033091[1]-
Chain Sprocket SUB FOR 4S00862
6.19M8002[18]-
Cap Screw M20 X 55 SUB FOR (1) J932055
7.A590920[18]-
Lock Washer
9.3086531[1]-
Ring
10.4436242[1]-
Pin Fastener
11.4713899[6]-
Bearing SUB FOR 4438593
12.1025875[1]-
Planet Pinion Carrier
13.3084353[3]-
Gear
15.4284521[6]-
Shim
16.4315838[3]-
Pin Fastener
17.34M7133[3]-
Spring Pin 8 X 70 MM SUB FOR (1) 4116309
18.3082156[1]-
Sun Gear
20.1025787[1]-
Housing
21.19M7488[24]-
Cap Screw M16 X 40 SUB FOR (1) J931640
23.2042432[1]-
Planet Pinion Carrier
24.4401293[1]-
Spacer
25.3082155[3]-
Gear
26.4438592[3]-
Needle Bearing
27.4192982[6]-
Plate
28.4402086[3]-
Pin Fastener
29.4192020[3]-
Spring Pin
30.3082149[1]-
Sun Gear
32.2050691[1]-
Carrier Roller
33.4401293[1]-
Spacer
34.3100544[3]-
Gear
35.4406589[3]-
Needle Bearing
36.4192910[6]-
Plate
37.4210853[3]-
Spacer
38.4173093[3]-
Spring Pin
39.2050692[1]-
Shaft
41.2034833[1]-
Cover
42.4478346[1]-
Pin
43.19M8011[12]-
Cap Screw M12 X 30 SUB FOR (1) 4609016
44.942013[3]-
Fitting Plug SUB FOR (1) 4245797

• Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.

Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

• Advantage

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
