VOE14573820 14573820 Excavator Final Drive Used For EC140B EC140C Travel Reduction Gearbox
- VOE14573820 14573820 Excavator Final Drive Used For EC140B EC140C Travel Reduction Gearbox
- Spec Sheet
| Excavator spare parts name | travel reduction gearbox |
| Equipment Model | Vo-lvo EC140B C |
| Parts egory | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
Excavator EC140B . EC140C . ECR145C . Vo-lvo pro

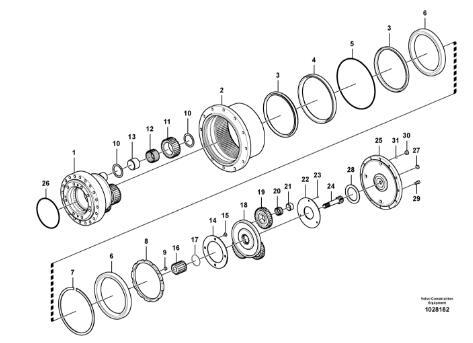

- Parts Diagram
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
ENTIRE GROUP Travel gearbox:
Travel gearbox
1.VOE14522475[1]-
Housing
2.SA7117-30110[2]-
Ball bearing
3.VOE14601683[1]-
Sealing
4.SA7117-30140[1]-
Shim 0,1 Thick
SA7117-30150[1]-
Shim 0,9 Thick
SA7117-30160[1]-
Shim 1,0 Thick
SA7117-30170[1]-
Shim 1,2 Thick
5.SA7117-30130[1]-
Retainer
6.VOE978932[12]-
Hexagon screw
7.SA9324-21212[2]-
Pin
8.SA7117-30190[1]-
Ring gear
9.SA7117-30180[1]-
Flexible coupling
10.VOE14528723[1]-
Planet carrier
11.SA7117-30210[1]-
Planet carrier
12.SA7117-30240[4]-
Planetary Gear
13.SA7117-30230[8]-
Needle bearing
14.SA7117-30220[8]-
Thrust washer
15.VOE14528724[4]-
Pin
16.SA9325-06012[4]-
Spring pin
17.SA7117-30260[1]-
Thrust ring
18.VOE14528727[1]-
Planet carrier
19.VOE14528728[1]-
Planet carrier
20.SA7117-30290[1]-
Sun gear
21.SA7117-30300[1]-
Ring
22.SA7117-30340[3]-
Planetary gear
23.SA7117-30320[3]-
Needle bearing
24.SA7117-30310[6]-
Thrust washer
25.SA7117-30360[3]-
Pin
26.SA9325-04010[3]-
Spring Pin
27.SA7117-30260[1]-
Thrust ring
28.VOE14602566[1]-
Cover
29.SA7117-15230[1]-
Pad
30.SA7117-30370[20]-
Hexagon screw
31.SA9023-11004[2]-
Set screw
32.SA9415-11052[0002]-
Plug
33.SA7117-30330[1]-
Sun gear
34.VOE983524[0002]-
O-ring
10.VOE14526220[1]-
Overhaul kit
