• We have the following model

Compatible models:

PC75UD PC75UU

alogs:
PC75UD-2E S/N 5001-UP EXCAVATORS
CONTROL PUMP (MOUNT AND ELBOW) » 705-40-01370
CONTROL PUMP (PUMP) (INNER PARTS) (FOR P.P.C. MAIN LINE) » 705-40-01370
PC75UD-2 S/N 5001-UP EXCAVATORS
CONTROL PUMP (MOUNT AND ELBOW) » 705-40-01370
CONTROL PUMP (PUMP) (INNER PARTS) (FOR P.P.C. MAIN LINE) » 705-40-01370
PC75UU-2E S/N 5001-UP EXCAVATORS
CONTROL PUMP (MOUNT AND ELBOW) » 705-40-01370
CONTROL PUMP (PUMP) (INNER PARTS) (FOR P.P.C. MAIN LINE) » 705-40-01370
PC75UU-2 S/N 5001-UP EXCAVATORS
CONTROL PUMP (MOUNT AND ELBOW) » 705-40-01370
CONTROL PUMP (PUMP) (INNER PARTS) (FOR P.P.C. MAIN LINE) » 705-40-01370
PC75UU-2 S/N 5001-UP EXCAVATORS
CONTROL PUMP (MOUNT AND ELBOW) » 705-40-01370
CONTROL PUMP (PUMP) (INNER PARTS) (FOR P.P.C. MAIN LINE) » 705-40-01370

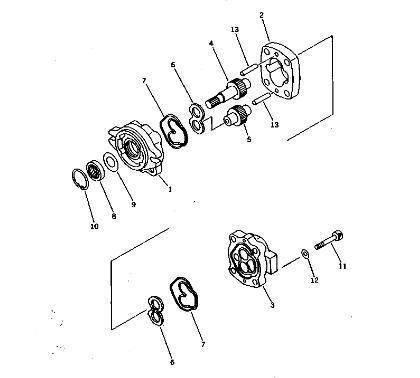

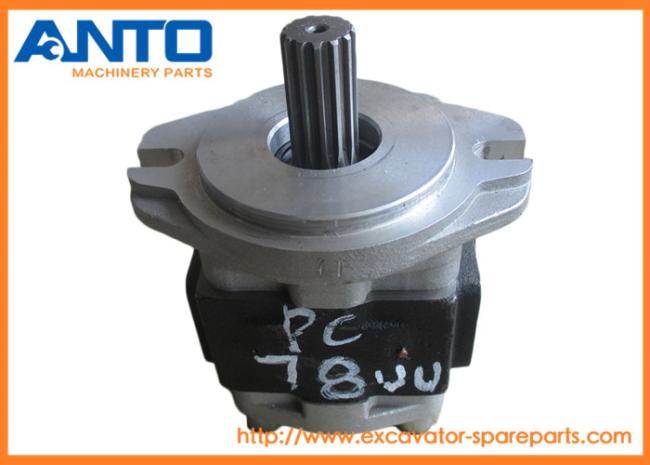

705-40-01370 [1] - PUMP ASS'Y Komatsu ["SN: 5001-UP"] analogs:[] |1. Weight: 2.56 kg.
1. 705-40-80210 [1] - BRACKET Komatsu China ["SN: 5001-UP"] analogs:[] 705-40-80610 [1] - BUSHING,PLANE Komatsu ["SN: 5001-UP"] analogs:[] |1. Weight: 0.012 kg. 705-40-80620 [1] - BUSHING,PLANE Komatsu ["SN: 5001-UP"] analogs:[] |1. Weight: 0.012 kg.
2. 705-40-18011 [1] - ,GEAR Komatsu China ["SN: 5001-UP"] analogs:[]
3. 705-40-80150 [1] - COVER Komatsu ["SN: 5001-UP"] analogs:[] Weight: 0.000 kg.
4. 705-40-18410 [1] - GEAR,DRIVE Komatsu China ["SN: 5001-UP"] analogs:[]
5. 705-40-18511 [1] - GEAR,DRIVEN Komatsu China ["SN: 5001-UP"] analogs:[]
6. 705-40-80720 [2] - PLATE,SIDE Komatsu ["SN: 5001-UP"] analogs:["7054080710", "7054083720"] Weight: 0.02 kg.
7. 705-40-80760 [2] - SEAL,RING Komatsu ["SN: 5001-UP"] analogs:[] Weight: 0.003 kg.
8. 705-40-80810 [1] - SEAL,OIL Komatsu ["SN: 5001-UP"] analogs:[] Weight: 0.01 kg.
9. 705-40-80870 [1] - PLATE Komatsu ["SN: 5001-UP"] analogs:[] Weight: 0.008 kg.
10. 04065-03515 [1] - RING,SNAP Komatsu ["SN: 5001-UP"] analogs:[] Weight: 0.003 kg.
11. 705-41-80810 [4] - BOLT Komatsu China ["SN: 5001-UP"] analogs:["0125271255"]
12. 01643-51232 [4] - WASHER Komatsu ["SN: 5001-UP"] analogs:[] Weight: 0.024 kg.
13. 705-67-01910 [2] - PIN,DOWEL Komatsu China ["SN: 5001-UP"] analogs:[]

• Picture show
