1144002720 6BD1 Engine Turbocharger Applied To Hitachi EX200-2 EX200-3 Engine Spare Parts

• 1144002720 6BD1 Engine Turbocharger Applied To Hitachi EX200-2 EX200-3 Engine Spare Parts

The turbocharger assembly could be applied to below models:

EX200-2
TURBOCHARGER SYSTEM : » 1144002720 TURBOCHARGER ASM
TURBOCHARGER SYSTEM : » 1144002720 TURBOCHARGER ASM
EX200-3
TURBOCHARGER SYSTEM : » 1144002720 TURBOCHARGER ASM
EX200-3E
TURBOCHARGER SYSTEM : » 1144002720 TURBOCHARGER ASM
HR1000
TURBOCHARGER SYSTEM : » 1144002720 TURBOCHARGER ASM
HR320
TURBOCHARGER SYSTEM : » 1144002720 TURBOCHARGER ASM
HR420
TURBOCHARGER SYSTEM : » 1144002720 TURBOCHARGER ASM
RX2000-2
TURBOCHARGER SYSTEM : » 1144002720 TURBOCHARGER ASM

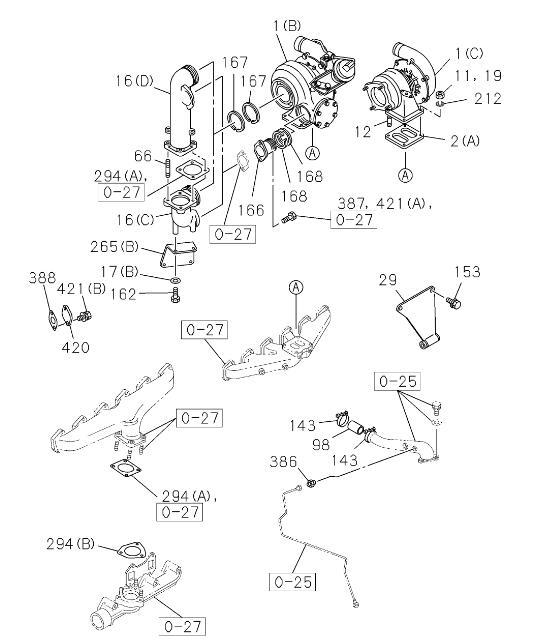

Turbocharger Parts Diagram

ENTIRE GROUP TURBOCHARGER SYSTEM:

1(C).1144002720[1] -
TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.
2(A).1141451400[1] -
GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
11.1094000270[1] -
NUT; TURBOCHARGER .
11.9098420070[3] -
NUT; TURBOCHARGER .
12.1093001010[1] -
STUD; TURBOCHARGER .
19.9098420070[3] -
NUT; EXH PIPE,TURBOCHARGER M10 P=1.5 H=8 .
98.1093607820[1] -
HOSE; RUBBER,TURBOCHARGER OUTLET .
143.8943169910[2] -
CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69 .
212.1095030331[4] -
WASHER; PL,TURBOCHARGER ID=10
