31N4-15011 31N4-15012 31N4-15030 K3V63DTP1JHR-9COS Hydraulic Pump Used For Hyundai R140W-7
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
1-3 working days
Brand:
OEM
Product Description
- 31N4-15011 31N4-15012 31N4-15030 K3V63DTP1JHR-9COS Hydraulic Pump Used For Hyundai R140W-7
Product description
| Excavator spare parts name | Hydraulic main pump |
| Equipment Model | R140W-7 |
| Parts egory | Excavator Hydraulic Spare parts |
| Spare parts Condition | Genuine |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Part NO. | K3V63DTP |
| Apply for | Kobelco,Hyundai |
* 31N4-15011 MAIN PUMP 1 #0540 STD
* 31N4-15012 MAIN PUMP 1 #0541 STD
* 31N4-15030 MAIN PUMP 1 #0285 LOW NOISE
*-1 XJBN-00848 MAIN PUMP UNIT 1 #0389 STD
*-1 XJBN-01028 MAIN PUMP UNIT 1 #0390
*-1 XJBN-00927 MAIN PUMP UNIT 1 #0285 LOW NOISE
111 XJBN-00432 SHAFT(F)-DRIVE 1
113 XJBN-00431 SHAFT(R)-DRIVE 1
116 XJBN-00804 GEAR-1ST 1
123 XJBN-00429 BEARING-ROLLER 2
124 XJBN-00428 BEARING-NEEDLE 2
127 XJBN-00806 SPACER-BEARING 4
S141 XJBN-00807 BLOCK 2
S151 XJBN-00425 PISTON 18
S152 XJBN-00424 SHOE 18
153 XJBN-00423 PLATE-SET 2
156 XJBN-00422 BUSHING-SPHERICAL 2
157 XJBN-00421 SPRING-CYLINDER 18
211 XJBN-00420 PLATE-SHOE 2
S212 XJBN-00419 PLATE-SWASH 2
S214 XJBN-00418 BUSHING-TILTING 2
251 XJBN-00417 SUPPORT 2
261 XJBN-00416 COVER(F)-SEAL 1
262 XJBN-00810 COVER-RR 1
271 XJBN-00415 CASING-PUMP 2
312 XJBN-00812 BLOCK-VALVE 1
S313 XJBN-00413 PLATE(R)-VALVE 1
S314 XJBN-00412 PLATE(L)-VALVE 1
401 XJBN-00411 SCREW 8
406 XJBN-00410 SCREW 8
466 XJBN-00356 PLUG 2
467 XJBN-00409 PLUG 4
468 XJBN-00237 PLUG 2
490 XJBN-00032 PLUG 15
S531 XJBN-00408 PIN-TILTING 2
532 XJBN-00407 PISTON-SERVO 2
534 XJBN-00406 STOPPER(L) 2
535 XJBN-00405 STOPPER(S) 2
S548 XJBN-00404 PIN-FEED BACK 2
702 XJBN-00403 O-RING 2
STD
702 XJBN-00888 O-RING 2 #0285 LOW NOISE
710 XJBN-00402 O-RING 2
711 XJBN-00095 O-RING 1
717 XJBN-00401 O-RING 2
719 XJBN-00400 O-RING 2
724 XJBN-00361 O-RING 18
725 XJBN-00362 O-RING 2
727 XJBN-00233 O-RING 2
728 XJBN-00097 O-RING 4
732 XJBN-00879 O-RING 2
STD
732 XJBN-00820 O-RING 2 #0285 LOW NOISE
774 XJBN-00399 SEAL-OIL 1
789 XJBN-00398 RING-BACK UP 2
792 XJBN-00397 RING-BACK UP 2
808 XJBN-00396 NUT-HEX 4
824 XJBN-00395 RING-SNAP 2
885 XJBN-00394 PIN-VALVE PLATE 2
886 XJBN-00365 PIN-SPRING 4
901 XJBN-00393 BOLT-EYE 2
953 XJBN-00105 SCREW-SET 2
954 XJBN-00392 SCREW-SET 2
981 XJBN-00156 NAME PLATE 1
STD
981 XJBN-00867 NAME PLATE 1 #0285 LOW NOISE
983 XJBN-00341 PIN 2
*-2
REGULATOR ASSY 1
NOT
*-2
REGULATOR ASSY 1
NOT
*-5 XJBN-00975 PTO UNIT 1 #0389 STD
*-5 XJBN-01018 PTO UNIT 1 #0390 STD
*-5 XJBN-00926 PTO UNIT 1 #0285 LOW NOISE
5 XJBN-00828 PTO ASSY 1 #0389 STD/LOW NOISE
5 XJBN-01020 PTO ASSY 1 #0390 STD
5 XJBN-00828 PTO ASSY 1 #0390 LOW NOISE
5-1 XJBN-00160 SCREW-SOCKET 2
5-2 XJBN-00725 SOCKET-FLANGE 4
5-3 XJBN-00357 PLUG 1
5-4 XJBN-00837 O-RING 1
5-5 XJBN-00402 O-RING 1
5-6 XJBN-00363 O-RING 1
5-7 XJBN-01023 PIN-SPRING 1 #0390 STD
*-51
GEAR PUMP 1 #0001 NOT
S XJBN-00437 PISTON SUB ASSY 1
S XJBN-00798 CYLINDER SUB ASSY-RH 1
SEE ILLUST
S XJBN-00799 CYLINDER SUB ASSY-LH 1
SEE ILLUST
S XJBN-00434 SWASH PLATE ASSY 1
SEE ILLUST
S XJBN-00433 TILTING PIN ASSY 1
SEE ILLUST

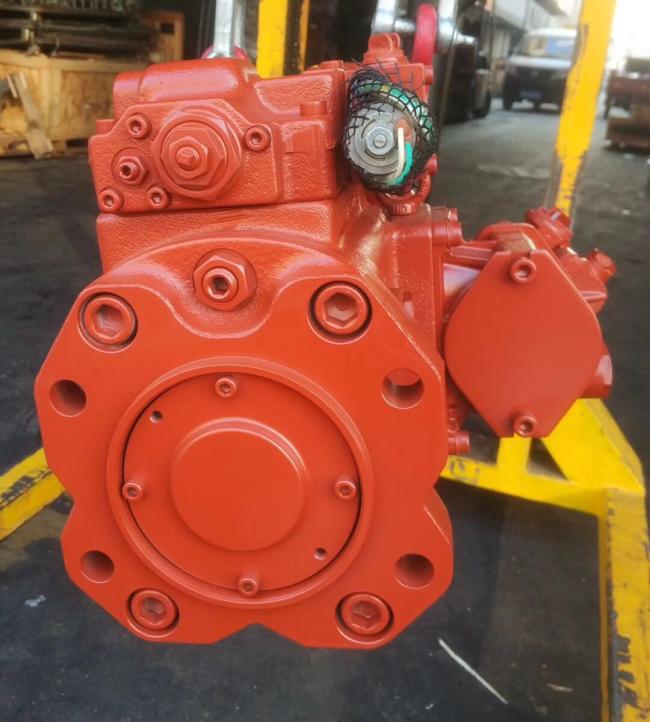

- Picture show
