3304 3306 3116 3126 Excavator Parts Engine Oil Filter 1R-0739 For 311C 312C 315C

• 3304 3306 3116 3126 Engine Oil Filter 1R-0739 Applied To 311C 312C 315C Excavator Parts

The oil filter could be applied to below models:

120G, 12G, 130G, 140G, 143H, 14G, 14H NA, 160G, 160H, 160H ES, 160H NA, 1673C, 235B, 3056E, 311, 3116, 311B, 311C, 311D LRR, 312, 3126, 3126B, 312B, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR

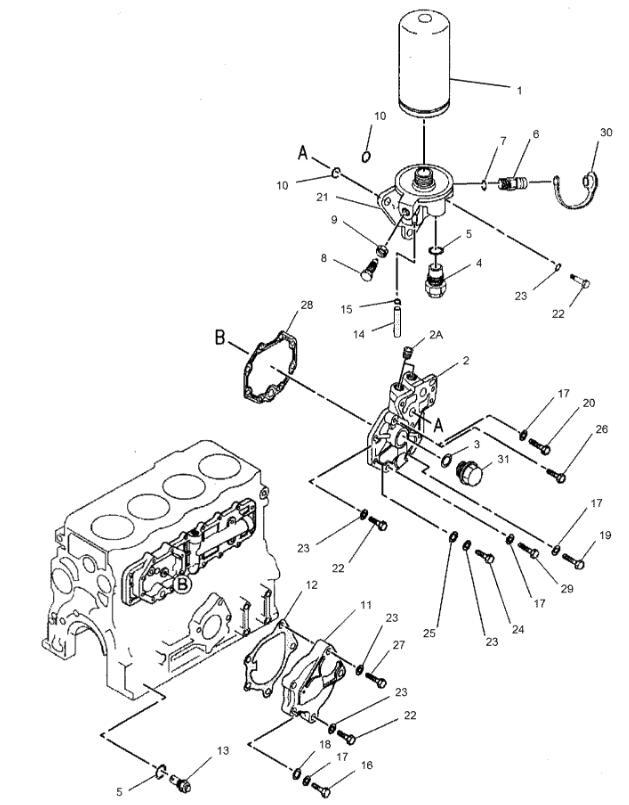

1R-0739 Oil filter parts diagram:

1.1R-0739[1] -
FILTER AS-ENGINE OIL (STANDARD EFFICIENCY)
2.183-8179[1] -
BASE AS
2A.096-3321[2] -
PLUG .
3.178-6571[1] -
GASKET
4.5I-8026[1] -
VALVE AS .
5.5B-5947[2] -
GASKET
6.8C-3446[1] -
VALVE-FLUID SAMPLING (ENGINE OIL)
7.178-6567[1] -
SEAL-O-RING .
8.196-8192[1] -
BOLT (M16X1.5X53-MM) .
9.178-6566 M[1] -
NUT (M16X1.5-THD) .
10.4I-9404[2] -
SEAL-O-RING
11.162-4898[1] -
COVER .
12.135-2405[1] -
GASKET
13.5I-8066[1] -
VALVE AS-RELIEF .
14.196-8229[1] -
HOSE .
15.196-8227[1] -
CLAMP .
16.8T-4908 M[2] -
BOLT (M8X1.25X25-MM)
17.3B-4505[6] -
LOCKWASHER
18.8T-4224[2] -
WASHER-HARD (8.8X16X2-MM THK)
19.178-6576 M[1] -
BOLT (M8X1.25X75-MM) .
20.178-6577 M[2] -
BOLT (M8X1.25X100-MM) .
21.196-8191[1] -
BRACKET AS .
22.8T-4136 M[7] -
BOLT (M10X1.5X25-MM)
23.7X-0796[9] -
LOCKWASHER
24.8T-4195 M[1] -
BOLT (M10X1.5X30-MM)
25.8T-4121[1] -
WASHER-HARD (11X21X2.5-MM THK)
26.8T-4137 M[1] -
BOLT (M10X1.5X20-MM)
27.8T-4186 M[2] -
BOLT (M10X1.5X40-MM)
28.125-2979[1] -
GASKET
29.8T-7329 M[1] -
BOLT (M8X1.25X55-MM) .
30.8C-3445[1] -
CAP-DUST (OIL SAMPLING VALVE)
31.178-6569[1] -
PLUG
