• 222-8331 3066 Engine Head Gasket Applied To 320D 320C Excavator Parts

The gasket kit could be applied to below models:

318C . 319C . 320B . 320C . 320C FM . 320C L . 320D . 320D LRR . 321C . 323D L . 323D LN .

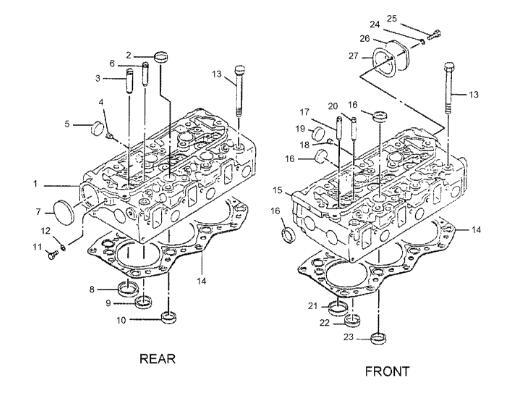

 parts diagram:

1.183-8171[1] -
CYLINDER HEAD AS
2.5I-4915[12] -
CAP
3.183-8172[3] -
GUIDE (INLET)
4.5I-7505[3] -
PLUG
5.099-4388[3] -
CAP
6.183-8173[3] -
GUIDE (EXHAUST)
7.5I-4916[1] -
PLUG .
8.5I-8011[3] -
INSERT
9.5I-8012[3] -
INSERT
10.5I-7583[4] -
CAP
11.5I-5591[1] -
PLUG-DRAIN .
12.095-2038[1] -
WASHER (7.8X13.5X2-MM THK)
13.5I-7718[26] -
BOLT (M12X1.75X125-MM) .
14.222-8331[2] -
GASKET
15.183-8174[1] -
CYLINDER HEAD AS
16.5I-4915[12] -
CAP
17.183-8172[3] -
GUIDE (INLET)
18.5I-7505[3] -
PLUG
19.099-4388[3] -
CAP
20.183-8173[3] -
GUIDE (EXHAUST)
21.5I-8011[3] -
INSERT
22.5I-8012[3] -
INSERT
23.5I-7583[4] -
CAP
24.3B-4505[4] -
LOCKWASHER
25.8T-4189 M[2] -
BOLT (M8X1.25X20-MM)
26.4W-8339[1] -
COVER .
27.5I-7728[1] -
GASKET
28.183-8215[1] -
PIPE .
29.5I-5029[2] -
BOLT (M8X1.25X17-MM) .
30.095-2038[4] -
WASHER (7.8X13.5X2-MM THK)
