2036744 Rotor HPV102 Barrel for Hitachi EX200-5 EX270 ZX200 ZX200-3 ZX240-3 Excavator Pump

• 2036744 Rotor HPV102 Barrel Applied To Hitachi EX200-5 EX270 ZX200 ZX200-3 ZX240-3 Excavator Hydraulic Pump

The Hitachi EX200-5 HPV102 hydraulic pump is a specific model of hydraulic pump used in the Hitachi EX200-5 excavator. As mentioned earlier, the EX200-5 is a hydraulic excavator manufactured by Hitachi Construction Machinery Co., Ltd.

The HPV102 hydraulic pump is a critical component of the excavator's hydraulic system, responsible for converting mechanical power from the engine into hydraulic energy. This pump is designed to provide the necessary hydraulic pressure to operate various functions of the excavator, including the movement of the boom, arm, and bucket.

The parts could be applied to below models:

CHR70 . EX125WD-5 . EX200-5 . EX200-5 JPN . EX200-5HG . EX200-5LV JAP . EX200-5X JPN. EX200-5Z JPN . EX200SS-5 . EX210H-5 . EX210H-5 JPN . EX210K-5 JPN . EX220-5 . EX220-5 JPN . EX220-5HHE . EX225USR(LC) . EX225USRK(LC) . EX230-5 . EX230H-5 JPN . EX230K-5 . EX230LC-5HHE . EX270-5 . EX280H-5 . HR1200SG . HR1200SGM . HU230-A . IZX200 . IZX200LC . MA145-5 . MA200-G . RX2300 . ZR130HC . ZR420JC . ZR900TS . ZX125W . ZX180W . ZX180W-AMS . ZX200 . ZX200-3G . ZX200-E . ZX200-HHE . ZX200-X . ZX200LC-HHE . ZX210-AMS . ZX210-HCME . ZX210H . ZX210H-3G . ZX210K . ZX210K-3G . ZX210LC-3G. ZX210N-AMS . ZX210N-HCME . ZX210W . ZX210W-AMS . ZX225US . ZX225US-E . ZX225US-HCME . ZX225USR . ZX225USR-E . ZX225USR-HCME . ZX225USRK . ZX230 . ZX230-HHE . ZX240-3G . ZX240-AMS . ZX240-HCME . ZX240H . ZX240K . ZX240LC-3G . ZX240LC-HHE . ZX250-AMS . ZX250-HCME . ZX250H-3G . ZX250K-3G . ZX250LC-3G . ZX260LCH-3G . ZX270 . ZX270-HHE . ZX280LC-AMS . ZX280LC-HCME . ZX300W . Hitachi

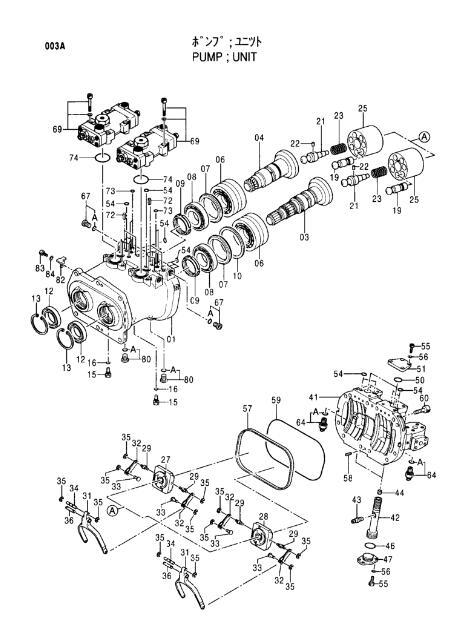

 parts diagram:

ENTIRE GROUP UNIT PUMP:

+++++++[1] -
PUMP;UNIT 9150727
01.1020327[1] -
CASING;PUMP .
03.2036807[1] -
DISC;DRIVING .
04.2036808[1] -
DISC;DRIVING .
06.4337419[2] -
BRG.;ROL. .
07.4348182[2] -
RING .
08.4337483[2] -
BRG.;ROL. .
09.4178173[2] -
NUT;BRG. .
10.4338907[1] -
RING;THRUST .
12.4333170[2] -
SEAL;OIL
13.4116290[2] -
RING;RETAINING .
15.4233165[2] -
PLUG .
16.957366[2] -
O-RING .
19.8059452[14] -
PISTON .
21.4337035[2] -
SHAFT;CENTER .
22.4198956[2] -
PIN .
23.4179181[2] -
SPRING;COMPRES. .
25.2036744[2] -
ROTOR .
27.2036795[1] -
VALVE
28.2036786[1] -
VALVE .
29.4179179[4] -
PIN
31.3075674[2] -
LINK;E .
32.9724756[4] -
LEVER .
33.4179177[4] -
PIN .
34.4179176[2] -
PIN .
35.4146370[12] -
RING;RETAINING .
36.4200227[2] -
PIN .
41.1020623[1] -
HEAD .
42.3069541[2] -
PISTON;SERVO
43.4338053[2] -
PIN .
44.4337812[2] -
SCREW;SET .
46.4355085[2] -
O-RING .
47.4338060[2] -
STOPPER .
50.4355083[2] -
O-RING .
51.4338061[2] -
STOPPER .
54.4180349[20] -
O-RING .
55.M340825[16] -
BOLT;SOCKET .
56.4514388[16] -
WASHER;SPRING .
57.3070581[1] -
RING;BACK-UP .
58.4099290[2] -
PIN;SPRING .
59.4342840[1] -
O-RING .
60.M341245[12] -
BOLT;SOCKET .
64.4355012[2] -
SENSOR;PRES. .
64A.4365826[1] -
O-RING .
67.9134110[2] -
PLUG .
67A.957366[1] -
O-RING .
69.(9152669)[2] -
REGULATOR<for transportation>
69.9150728 I[2] -
REGULATOR<for assembly of machine> 9152669 9150728
72.4515041[4] -
PIN;SPRING
73.4343074[4] -
O-RING
74.4348665[2] -
O-RING
80.9134111[2] -
PLUG
80A.4509180[1] -
O-RING
82.4252767[1] -
BRACKET
83.M340613[1] -
BOLT;SOCKET
84.4169516[1] -
WASHER;SPRING
