31N8-40072 31N8-40071BG 31N8-40070 Travel Reduction Gear Applied To Hyundai R290-7 R320-7 R305-7 Excavator Final Drive
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 31N8-40072 31N8-40071BG 31N8-40070 Travel Reduction Gear Applied To Hyundai R290-7 R320-7 R305-7 Excavator Final Drive
| Excavator spare parts name | Travel reduction gear |
| Equipment Model | R320 290 305-7 |
| Parts egory | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
The parts could be applied to below models:
EXCAVATOR R250-7 R290-7 R305-7 R320-7 Hyundai

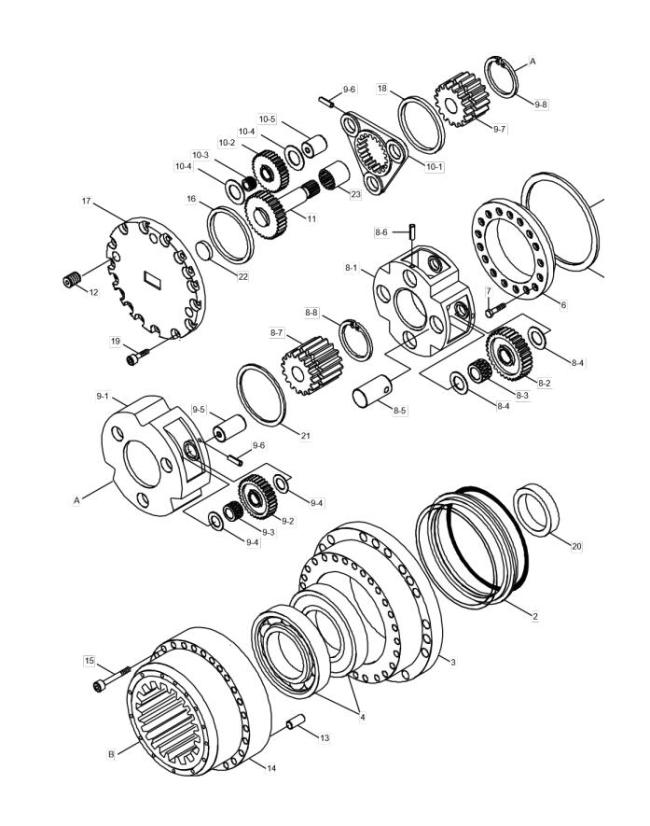

parts diagram:
| *-2 | 31N8-40070 | T/REDUCTION GEAR | 1 | #0108 - #0307 |
| *-2 | 31N8-40070BG | T/REDUCTION GEAR | 1 | #0364 |
| *-2 | 31N8-40071 | T/REDUCTION GEAR | 1 | #0308 - #0363 |
| *-2 | 31N8-40071BG | T/REDUCTION GEAR | 1 | #0364 - #0953 |
| *-2 | 31N8-40072 | T/REDUCTION GEAR | 1 | #0954 |
| 2 | XKAQ-00173 | SEAL-FLOATING | 1 | |
| 3 | XKAQ-00174 | HOUSING | 1 | |
| 4 | XKAQ-00175 | BEARING-ANGULAR | 2 | |
| 4 | XKAQ-00175-AS | BEARING-ANGULAR | 2 | #0001 |
| 5 | XKAQ-00176 | SHIM | 1 | |
| 6 | XKAQ-00177 | RETAINER | 1 | |
| 7 | XKAQ-00178 | BOLT-WRENCH | 17 | |
| 8 | XKAQ-00179 | CARRIER ASSY-NO.3 | 1 | #0216 |
| 8 | XKAQ-00398 | CARRIER ASSY-NO.3 | 1 | #0217 |
| 8-1 | XKAQ-00180 | CARRIER-NO.3 | 1 | #0216 |
| 8-1 | XKAQ-00396 | CARRIER-NO.3 | 1 | #0217 |
| 8-2 | XKAQ-00181 | GEAR-PLANETARY NO.3 | 4 | #0216 |
| 8-2 | XKAQ-00389 | GEAR-PLANETARY NO.3 | 4 | #0217 |
| 8-3 | XKAQ-00182 | NEEDLE-NO.3 | 72 | #0216 |
| 8-3 | XKAQ-00390 | NEEDLE-NO.3 | 72 | #0217 |
| 8-4 | XKAQ-00183 | WASHER-THRUST NO.3 | 8 | #0216 |
| 8-4 | XKAQ-00391 | WASHER-THRUST NO.3 | 8 | #0217 |
| 8-5 | XKAQ-00184 | PIN-NO.3 | 4 | |
| 8-6 | XKAQ-00185 | PIN-SPRING NO.3 | 4 | |
| 8-7 | XKAQ-00186 | GEAR-SUN NO.3 | 1 | |
| 8-8 | XKAQ-00187 | RING-SNAP NO.3 | 1 | |
| 8-9 | XKAQ-00651 | PIN-SPRING NO.3-1 | 4 | #0793 |
| 9 | XKAQ-00188 | CARRIER ASSY-NO.2 | 1 | #0216 |
| 9 | XKAQ-00399 | CARRIER ASSY-NO.2 | 1 | #0217 |
| 9-1 | XKAQ-00189 | CARRIER-NO.2 | 1 | #0216 |
| 9-1 | XKAQ-00397 | CARRIER-NO.2 | 1 | #0217 |
| 9-2 | XKAQ-00190 | GEAR-PLANETARY NO.2 | 3 | #0216 |
| 9-2 | XKAQ-00392 | GEAR-PLANETERY NO.2 | 3 | #0217 |
| 9-3 | XKAQ-00191 | NEEDLE-NO.2 | 45 | #0216 |
| 9-3 | XKAQ-00393 | NEEDLE-NO.2 | 45 | #0217 |
| 9-4 | XKAQ-00192 | WASHER-THRUST NO.2 | 6 | #0216 |
| 9-4 | XKAQ-00394 | WASHER-THRUST NO.2 | 6 | #0217 |
| 9-5 | XKAQ-00193 | PIN-NO.2 | 3 | |
| 9-6 | XKAQ-00194 | PIN-SPRING NO.2 | 6 | |
| 9-7 | XKAQ-00195 | GEAR-SUN NO.2 | 1 | |
| 9-8 | XKAQ-00196 | RING-SNAP NO.2 | 1 | |
| 9-9 | XKAQ-00650 | PIN-SRPING NO.2-1 | 6 | #0793 |
| 10 | XKAQ-00197 | CARRIER ASSY-NO.1 | 1 | #0216 |
| 10 | XKAQ-00400 | CARRIER ASSY-NO.1 | 1 | #0217 |
| 10-1 | XKAQ-00198 | CARRIER-NO.1 | 1 | |
| 10-2 | XKAQ-00199 | PLANETARY GEAR-NO.1 | 3 | |
| 10-3 | XKAQ-00200 | BEARING-NEEDLE | 3 | |
| 10-4 | XKAQ-00201 | WASHER-THRUST NO.1 | 6 | #0216 |
| 10-4 | XKAQ-00395 | WASHER-THRUST NO.1 | 6 | #0217 |
| 10-5 | XKAQ-00202 | PIN-NO.1 | 3 | |
| 11 | XKAQ-00203 | GEAR-SUN NO.1 | 1 | |
| 12 | XKAQ-00204 | PLUG | 3 | |
| 13 | XKAQ-00205 | PIN-LOCK | 4 | |
| 14 | XKAQ-00206 | GEAR-RING | 1 | #0953 |
| 14 | XKAQ-00762 | GEAR-RING | 1 | #0954 |
| 15 | XKAQ-00207 | BOLT-WRENCH | 24 | |
| 16 | XKAQ-00208 | RING-THRUST | 1 | |
| 17 | XKAQ-00209 | COVER | 1 | |
| 18 | XKAQ-00210 | 1RING-THRUST NO.2 | AR | |
| 19 | XKAQ-00211 | BOLT-WRENCH | 16 | |
| 20 | XKAQ-00212 | MOTOR-RING | 1 | |
| 21 | XKAQ-00213 | RING-THRUST NO.3 | 1 | |
| 22 | XKAQ-00214 | PAD | 1 | |
| 23 | XKAQ-00215 | COUPLING | 1 | |
| N | NOT SUPPLIED PARTS | 1 |
- Advantage
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* rust
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
