215-3249 2153249 C9 Engine Fuel Injector Harness For 336D Excavator Electric Parts
- Excavator Parts C9 215-3249 Engine Harness assembly Applied To 330C 330D 336D
- Specifiion
| Excavator spare parts name | C9 ENGINE WIRE HARNESS |
| Equipment Model | E330C E330D E336D |
| Parts egory | excavator ENGINE spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- The Harness could be applied to below models:
CHALLENGER MTC735 .
EXCAVATOR 330C . 330C FM . 330C L . 330C MH . 330D . 330D FM . 330D L . 330D LN . 330D MH . 336D . 336D L . 336D LN . 340D L . M330D .
GENERATOR SET C9 .
INDUSTRIAL ENGINE C-9 . C9 .
LANDFILL COMPACTOR 816F II .
MARINE ENGINE C9 .
MOBILE HYD POWER UNIT 330C . 330D . 330D L . 336D L .
MOTOR GRADER 12H . 140M . 140M 2 . 160M .
PETROLEUM ENGINE C9 .
PETROLEUM PACKAGE CX31-C9I .
PETROLEUM TRANSMISSION TH31-E61 .
SOIL COMPACTOR 815F II .
TRACK FELLER BUNCHER 2290 . 2390 . 2391 . 2491 . 2590 . 511 . 521 . 521B . 522 . 522B . 532 . 541 . 541 2 . 551 . 552 . 552 2 . TK711 . TK721 . TK722 . TK732 . TK741 . TK751 . TK752 .
TRACK LOADER 973C . 973D .
TRACK-TYPE TRACTOR D6R . D6R II . D6R III . D6R STD . D6T . D7R XR .
TRUCK ENGINE C-9 . C9 .
WHEEL DOZER 814F II .
WHEEL SCRAPER 627G . 637D . 637G .
WHEEL TRACTOR

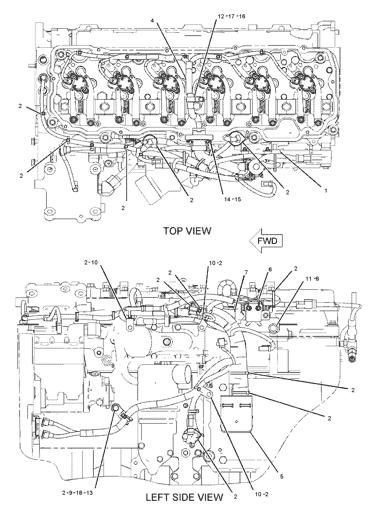

- parts diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2K-3374 | [1] | WASHER (10.3X31.8X12.7-MM THK) | |
| 2 | 3S-2093 C | [15] | STRAP-CABLE | |
| 4 | 215-3249 | [1] | HARNESS AS-ENGINE (UNIT INJECTOR) | |
| 5 | 243-2318 | [1] | HARNESS AS-CONTROL (ELECTRONIC CONTROL MODULE) | |
| 3S-2093 | [3] | STRAP-CABLE | ||
| 221-2319 | [1] | HARNESS AS-ENGINE (ELECTRONIC CONTROL)(ELECTRONIC CONTROL MODULE) | ||
| 3S-2093 | [2] | STRAP-CABLE | ||
| 8T-8737 | [32] | PLUG-SEAL | ||
| 102-8803 | [1] | KIT-RECEPTACLE (3-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 155-2270 | [5] | KIT-CONNECTING PLUG (2-PIN) | ||
| (EACH INCLUDES PLUG AS & WEDGE) | ||||
| 155-2260 | [1] | KIT-CONNECTING PLUG (3-PIN) | ||
| (INCLUDES PLUG AS & WEDGE) | ||||
| 243-2317 | [1] | HARNESS AS-SENSOR (FUEL SENSOR) | ||
| 102-8803 | [2] | KIT-RECEPTACLE (3-PIN) | ||
| (EACH INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 155-2260 | [1] | KIT-CONNECTING PLUG (3-PIN) | ||
| (INCLUDES PLUG AS & WEDGE) | ||||
| 6 | 223-4453 Y | [1] | SWITCH GP-MAGNETIC (24-VOLT)(AIR INLET HEATER) | |
| 7 | 236-6235 | [1] | CABLE AS | |
| 8 | 3E-4353 | [1] | WASHER-HARD (11X25X3-MM THK) | |
| 9 | 4P-7581 | [1] | CLIP (LADDER) | |
| 10 | 4P-8134 | [3] | CLIP (LADDER) | |
| 11 | 6V-3822 M | [1] | BOLT (M10X1.5X35-MM) | |
| 12 | 6V-4369 | [1] | CLIP | |
| 13 | 6V-5215 M | [1] | BOLT (M8X1.25X16-MM) | |
| 14 | 7I-2272 M | [2] | BOLT (M5X0.8X12-MM) | |
| 15 | 8T-0328 | [2] | WASHER-HARD (5.5X10X1-MM THK) | |
| 16 | 8T-4205 | [1] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 17 | 8T-5451 M | [1] | BOLT (M6X1X12-MM) | |
| 18 | 9M-1974 | [1] | WASHER-HARD (8.8X16X2-MM THK) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
- Description
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Appliions:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
