306-8610 3068610 320D Excavator External Chassis Wire Harness
- E320D 320D 323D Excavator Parts 306-8610 External Chassis Wire Harness
- Specifiion
| Excavator spare parts name | CHASSIS HARNESS |
| Equipment Model | E320D |
| Parts egory | excavator electronic spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |

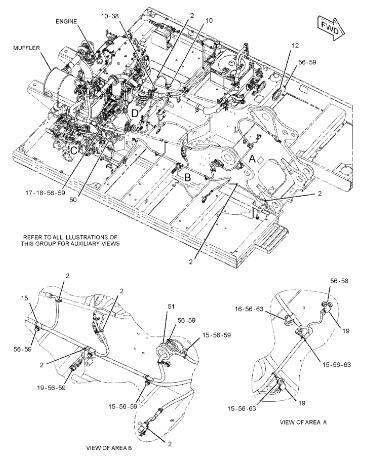

- parts diagram
1.2G-8767[2] -
WASHER (10.5X60X3-MM THK)
2.3S-2093 C[38] -
STRAP-CABLE
3.3T-5760[2] -
BATTERY GP (12-VOLT, 750-CCA)
4.306-8401[1] -
GROMMET
5.5I-8270[1] -
COVER-BATTERY
6.5I-9368[1] -
SPACER (9.24X13.72X20.5-MM THK)
7.6W-6005[1] -
HOLD-DOWN-BATTERY
8.7I-2673[4] -
STRAP-CABLE
9.7K-1181[15] -
STRAP-CABLE
10.7Y-5456[2] -
GROMMET
11.111-4836[11] -
CLIP
12.111-4837[12] -
CLIP
13.111-4838[13] -
CLIP
14.111-4839[13] -
STRAP
15.116-0118 C[11] -
CLIP
16.132-1805[1] -
STRAP AS-GROUND
17.132-1806[1] -
STRAP AS-GROUND
18.170-6929[1] -
CABLE AS
5P-0761 E-
CABLE (00-GA, RED)(31-CM)
9G-0002[1] -
COVER AS-TERMINAL (RED)
9G-0005[1] -
COVER AS-TERMINAL (BLACK)
8T-9756[1] -
TERMINAL AS (POSITIVE)
8C-5918[1] -
TERMINAL AS (NEGATIVE)
(EACH TERMINAL AS INCLUDES)
1M-6119[1] -
BOLT (5/16-18X1.375-IN)
1M-6120[1] -
NUT (5/16-18-THD)
19.170-9336[1] -
BRACKET AS
20.183-1049[1] -
BRACKET
21.231-1827[1] -
CABLE AS
1S-7252[1] -
TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
5P-0747 E-
CABLE (00-GA, BLACK)(23-CM)
9G-0003[1] -
COVER AS-TERMINAL (BLACK)
9G-8909[1] -
COVER-TERMINAL (BLACK)
8T-9757[1] -
TERMINAL AS-BATTERY (NEGATIVE)
1M-6119[1] -
BOLT (5/16-18X1.375-IN)
1M-6120[1] -
NUT (5/16-18-THD)
22.238-2501[1] -
KNOB
23.238-2528[1] -
ROD
24.251-0467[1] -
BRACKET AS
25.259-5267[1] -
BRACKET AS
26.259-5317[1] -
BRACKET AS
27.306-8610 C[1] -
HARNESS AS-CHASSIS
28.291-7591[1] -
CABLE AS
1S-7252[1] -
TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
5P-0761 E-
CABLE (00-GA, RED)(327-CM)
9G-0004[1] -
COVER AS-TERMINAL (RED)
8N-0869[1] -
COVER-TERMINAL (RED)
8C-5917[1] -
TERMINAL AS-BATTERY (POSITIVE)
1M-6119[1] -
BOLT (5/16-18X1.375-IN)
1M-6120[1] -
NUT (5/16-18-THD)
29.291-7593[1] -
BRACKET AS
30.085-7329[2] -
SPACER (9X19X30-MM THK)
31.091-9035[1] -
SPACER (11X25X20-MM THK)
32.9X-8256[6] -
WASHER (6.6X12X2-MM THK)
33.132-5789[2] -
CLIP
34.4K-8864[1] -
CLIP
35.4P-7428[1] -
CLIP
36.4P-7581[4] -
CLIP
37.5C-7261 M[1] -
NUT (M8X1.25-THD)
38.5C-7883 M[4] -
BOLT-SOCKET HEAD (M6X1X16-MM)
39.5I-3878[1] -
GROMMET
40.5P-4116[5] -
WASHER-HARD (8.8X20.5X2-MM THK)
41.6G-2256[2] -
CLAMP
42.6G-2263[4] -
SPACER (10.5X19X28.5-MM THK)
43.6K-8178[4] -
CLIP
44.7X-0818 M[2] -
BOLT (M8X1.25X45-MM)
45.7X-2533 M[1] -
BOLT (M6X1X35-MM)
46.7X-2619 M[1] -
BOLT (M6X1X10-MM)
47.7X-2621 M[2] -
BOLT (M10X1.5X12-MM)
48.7Y-1924[2] -
SPACER (9X19X23-MM THK)
49.7Y-5226 M[1] -
NUT (M5X0.8-THD)
50.7Y-8165[1] -
GROMMET
51.7Y-8167[1] -
GROMMET
52.8J-1256[1] -
CLIP
53.8M-2770[1] -
CLIP
54.8T-0286 M[1] -
BOLT (M5X0.8X8-MM)
55.8T-0328[2] -
WASHER-HARD (5.5X10X1-MM THK)
56.8T-4121[60] -
WASHER-HARD (11X21X2.5-MM THK)
57.8T-4133 M[1] -
NUT (M10X1.5-THD)
58.8T-4136 M[10] -
BOLT (M10X1.5X25-MM)
59.8T-4137 M[36] -
BOLT (M10X1.5X20-MM)
60.8T-4182 M[2] -
BOLT (M10X1.5X45-MM)
61.8T-4185 M[2] -
BOLT (M10X1.5X50-MM)
62.8T-4191 M[3] -
BOLT (M10X1.5X16-MM)
63.8T-4195 M[5] -
BOLT (M10X1.5X30-MM)
64.8T-4196 M[1] -
BOLT (M10X1.5X35-MM)
65.8T-4199 M[1] -
BOLT (M8X1.25X12-MM)
66.8T-4226[1] -
WASHER-PLATED (10.5X45X3-MM THK)
67.8T-6466 M[1] -
BOLT (M10X1.5X60-MM)
68.8T-6912 M[2] -
BOLT (M8X1.25X50-MM)
69.299-2767 C[1] -
WIRE AS
- Description
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Appliions:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
