198-2713 1982713 C7 Engine Wiring Harness For 324D Excavator Electrical Parts
- E325D 325D 329D Excavator Parts 198-2713 C7 Engine Wiring Harness
- Specifiion
| Excavator spare parts name | ENGINE HARNESS |
| Equipment Model | E325D |
| Parts egory | excavator electronic spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
ASPHALT PAVER AP-1055D . AP-755 . BG-2455D . BG-260D .
COLD PLANER PM-102 .
EXCAVATOR 324D . 324D FM . 324D FM LL . 324D L . 324D LN . 325D . 325D FM . 325D FM LL . 325D L . 325D MH . 328D LCR . 329D . 329D L . 329D LN . M325D L MH . M325D MH .
FORWARDER 584 .
INDUSTRIAL ENGINE C7 .
INTEGRATED TOOLCARRIER IT62H .
MOBILE HYD POWER UNIT 324D LN . 325D . 325D L . 329D L .
MOTOR GRADER 120K . 12K . 140G . 140K . 140K 2 . 140M . 160K .
PETROLEUM ENGINE C7 .
SOIL COMPACTOR 815B .
WHEEL FELLER BUNCHER 573 .
WHEEL LOADER 950H . 962H .
WHEEL SKIDDER 525C . 535C . 545C .

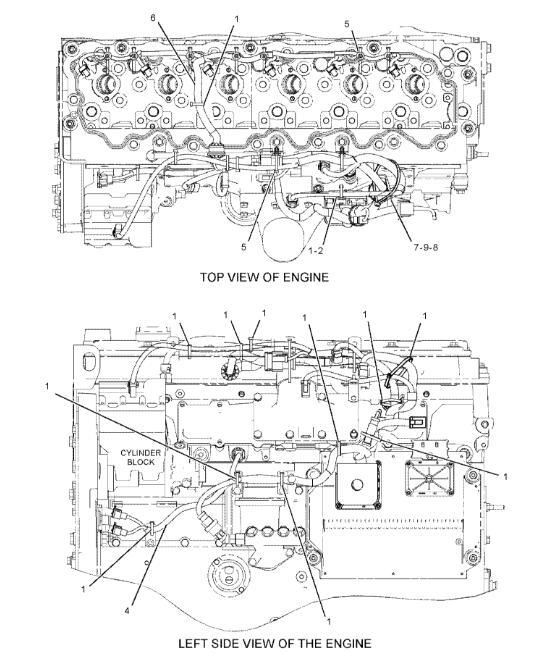

- parts diagram
1.3S-2093[12] -
STRAP-CABLE
2.4P-5918[1] -
CLIP
4.198-2713[1] -
HARNESS AS-ENGINE (ELECTRONIC CONTROL MODULE)
305-5362[4] -
TERMINAL AS (18-GA)
180-9340[60] -
SOCKET-CONNECTOR (14-GA TO 18-GA)
9X-3401[15] -
PIN-CONNECTOR (16-GA TO 18-GA)
-OR-
126-1767[15] -
PIN-CONNECTOR (14-GA TO 16-GA)
8T-8737[77] -
PLUG-SEAL
119-3662 E-
TUBE-HEAT SHRINK (10.85-MM DIA)(33-CM)
125-7874 E-
TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
125-7875 E-
TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
264-5732[1] -
PLUG AS-CONNECTOR (120-PIN)
211-6807[1] -
COVER-CONNECTOR
155-2270[5] -
KIT-CONNECTING PLUG (2-PIN)
155-2260[3] -
KIT-CONNECTING PLUG (3-PIN)
155-2265[1] -
KIT-CONNECTING PLUG (8-PIN)
(EACH PLUG KIT INCLUDES PLUG AS, & WEDGE)
102-8802[1] -
KIT-RECEPTACLE (2-PIN)
102-8803[1] -
KIT-RECEPTACLE (3-PIN)
102-8801[1] -
KIT-RECEPTACLE (12-PIN)
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
111-2416[1] -
PLUG AS-CONNECTOR (2-PIN)
100-3320[1] -
PLUG AS-CONNECTOR (2-PIN)
5.206-1345[9] -
STRAP-CABLE
6.222-5917[1] -
HARNESS AS-ENGINE (FUEL INJECTION)
6N-7523[1] -
WASHER (6.48X11.9X1.57-MM THK)
135-5975[1] -
GROMMET-WIRING
155-2255[1] -
KIT-CONNECTING PLUG (12-PIN)
(INCLUDES PLUG AS & WEDGE)
7.4P-8134[1] -
CLIP
8.6V-2317 M[1] -
BOLT (M8X1.25X30-MM)
9.9M-1974[1] -
WASHER-HARD (8.8X16X2-MM THK)
- Description
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Appliions:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
