C-9 C9 419-0841 4190841 Engine Wiring Harness For 340D2 Excavator Electric Parts
- E330D 330C 330D 336D Excavator Parts 419-0841 C-9 C9 Engine Wiring Harness
- Specifiion
| Excavator spare parts name | ENGINE HARNESS |
| Equipment Model | E330D |
| Parts egory | excavator electronic spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR 330C . 330C FM . 330C L . 330C MH . 330D FM . 330D L . 330D MH . 336D . 336D L . 336D LN . 336D2 . 336D2 L . 340D L . 340D2 L .
GENERATOR SET C9 .
INDUSTRIAL ENGINE C-9 . C9 .
LANDFILL COMPACTOR 816F II .
MARINE ENGINE C9 .
MOBILE HYD POWER UNIT 330C . 330D . 330D L . 336D L .
MOTOR GRADER 140M . 140M 2 . 160M . 160M 2 .
PETROLEUM ENGINE C9 .
SITE PREP TRACTOR 586C .
SOIL COMPACTOR 815F II .
TRACK FELLER BUNCHER 2290 . 2390 . 2391 . 2491 . 2590 . 511 . 521 . 521B . 522 . 522B . 532 . 541 . 541 2 . 551 . 552 . 552 2 . TK711 . TK721 . TK722 . TK732 . TK752 .
TRACK LOADER 973D .
TRACK-TYPE TRACTOR D6R . D6R II . D6R III . D6R STD . D6T .
WHEEL DOZER 814F II .
WHEEL SCRAPER 627G . 637D . 637E . 637G .
WHEEL TRACTOR

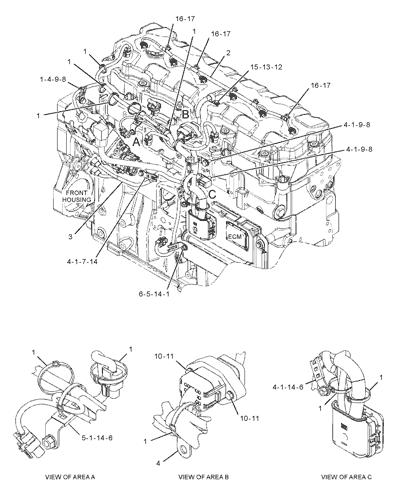

- parts diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3S-2093 | [17] | STRAP-CABLE | |
| 2 | 419-0841 Y | [1] | HARNESS AS-ENGINE (UNIT INJECTOR) | |
| 3 | 323-9140 Y | [1] | HARNESS AS-ENGINE (SPEED SENSOR) | |
| 4 | 4P-7581 | [6] | CLIP (LADDER) | |
| 5 | 4P-8134 | [2] | CLIP (LADDER) | |
| 6 | 5P-7970 M | [3] | NUT (M8X1.25-THD) | |
| 7 | 6V-5217 M | [1] | BOLT (M8X1.25X20-MM) | |
| 8 | 6V-5839 | [3] | WASHER (11X21X2.5-MM THK) | |
| 9 | 6V-6317 M | [3] | BOLT (M10X1.5X20-MM) | |
| 10 | 7I-2272 M | [2] | BOLT (M5X0.8X12-MM) | |
| 11 | 8T-0328 | [2] | WASHER-HARD (5.5X10X1-MM THK) | |
| 12 | 8T-4205 | [1] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 13 | 8T-5451 M | [1] | BOLT (M6X1X12-MM) | |
| 14 | 9M-1974 | [4] | WASHER-HARD (8.8X16X2-MM THK) | |
| 15 | 6V-4369 | [1] | CLIP | |
| 16 | 440-0881 M | [5] | BOLT-SOCKET HEAD (M8X1.25-THD) | |
| 17 | 439-4571 | [5] | CLIP (LOOP) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
- Description
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Appliions:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
