HPV102 Excavator Hydraulic Pump Rotor & Piston Shoe 2036744 8059452 For EX200-5 EX220-5 EX270 ZX200-3
- HPV102 Hydraulic Pump Rotor & Piston Shoe 2036744 8059452 Used For EX200-5 EX220-5 EX270 ZX200-3
- Spec Sheet
| Excavator spare parts name | hydraulic pump rotor, piston barrel, piston block |
| Equipment Model | EX200-5 ZX200-3 HPV102 |
| Parts egory | Excavator hydraulic pump parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
CHR70 . EX125WD-5 . EX200-5 . EX200-5 JPN . EX200-5HG . EX200-5LV JAP . EX200-5X JPN. EX200-5Z JPN . EX200SS-5 . EX210H-5 . EX210H-5 JPN . EX210K-5 JPN . EX220-5 . EX220-5 JPN . EX220-5HHE . EX225USR(LC) . EX225USRK(LC) . EX230-5 . EX230H-5 JPN . EX230K-5 . EX230LC-5HHE . EX270-5 . EX280H-5 . HR1200SG . HR1200SGM . HU230-A . IZX200 . IZX200LC . MA145-5 . MA200-G . RX2300 . ZR130HC . ZR420JC . ZR900TS . ZX125W . ZX180W . ZX180W-AMS . ZX200 . ZX200-3G . ZX200-E . ZX200-HHE . ZX200-X . ZX200LC-HHE . ZX210-AMS . ZX210-HCME . ZX210H . ZX210H-3G . ZX210K . ZX210K-3G . ZX210LC-3G. ZX210N-AMS . ZX210N-HCME . ZX210W . ZX210W-AMS . ZX225US . ZX225US-E . ZX225US-HCME . ZX225USR . ZX225USR-E . ZX225USR-HCME . ZX225USRK . ZX230 . ZX230-HHE . ZX240-3G . ZX240-AMS . ZX240-HCME . ZX240H . ZX240K . ZX240LC-3G . ZX240LC-HHE . ZX250-AMS . ZX250-HCME . ZX250H-3G . ZX250K-3G . ZX250LC-3G . ZX260LCH-3G . ZX270 . ZX270-HHE . ZX280LC-AMS . ZX280LC-HCME . ZX300W . Hitachi

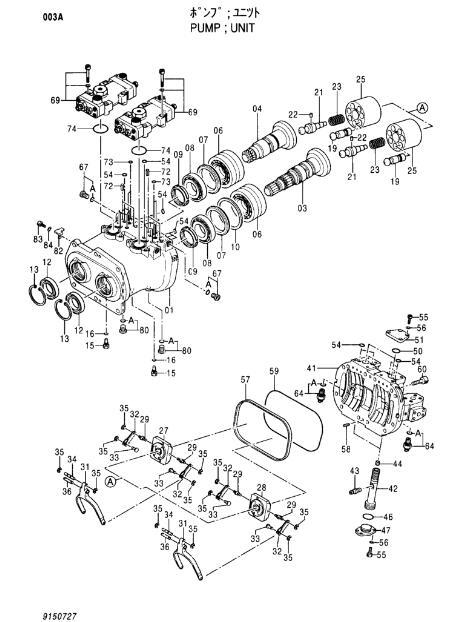

- Parts Diagram
ENTIRE GROUP UNIT PUMP:
PUMP;UNIT 9150727
01.1020327[1] -
CASING;PUMP
03.2036807[1] -
DISC;DRIVING
04.2036808[1] -
DISC;DRIVING
06.4337419[2] -
BRG.;ROL.
07.4348182[2] -
RING
08.4337483[2] -
BRG.;ROL.
09.4178173[2] -
NUT;BRG.
10.4338907[1] -
RING;THRUST
12.4333170[2] -
SEAL;OIL
13.4116290[2] -
RING;RETAINING
15.4233165[2] -
PLUG
16.957366[2] -
O-RING
19.8059452[14] -
PISTON
21.4337035[2] -
SHAFT;CENTER
22.4198956[2] -
PIN
23.4179181[2] -
SPRING;COMPRES.
25.2036744[2] -
ROTOR
27.2036795[1] -
VALVE
28.2036786[1] -
VALVE
29.4179179[4] -
PIN
31.3075674[2] -
LINK;E
32.9724756[4] -
LEVER
33.4179177[4] -
PIN
34.4179176[2] -
PIN
35.4146370[12] -
RING;RETAINING
36.4200227[2] -
PIN
41.1020623[1] -
HEAD
42.3069541[2] -
PISTON;SERVO
43.4338053[2] -
PIN
44.4337812[2] -
SCREW;SET
46.4355085[2] -
O-RING
47.4338060[2] -
STOPPER
50.4355083[2] -
O-RING
51.4338061[2] -
STOPPER
54.4180349[20] -
O-RING
55.M340825[16] -
BOLT;SOCKET
56.4514388[16] -
WASHER;SPRING
57.3070581[1] -
RING;BACK-UP
58.4099290[2] -
PIN;SPRING
59.4342840[1] -
O-RING
60.M341245[12] -
BOLT;SOCKET
64.4355012[2] -
SENSOR;PRES.
64A.4365826[1] -
O-RING
67.9134110[2] -
PLUG
67A.957366[1] -
O-RING
69.(9152669)[2] -
REGULATOR<for transportation>
69.9150728 I[2] -
REGULATOR<for assembly of machine> 9152669 9150728
72.4515041[4] -
PIN;SPRING
73.4343074[4] -
O-RING
74.4348665[2] -
O-RING
80.9134111[2] -
PLUG
80A.4509180[1] -
O-RING
82.4252767[1] -
BRACKET
83.M340613[1] -
BOLT;SOCKET
84.4169516[1] -
WASHER;SPRING
- Description
Hydraulic pumps are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump parts are supplied strictly according to the genuine parts alog.
3. All the pump components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
