9J-4936 9J-2417 Hydraulic Pump Piston Assembly & Barrel Assy for 14G 225
- 9J-4936 9J-2417 Hydraulic Pump Piston Assembly & Barrel Assy Applied To 14G 225
- Spec Sheet
| Excavator spare parts name | Pump piston barrel assembly |
| Equipment Model | 12G 225 |
| Parts egory | Excavator hydraulic pump parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR 215 . 225 . 235D . 245 . 245B . 245D .
LOGGER 227 .
MOTOR GRADER 14G . 16G .
TRACK LOADER 943 .
WHEEL LOADER 990 . 990 II .

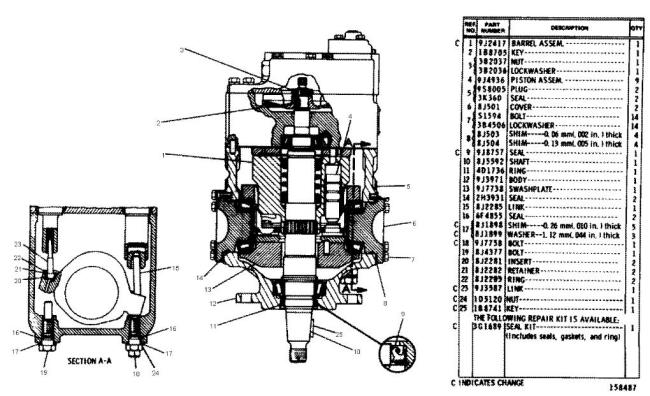

- Parts Diagram
ENTIRE GROUP GEAR PUMP:
1.9J-2417 RC[1] -
BARREL ASSEM.
2.1B-8705[1] -
KEY
3.3B-2037[1] -
NUT
3B-2036[1] -
LOCKWASHER
4.9J-4936[9] -
PISTON ASSEM.
5.9S-8005[2] -
PLUG
3K-0360[2] -
SEAL
6.8J-0501[2] -
COVER
7.0S-1594[14] -
BOLT
3B-4506[14] -
LOCKWASHER
8.8J-0503[4] -
SHIM 0.06 mm(.002 in.) thick
8J-0504[4] -
SHIM 0.13 mm(.005 in.) thick
9.9J-8757 C[1] -
SEAL
10.8J-5592[1] -
SHAFT
11.4D-1736[1] -
RING
12.9J-3971[1] -
BODY
13.9J-7738[1] -
SWASHPLATE
14.2H-3931[2] -
SEAL
15.8J-2285[1] -
LINK
16.6F-4855[2] -
SEAL
17.8J-1898 C[5] -
SHIM 0.26 mm(.010 in.) thick
8J-1899 C[3] -
WASHER 1.12 mm(.044 in.) thick
18.9J-7758 C[1] -
BOLT
19.8J-4377[1] -
BOLT
20.8J-2281[2] -
INSERT
21.8J-2282[2] -
RETAINER
22.8J-2283[2] -
RING
23.9J-3587 C[1] -
LINK
24.1D-5120 C[1] -
NUT
25.1B-8741 C[1] -
KEY
THE FOLLOWING REPAIR KIT IS AVAILABLE:
3G-1689 C[1] -
SEAL KIT
- Description
Hydraulic pumps are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump parts are supplied strictly according to the genuine parts alog.
3. All the pump components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
