8971256011 8-97125601-1 Overheat Warning Switch 6BG1 ISUZU Engine Parts For Hitachi EX100 EX120 ZX110 ZX200
- 8971256011 8-97125601-1 Overheat Warning Switch 6BG1 ISUZU Engine Parts Used For Hitachi EX100 EX120 ZX110 ZX200
- Spec Sheet
| Excavator spare parts name | overheat warning switch |
| Equipment Model | EX100 EX120 EX200 ZX120 ZX200 |
| Parts egory | Excavator engine parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
The Isuzu 6BG1 is a well-known diesel engine used in various appliions, including construction equipment, industrial machinery, and marine vessels. The water temperature sensor (also known as the coolant temperature sensor) is an essential component of the engine's cooling system. It is responsible for monitoring the temperature of the engine coolant and providing this information to the engine control unit (ECU) or gauge cluster.
Key functions and features of the Isuzu 6BG1 water temperature sensor include:
Temperature Sensing: The sensor is in direct contact with the engine coolant, allowing it to measure the temperature of the coolant as it circulates through the engine.
Electrical Signal Output: Based on the coolant temperature, the sensor sends an electrical signal to the engine control unit (ECU) or gauge cluster, providing crucial temperature data.
Engine Performance: The coolant temperature information is used by the engine's computer to adjust fuel injection timing, air-fuel mixture, and other engine parameters for optimal performance and fuel efficiency.
Overheating Protection: The water temperature sensor plays a critical role in preventing engine overheating. If the coolant temperature rises above a safe threshold, the ECU can trigger warning lights or reduce engine power to protect the engine from damage.
Temperature Gauge Reading: The sensor's data is also used to display the engine coolant temperature on the dashboard gauge cluster, allowing the operator to monitor the engine's operating temperature.
As with any sensor, the Isuzu 6BG1 water temperature sensor should be periodically inspected and replaced if it malfunctions or shows signs of failure. Accurate temperature readings are vital to the engine's health and performance.
- Appliion

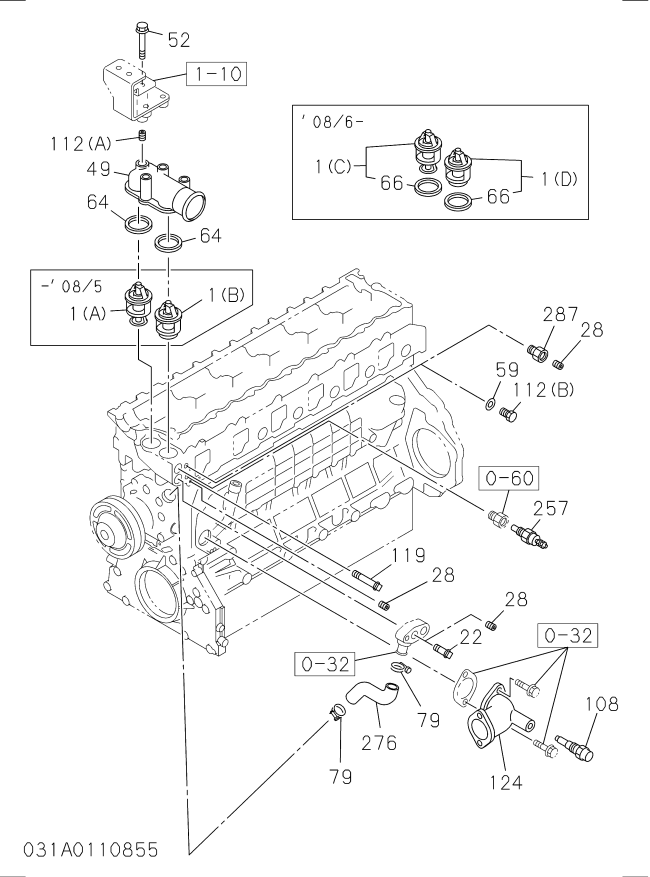

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 001(A). | 8943973100 | [1] | THERMOSTAT | 82 ℃ |
| 001(B). | 8943928170 | [1] | THERMOSTAT | 82 ℃ |
| 001(C). | 8976020482 | [1] | THERMOSTAT | 82 ℃ |
| 001(D). | 8976023931 | [1] | THERMOSTAT | 82 ℃ |
| 22 | 9099036310 | [1] | PIPE; HTR,RETURN | PT3/8 & OD=18.3 L=47 |
| 49 | 8943905201 | [1] | PIPE; WATER OUTLET | |
| 52 | 280808800 | [1] | BOLT; JOINT,THERMOSTAT | M8X80 FLANGE |
| 52 | 280908000 | [3] | BOLT; JOINT,THERMOSTAT | M8X100 FLANGE |
| 52 | 280508800 | [1] | BOLT; JOINT,THERMOSTAT | M8X80 FLANGE |
| 52 | 280608000 | [3] | BOLT; JOINT,THERMOSTAT | M8X100 FLANGE |
| 59 | 1096300860 | [1] | GASKET; PLUG | C ID=16.2 OD=22<BR>ALSO INCLUDED IN GASKET SET(ENGINE) |
| 59 | 1096301110 | [1] | GASKET; PLUG | OD=26<BR>ALSO INCLUDED IN GASKET SET(ENGINE) |
| 59 | 1096301110 | [1] | GASKET; PLUG | OD=26<BR>ALSO INCLUDED IN GASKET SET(ENGINE) |
| 64 | 8943704800 | [2] | GASKET; OUTLET PIPE TO HSG | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 66 | 8973007930 | [2] | GASKET; THERMOSTAT HSG | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 79 | 1097040770 | [2] | CLIP; RUBBER HOSE | ID=44 |
| 108 | 1812297530 | [1] | CAP; RUBBER,CONNECTOR | |
| 112(A). | 8943905270 | [1] | PLUG | 1/2-14NPTF |
| 112(B). | 9992023160 | [1] | PLUG | M16X12 |
| 112(B). | 9096610050 | [1] | PLUG | M16X8 |
| 119 | 1096605041 | [1] | PIPE; HTR | |
| 124 | 1137118062 | [1] | DUCT; WATER | |
| 257 | 8971256011 | [1] | SWITCH; WARNING,OVER HEAT | |
| 257 | 8971256011 | [1] | SWITCH; WARNING,OVER HEAT | |
| 276 | 1093610351 | [1] | HOSE; BYPASS |
- Description
Engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the engine parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of engine parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
