200-3490 227-6045 Hub Housing Gear For 345C 345D 349D Excavator Final Drive Parts
- 200-3490 227-6045 Hub Housing Gear Used For 345C 345D 349D Excavator Final Drive Parts
- Spec Sheet
| Excavator spare parts name | final drive hub housing |
| Equipment Model | 345C 345D 349D |
| Parts egory | Excavator final drive parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR 330D L 330D MH 345C 345C L 345C MH 345D 345D L 345D L VG 349D 349D L
MOBILE HYD POWER UNIT 345C L

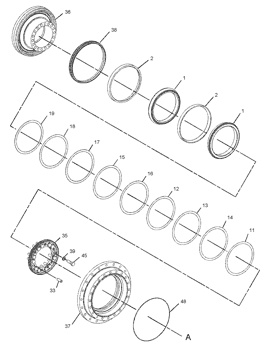

- Parts Diagram
| Pos. | Part No | QTY | Parts name | Comments |
| 1 | 2R-0524 | [2] | CONE-BEARING | |
| 2 | 2R-0525 | [2] | CUP-BEARING | |
| 3 | 4I-7576 | [14] | WASHER (66.3X104X3-MM THK) | |
| 4 | 7M-8485 | [2] | SEAL-O-RING | |
| 5 | 7Y-0661 | [3] | SHAFT-PLANETARY | |
| 6 | 7Y-0662 | [4] | SHAFT-PLANETARY | |
| 7 | 199-4583 | [11] | BEARING AS | |
| 8 | 7Y-0808 B | [1] | SHIM (1.6-MM THK) | |
| 9 | 7Y-1469 | [1] | COUPLING | |
| 10 | 7Y-1470 | [1] | GEAR-SUN (21-TEETH) | |
| 11 | 7Y-1472 B | [1] | SHIM (0.15-MM THK) | |
| 12 | 7Y-1473 B | [1] | SHIM (0.3-MM THK) | |
| 13 | 7Y-1474 B | [1] | SHIM (0.4-MM THK) | |
| 14 | 7Y-1475 B | [1] | SHIM (0.5-MM THK) | |
| 15 | 7Y-1476 B | [1] | SHIM (0.6-MM THK) | |
| 16 | 7Y-1477 B | [1] | SHIM (0.7-MM THK) | |
| 17 | 7Y-1478 B | [1] | SHIM (0.8-MM THK) | |
| 18 | 7Y-1479 B | [1] | SHIM (1-MM THK) | |
| 19 | 7Y-1480 B | [1] | SHIM (1.6-MM THK) | |
| 20 | 7Y-1482 | [1] | CARRIER-PLANETARY | |
| 21 | 7Y-1483 | [1] | GEAR-RING (63-TEETH) | |
| 22 | 7Y-1485 | [1] | CARRIER-PLANETARY | |
| 23 | 7Y-1487 | [1] | GEAR-RING (85-TEETH) | |
| 24 | 7Y-1488 | [1] | CARRIER AS | |
| 7Y-0656 | [3] | SHAFT-PLANETARY | ||
| 25 | 7Y-1491 | [1] | GEAR-SUN (21-TEETH) | |
| 26 | 7Y-1493 | [1] | SPACER (8.7X50X14-MM THK) | |
| 27 | 7Y-1495 | [3] | GEAR-PLANETARY (29-TEETH) | |
| 28 | 7Y-1498 | [1] | COVER | |
| 29 | 7Y-1499 | [3] | GEAR-PLANETARY (20-TEETH) | |
| 30 | 7Y-1504 | [4] | GEAR-PLANETARY (20-TEETH) | |
| 31 | 7Y-5235 M | [20] | BOLT (M24X3X190-MM) | |
| 32 | 110-7217 | [2] | RING-RETAINING | |
| 33 | 114-1541 | [6] | PIN-DOWEL | |
| 34 | 169-5559 | [1] | GEAR-SUN (26-TEETH) | |
| 35 | 199-4719 | [1] | GEAR-COUPLING | |
| 36 | 200-3489 | [1] | HOUSING-MOTOR | |
| 37 | 200-3490 | [1] | HOUSING-GEAR | |
| 38 | 205-9025 | [1] | SEAL GP-DUO-CONE | |
| 205-9024 | [2] | RING-TORIC | ||
| 39 | 227-6048 | [12] | WASHER (26X40X4-MM THK) | |
| 40 | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 41 | 199-4582 | [3] | BEARING AS | |
| 42 | 095-0891 | [7] | PIN-SPRING | |
| 43 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 44 | 3E-2338 | [2] | PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) | |
| 45 | 6V-8133 M | [12] | BOLT (M24X3X80-MM) | |
| 46 | 7Y-1484 | [1] | SPACER (191X221X8.5-MM THK) | |
| 47 | 7Y-1492 | [2] | SPACER (67X101.1X10-MM THK) | |
| 48 | 8C-5240 | [1] | SEAL-O-RING | |
| 49 | 8T-3957 M | [10] | BOLT-SOCKET HEAD (M12X1.75X30-MM) | |
| 50 | 8T-4167 | [20] | WASHER-HARD (26X44X4-MM THK) | |
| 51 | 8T-4240 | [3] | RING-RETAINING | |
| 52 | 1U-8846 B | SEALANT-GASKET |
- Description
Engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The reducer driving system are supplied strictly according to the genuine parts alog.
3. All the reducer driving system are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of filters that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
