20Y-06-31110 PC200-7 PC220-7 Internal Wiring Harness For Komatsu PC200 PC220 PC270 Excavator Parts
- 20Y-06-31110 PC200-7 PC220-7 Internal Wiring Harness Used For Komatsu PC200 PC220 PC270 Excavator Parts
- Specifiion
| Excavator spare parts name | Komatsu internal wiring harness |
| Equipment Model | PC200 PC210 PC220 PC230 PC270 |
| Parts egory | Komatsu excavator electrical spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATORS PC200 PC200LL PC210 PC220 PC230 PC270 PC270LL
OTHER BP500 Komatsu

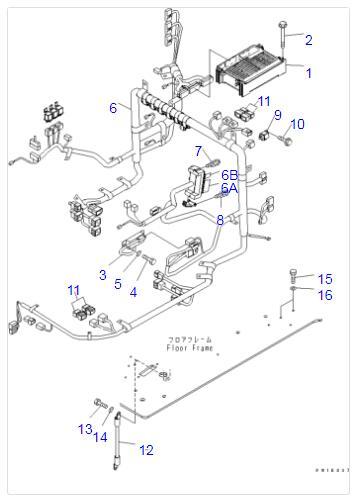

- parts diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 7835-26-1003 | [1] | CONTROLLER, GP Komatsu OEM | 2.7 kg. |
| ["SN: C70001--UP"] analogs:["7835261009", "7835261002", "7835261007", "7835261006", "7835261004", "7835261008", "7835261005"] | ||||
| 2 | 01435-00880 | [4] | BOLT Komatsu | 0.033 kg. |
| ["SN: C70001--UP"] | ||||
| 3 | 7861-94-3000 | [1] | RESISTOR Komatsu | 0.28 kg. |
| ["SN: C70001--UP"] | ||||
| 4 | 01010-80820 | [2] | BOLT Komatsu | 0.013 kg. |
| ["SN: C70001--UP"] analogs:["801014067", "0101050820", "801015086"] | ||||
| 5 | 01643-30823 | [2] | WASHER Komatsu | 0.004 kg. |
| ["SN: C70001--UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 6 | 20Y-06-31110 | [1] | WIRING HARNESS Komatsu OEM | 7.7 kg. |
| ["SN: C70001--UP"] | ||||
| 6A. | 08041-01000 | [16] | .FUSE, 10A Komatsu | 0.001 kg. |
| ["SN: C70001--UP"] analogs:["2830616190"] | ||||
| 6B. | 08041-02000 | [4] | .FUSE, 20A Komatsu | 0.001 kg. |
| ["SN: C70001--UP"] analogs:["22W0613160M", "22W0613160"] | ||||
| 7 | 01023-60620 | [2] | SCREW Komatsu | 0.008 kg. |
| ["SN: C70001--UP"] analogs:["0102370620"] | ||||
| 9 | 569-06-61960 | [1] | RELAY Komatsu OEM | 0.037 kg. |
| ["SN: C70001--UP"] | ||||
| 10 | 01435-00612 | [1] | BOLT Komatsu | 0.006 kg. |
| ["SN: C70001--UP"] | ||||
| 11 | 8233-06-3350 | [4] | DIODE Komatsu OEM | 0.022 kg. |
| ["SN: C70001--UP"] | ||||
| 12 | 08028-43030 | [1] | CABLE Komatsu | 0.24 kg. |
| ["SN: C70001--UP"] | ||||
| 13 | 01010-81020 | [1] | BOLT Komatsu | 0.161 kg. |
| ["SN: C70001--UP"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 14 | 01643-31032 | [1] | WASHER Komatsu | 0.054 kg. |
| ["SN: C70001--UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] |
- Description
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Appliions:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
