6745-81-9220 6D114 Engine Wiring Harness For Komatsu PC300-7 PC350-7 Excavator Parts
- 6745-81-9220 6D114 Engine Wiring Harness Used For Komatsu PC300-7 PC350-7 Excavator Parts
- Specifiion
| Excavator spare parts name | Komatsu engine wiring harness |
| Equipment Model | PC300-7 PC350-7 |
| Parts egory | Komatsu excavator electrical spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
ENGINES SAA6D114E
EXCAVATORS PC300LL PC350LL
WHEEL LOADERS WA430 Komatsu

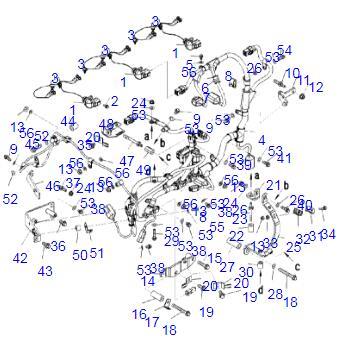

- parts diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6745-81-9210 | [3] | HARNESS, WIRING Komatsu | 0.41 kg. |
| 2 | 6732-21-4180 | [3] | BOLT Komatsu | 0.01 kg. |
| 3 | 6745-81-9390 | [8] | CLIP, WIRE RETAINING Komatsu | 0.005 kg. |
| 4 | 6745-81-9220 | [1] | HARNESS, WIRING Komatsu | 2.5 kg. |
| 5 | 6742-01-3770 | [1] | BOLT Komatsu | 0.01 kg. |
| 6 | 07095-20211 | [1] | ISOLATOR, VIBRATION Komatsu | 0.01 kg. |
| 7 | 08034-20519 | [3] | BAND Komatsu | 0.001 kg. |
| analogs:["2260611130", "885180010"] | ||||
| 8 | 6745-81-9310 | [1] | BRACE, WIRING Komatsu China | |
| 9 | 6732-71-3220 | [3] | BOLT Komatsu | 0.014 kg. |
| analogs:["0143560820"] | ||||
| 10 | 6745-81-9580 | [2] | BOLT Komatsu China | |
| 11 | 6745-81-9320 | [1] | BRACE, WIRING Komatsu China | |
| 12 | 6736-81-6170 | [2] | NUT Komatsu | 0.012 kg. |
| 13 | 01584-00605 | [6] | NUT Komatsu | 0.003 kg. |
| 14 | 6745-81-9590 | [1] | BRACE, WIRING Komatsu China | |
| 15 | 6745-81-9410 | [1] | BOLT Komatsu China | |
| 16 | 6152-51-5520 | [1] | SPACER Komatsu | 0.091 kg. |
| 17 | 08057-12010 | [1] | CLIP Komatsu China | |
| 18 | 6731-21-6220 | [2] | BOLT Komatsu | 0.054 kg. |
| 19 | 6734-71-5610 | [2] | BOLT Komatsu | 0.022 kg. |
| 20 | 08193-20010 | [3] | BRACKET, SENSOR Komatsu | 0.01 kg. |
| 21 | 6745-81-9340 | [1] | BRACE, WIRING Komatsu China | |
| 22 | 6130-12-4581 | [1] | SPACER Komatsu | 0.055 kg. |
| 23 | 6745-81-9420 | [1] | BOLT Komatsu China | |
| 24 | 6732-71-3210 | [3] | NUT Komatsu | 0.03 kg. |
| 25 | 6745-81-9350 | [1] | BRACE, WIRING Komatsu China | |
| 26 | 01643-30823 | [3] | WASHER Komatsu | 0.004 kg. |
| analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 27 | 6164-91-6290 | [1] | SPACER Komatsu China | |
| 28 | 01643-31032 | [1] | WASHER Komatsu | 0.054 kg. |
| analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 29 | 6732-61-3110 | [1] | BOLT Komatsu | 0.022 kg. |
| 30 | 6162-23-5770 | [1] | SPACER Komatsu China | |
| 31 | 6155-71-5810 | [1] | BRACE, TUBE Komatsu | 0.08 kg. |
| 32 | 6155-71-5820 | [1] | BRACE, TUBE Komatsu | 0.08 kg. |
| 33 | 01643-30623 | [1] | WASHER Komatsu | 0.002 kg. |
| analogs:["0164370623"] | ||||
| 34 | 1317 574 H1 | [1] | BOLT Komatsu China | |
| analogs:["6745819430"] | ||||
| 35 | 01011-E1035 | [1] | BOLT Komatsu | 0.093 kg. |
| analogs:["0101131035"] | ||||
| 36 | 6732-61-3140 | [1] | BOLT Komatsu | 0.02 kg. |
| 37 | 6745-81-9440 | [1] | BOLT Komatsu | 0.01 kg. |
| 38 | 6216-74-6180 | [4] | BOLT Komatsu | 0.01 kg. |
| 39 | 6731-71-6270 | [1] | BOLT Komatsu China | |
| 40 | 6732-21-6630 | [1] | BOLT Komatsu | 0.02 kg. |
| 41 | 6732-21-3120 | [1] | BOLT Komatsu | 0.01 kg. |
| analogs:["6736215310", "0143560816"] | ||||
| 42 | 6745-81-9360 | [1] | BRACE, WIRING Komatsu China | |
| 43 | 6735-71-3220 | [1] | BOLT Komatsu | 0.03 kg. |
| analogs:["0143561025"] | ||||
| 44 | 144-874-7470 | [1] | SPACER, MOUNTING Komatsu | 0.06 kg. |
| 45 | 6742-01-5504 | [1] | BOLT Komatsu China | |
| 46 | 6745-81-9370 | [1] | BRACE, WIRING Komatsu China | |
| 47 | 6745-81-9450 | [1] | BOLT Komatsu China | |
| 48 | 6745-81-9380 | [1] | BRACE, TUBE Komatsu | 0.000 kg. |
| 49 | 6745-81-9460 | [1] | NUT Komatsu China | |
| 50 | 6141-64-2560 | [1] | SPACER, MOUNTING Komatsu | 0.025 kg. |
| 51 | 08057-12008 | [1] | CLIP Komatsu | 0.013 kg. |
| 52 | 01643-21016 | [3] | WASHER Komatsu China | |
| 53 | 01643-20816 | [3] | WASHER Komatsu China | |
| 54 | 6732-21-5160 | [1] | BOLT Komatsu | 0.015 kg. |
| analogs:["0143560825"] | ||||
| 55 | 6732-61-6140 | [1] | BOLT Komatsu | 0.022 kg. |
| analogs:["0143560835"] | ||||
| 56 | 01640-20716 | [7] | WASHER Komatsu China | |
| analogs:["CUS631", "0230010820", "0230000920", "0230000916", "0230010916", "0230010920", "0230000820"] |
- Description
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Appliions:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
