424-03-21220 424-03-21202 WA420-3 WA400-3 Radiator Core For Komatsu Excavator Spare Parts
- 424-03-21220 424-03-21202 WA420-3 WA400-3 Radiator Core Used For Komatsu Excavator Spare Parts
- Spec Sheet
| Excavator spare parts name | Radiator |
| Equipment Model | WA420-3 |
| Parts egory | Excavator spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
WA420 EXCAVATOR

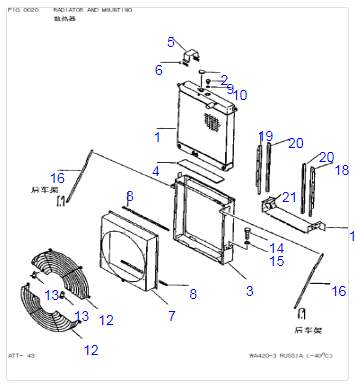

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 424-03-21202 | [1] | RADIATOR Komatsu | 187 kg. | |
| ["SN: R50001-UP"] |$2. | ||||
| 1. | 424-03-21220 | [1] | CORE ASS'Y Komatsu | 175 kg. |
| ["SN: R50001-UP"] | ||||
| 2. | 424-03-21120 | [1] | FRAME Komatsu China | |
| ["SN: R50001-UP"] | ||||
| 3. | 424-03-21150 | [2] | CLAMP Komatsu China | |
| ["SN: R50001-UP"] | ||||
| 4. | 424-03-21160 | [26] | SHIM, 0.6MM Komatsu China | |
| ["SN: R50001-UP"] | ||||
| 5. | 421-03-11470 | [1] | SHEET Komatsu China | |
| ["SN: R50001-UP"] | ||||
| 6. | 424-03-21210 | [1] | SHROUD Komatsu China | |
| ["SN: R50001-UP"] | ||||
| 7. | 421-03-11211 | [2] | PACKING Komatsu | 0.001 kg. |
| ["SN: R50001-UP"] | ||||
| 8. | 23S-03-11150 | [1] | CAP ASS'Y Komatsu | 0.25 kg. |
| ["SN: R50001-UP"] analogs:["2096051180"] | ||||
| 9. | 01010-50820 | [12] | BOLT Komatsu | 0.013 kg. |
| ["SN: R50001-UP"] analogs:["0101080820", "801014067", "801015086"] | ||||
| 10. | 01602-20825 | [12] | WASHER,SPRING Komatsu | 0.004 kg. |
| ["SN: R50001-UP"] analogs:["0160200825", "0231011020", "6124613790"] | ||||
| 11. | 01010-51015 | [8] | BOLT Komatsu China | |
| ["SN: R50001-UP"] | ||||
| 12. | 01643-31032 | [8] | WASHER Komatsu | 0.054 kg. |
| ["SN: R50001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 13 | 566-16-11351 | [1] | PLUG Komatsu | 0.27 kg. |
| ["SN: R50001-UP"] | ||||
| 14 | 07002-23634 | [1] | O-RING Komatsu | 1.58 kg. |
| ["SN: R50001-UP"] | ||||
| 15 | 01010-81495 | [2] | BOLT Komatsu China | |
| ["SN: R50001-UP"] analogs:["0101031495", "0101051495", "0101061495", "0104031495", "0104041495"] | ||||
| 16 | 01643-31445 | [2] | WASHER Komatsu | 0.019 kg. |
| ["SN: R50001-UP"] analogs:["0164301432"] | ||||
| 17 | 41E-70-15771 | [2] | SPACER Komatsu China | |
| ["SN: R50001-UP"] | ||||
| 18 | 421-03-23150 | [2] | STAY Komatsu | 26.8 kg. |
| ["SN: R50001-UP"] | ||||
| 19 | 01435-01235 | [4] | BOLT Komatsu | 0.048 kg. |
| ["SN: R50001-UP"] analogs:["0143521235"] |
- Description
Engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The excavator spare parts are supplied strictly according to the genuine parts alog.
3. All the excavator spare parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
