383-6407 230-2966 345D 349D Radiator Core For Excavator Spare Parts
- 383-6407 230-2966 345D 349D Radiator Core Used For Excavator Spare Parts
- Spec Sheet
| Excavator spare parts name | Radiator core |
| Equipment Model | E345D E349D |
| Parts egory | Excavator spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR 345C MH 345D 345D L 349D 349D L
MOBILE HYD POWER UNIT

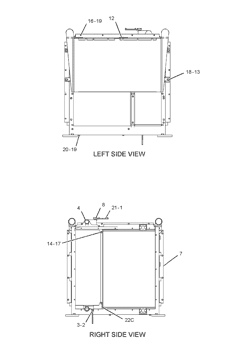

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 096-4035 | [3] | CLIP | |
| 2 | 141-5976 | [1] | JOINT | |
| 3 | 141-5978 | [1] | CAP | |
| 4 | 383-6407 | [1] | CORE AS-RADIATOR | |
| 5 | 359-9393 | [1] | AFTERCOOLER AS | |
| 6 | 281-3514 | [1] | CORE AS-HYDRAULIC OIL COOLER | |
| 7 | 230-2969 | [1] | FRAME AS | |
| 8 | 230-2970 | [1] | CAP AS-RADIATOR | |
| 9 | 230-2971 | [1] | SUPPORT AS | |
| 10 | 230-2972 | [1] | PLATE AS | |
| 11 | 230-2973 | [1] | PLATE | |
| 12 | 245-9247 | [2] | PLATE | |
| 13 | 131-5879 | [4] | WASHER (11X32X3-MM THK) | |
| 14 | 5P-4116 | [18] | WASHER-HARD (8.8X20.5X2-MM THK) | |
| 15 | 8T-4121 | [4] | WASHER-HARD (11X21X2.5-MM THK) | |
| 16 | 8T-4139 M | [2] | BOLT (M12X1.75X30-MM) | |
| 17 | 8T-4189 M | [18] | BOLT (M8X1.25X20-MM) | |
| 18 | 8T-4195 M | [8] | BOLT (M10X1.5X30-MM) | |
| 19 | 8T-4223 | [4] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 20 | 8T-4648 M | [2] | BOLT (M12X1.75X70-MM) | |
| 21 | 7Y-1976 E | HOSE-WATER (270-CM) | ||
| 21A. | 7Y-1976 E | HOSE-WATER (20-CM) | ||
| 22 | 5P-5649 D | SEAL-BULK (0.45-M EACH) | ||
| 22A. | 5P-5649 D | SEAL-BULK (0.15-M) | ||
| 22B. | 5P-5649 D | SEAL-BULK (1.2-M) | ||
| 22C. | 5P-5649 D | SEAL-BULK (1.3-M) | ||
| 22D. | 5P-5649 D | SEAL-BULK (0.24-M) | ||
| D | ORDER BY THE METER | |||
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART |
- Description
Engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The excavator spare parts are supplied strictly according to the genuine parts alog.
3. All the excavator spare parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
