2898173 289-8173 330D 336D Pump Flange For Excavator Hydraulic Pump Parts
- 2898173 289-8173 330D 336D Pump Flange Used For Excavator Hydraulic Pump Parts
- Spec Sheet
| Excavator spare parts name | Pump flange |
| Equipment Model | 330D 336D |
| Parts egory | Excavator hydraulic parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 336D2 L 340D L 340D2 L 568 FM LL
MOBILE HYD POWER UNIT 330D 330D L 336D L
WHEELED EXCAVATOR M330D

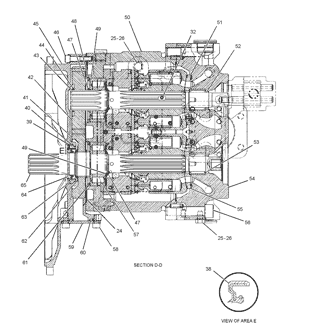

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 289-7917 | [1] | PUMP GP-GEAR | |
| 246-9867 | [1] | SEAL-O-RING | ||
| 247-8841 M | [2] | BOLT (M10X1.5X30-MM) | ||
| 2 | 252-9167 M | [8] | BOLT-SOCKET HEAD (M8X1.25X30-MM) | |
| 3 | 247-8985 | [4] | DOWEL | |
| 4 | 247-8729 | [2] | COVER | |
| 5 | 242-6919 M | [2] | SETSCREW (M20X2.5X56-MM) | |
| 6 | 451-2184 M | [2] | NUT (M20X2.5-THD) | |
| 7 | 6V-8200 M | [8] | BOLT-SOCKET HEAD (M12X1.75X35-MM) | |
| 8 | 7I-8166 | [2] | STOPPER | |
| 9 | 109-1296 | [2] | SEAL-O-RING | |
| 10 | 7I-8172 | [2] | RING-BACKUP | |
| 11 | 242-6914 | [2] | PISTON-SERVO | |
| 12 | 247-8712 | [2] | PIN AS | |
| 13 | 7I-8152 | [18] | SPRING-CYLINDER | |
| 14 | 109-1294 | [2] | SEAL-O-RING | |
| 15 | 7I-8171 | [2] | RING-BACKUP | |
| 16 | 242-6915 | [2] | STOPPER | |
| 17 | 095-0965 | [11] | PLUG | |
| 18 | 095-0966 | [2] | PLUG | |
| 19 | 242-6918 M | [2] | NUT (M20X2.5-THD) | |
| 20 | 200-3292 M | [2] | SETSCREW (M20X2.5X90-MM) | |
| 21 | 264-8266 M | [1] | BOLT-SOCKET HEAD (M22X2.5X130-MM) | |
| 22 | 234-4539 | [2] | DOWEL | |
| 23 | 249-1306 M | [10] | BOLT-SOCKET HEAD (M22X2.5X60-MM) | |
| 24 | 326-4415 | [2] | GASKET | |
| 25 | 110-5525 | [4] | PLUG | |
| 26 | 153-4906 | [4] | SEAL-O-RING | |
| 27 | 295-9656 | [2] | PISTON AS | |
| 28 | 7I-8154 | [2] | PLATE | |
| 29 | 242-6912 | [2] | PLATE | |
| 30 | 242-6913 | [2] | RETAINER-BALL | |
| 31 | 289-8172 | [2] | SWASHPLATE AS | |
| 32 | 7I-8084 | [20] | PLUG | |
| 33 | 311-9548 | [4] | PLUG | |
| 34 | 247-8725 | [2] | PLATE | |
| 35 | 095-0882 | [4] | PIN-SPRING | |
| 36 | 247-8786 | [2] | DOWEL | |
| 37 | 347-6530 | [9] | SEAL-RECTANGULAR | |
| 38 | 295-9695 | [1] | SEAL-LIP TYPE | |
| 39 | 095-0944 | [1] | RING-RETAINING | |
| 40 | 249-6657 | [1] | SEAL-O-RING | |
| 41 | 289-8174 | [1] | GEAR-DRIVE | |
| 42 | 289-8175 | [1] | GEAR-DRIVEN | |
| 43 | 6V-5204 | [1] | RING-RETAINING | |
| 44 | 247-8718 | [1] | SPACER (44.5X68X3-MM THK) | |
| 45 | 289-8173 | [1] | FLANGE | |
| 46 | 8T-0343 M | [11] | BOLT-SOCKET HEAD (M12X1.75X55-MM) | |
| 47 | 8T-4241 | [3] | RING-RETAINING (EXTERNAL) | |
| 48 | 247-8787 | [2] | RING-RETAINING | |
| 49 | 247-8719 | [3] | SPACER (50X64X3-MM THK) | |
| 50 | 322-8734 | [1] | BODY | |
| 51 | 295-9658 | [1] | BARREL AS | |
| 52 | 259-0832 | [1] | SHAFT-DRIVEN | |
| 53 | 247-8715 | [2] | BEARING-NEEDLE | |
| 54 | 295-9659 | [1] | BLOCK-PORT | |
| 55 | 295-9657 | [1] | BARREL AS | |
| 56 | 249-1307 M | [2] | BOLT-SOCKET HEAD (M22X2.5X95-MM) | |
| 57 | 247-8713 | [2] | BEARING-ROLLER | |
| 58 | 8T-9080 M | [8] | BOLT-SOCKET HEAD (M12X1.75X20-MM) | |
| 59 | 225-4516 | [1] | PLATE | |
| 60 | 249-6670 | [1] | SEAL-O-RING | |
| 61 | 247-8720 | [2] | SPACER (95X110X3.2-MM THK) | |
| 62 | 247-8717 | [2] | SPACER (65X90X1-MM THK) | |
| 63 | 095-0929 | [2] | RING-RETAINING | |
| 64 | 247-8726 | [1] | COVER | |
| 65 | 259-0831 | [1] | SHAFT-DRIVE | |
| 66 | 206-9291 | [2] | SEAL-O-RING | |
| 67 | 225-4518 Y | [1] | VALVE GP-SOLENOID (PUMP CONTROL) | |
| 68 | 295-9660 Y | [2] | HEAD GP-PUMP |
- Description
Hydraulic pumps are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump parts are supplied strictly according to the genuine parts alog.
3. All the pump components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
