K9007415 Travel Motor Drive Shaft For Doosan DX225 Excavator Final Drive Parts
- K9007415 Travel Motor Drive Shaft Used For Doosan DX225 Excavator Final Drive Parts
- Spec Sheet
| Excavator spare parts name | motor drive shaft |
| Equipment Model | DX225LCA |
| Parts egory | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
Excavator DX225 DX235 DX255 Doosan

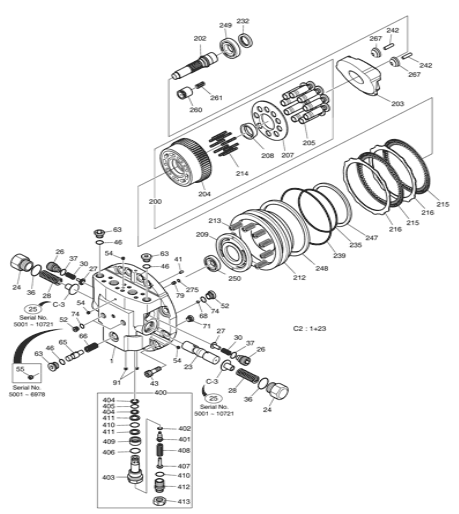

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | K9008310 | [1] | SEAL KIT;TRAVEL MOTOR | |
| 1 | *NA00915 | [1] | REAR FLANGE | |
| 200 | 400701-00004 | [1] | ||
| 200 | K9007407 | [1] | CYL BLOCK & PISTON KIT | 400701-00004 |
| 202 | K9007415A | [1] | ||
| 202 | K9007415 | [1] | SHAFT;DRIVE | K9007415A |
| 203 | K9007382 | [1] | PLATE;SWASH | |
| 204 | K9007397 | [1] | BLOCK;CYLINDER | |
| 205 | K9007406A | [1] | ||
| 205 | K9007406 | [1] | PISTON ASS'Y | |
| 207 | K9004447 | [1] | PLATE;RETAINER | |
| 208 | K9004448 | [1] | BALL;THRUST | |
| 209 | K9007398A | [1] | ||
| 209 | K9007398 | [1] | PLATE;TIMING | |
| 212 | K9004453 | [1] | PISTON;PARKING | |
| 213 | 1.131-00049A | [12] | SPRING | |
| 213 | 1.131-00049 | [12] | SPRING | |
| 214 | K9004449 | [1] | SPRING | |
| 215 | 412-00013 | [2] | PLATE,FRICTION | |
| 216 | 352-00014 | [2] | PLATE,SEPARATION | |
| 23 | 410207-00163 | [1] | ||
| 23 | 410207-00163A | [1] | ||
| 23 | 410207-00307 | [1] | SPOOL,MAIN | |
| 23 | K9007399 | [1] | MAIN SPOOL | |
| 232 | K9007401 | [1] | SEAL;OIL | |
| 235 | S8001801 | [1] | O-RING | |
| 239 | S8002101 | [1] | O-RING | |
| 24 | 1.181-00059 | [2] | PLUG;FOR MAIN | |
| 242 | 1.123-00053 | [4] | PIN,PARALLEL | |
| 247 | S8061800 | [1] | RING;BACK UP | |
| 248 | S8062100 | [1] | RING;BACK UP | |
| 249 | K9007400 | [1] | BEARING;BALL | |
| 25 | 110956-00071 | [2] | ||
| 250 | 1.109-00026 | [1] | BEARING;BALL | |
| 26 | 1.181-00067 | [2] | PLUG;CHECK | |
| 260 | 130602-00200 | [1] | ||
| 260 | 1.409-00180 | [1] | PISTON KIT;2 SPEED | |
| 261 | 111601-00117 | [1] | ||
| 261 | 1.131-00042 | [1] | SPRING | |
| 267 | 1.540-00006 | [2] | PIVOT | |
| 27 | 1.420-00013 | [2] | VALVE;CHECK | |
| 275 | S8000081 | [2] | O-RING | |
| 28 | 1.131-00058 | [2] | SPRING;FOR MAIN | |
| 30 | 1.129-00006 | [2] | SPRING;CHECK | |
| 36 | S8000321 | [2] | O-RING | |
| 37 | S8002731 | [2] | O-RING | |
| 400 | 410127-00058 | [2] | ||
| 400 | 410127-00058A | [2] | 410127-00190 | |
| 400 | 410127-00190 | [2] | VALVE ASSY,RELIEF | |
| 400 | K9007413 | [2] | RELIEF VALVE ASS'Y | |
| 401 | *NA00890 | [1] | . PLUNGER | |
| 402 | 1.180-00527 | [1] | SEAL;PISTON | |
| 403 | *NA00079 | [1] | BODY | |
| 404 | S8060161 | [2] | RING;BACK-UP | |
| 405 | S8000161 | [3] | O-RING | |
| 406 | S8010291 | [1] | O-RING | |
| 407 | *NA00926 | [1] | ||
| 408 | *NA01182 | [1] | . SPRING | |
| 409 | *NA00796 | [1] | PISTON | |
| 41 | S5700891 | [1] | PIN;PARALLEL | |
| 410 | S8000221 | [2] | O-RING | |
| 411 | S8060221 | [3] | RING;BACK UP | |
| 412 | *NA00865 | [1] | PLUG,ADJUST | |
| 413 | *NA00628 | [1] | NUT,LOCK | |
| 43 | S2221471 | [12] | BOLT,SOCKET | |
| 46 | S8000181 | [2] | O-RING | |
| 52 | 2181-1890D2 | [4] | PLUG | |
| 52 | 2181-1890D2 | [2] | PLUG | |
| 54 | 181-00318 | [5] | BOLT;SOCKER | |
| 55 | 2181-1116D2 | [2] | PLUG | |
| 63 | 2181-1890D4 | [2] | PLUG | |
| 65 | 1.424-00041 | [1] | SPOOL;2 SPEED | |
| 66 | 111601-00354 | [1] | SPRING | |
| 66 | 1.131-00001 | [1] | SPRING | 111601-00354 |
| 68 | S6250182 | [2] | BALL | |
| 71 | 1.415-00005 | [1] | ORIFICE | |
| 74 | S8000111 | [4] | O-RING | |
| 74 | S8000111 | [2] | O-RING | |
| 79 | 1.471-00001A | [1] | FILTER | |
| 79 | 1.471-00001 | [1] | FILTER | |
| 91 | 2181-1116D1 | [2] | PLUG | |
| C. | 300609-00069 | [1] | ||
| C. | K9007410 | [1] | CONTROL PART ASS'Y | 300609-00069 |
| C-1. | 430215-00552 | [1] | ||
| C-1. | K9007408 | [1] | REAR FLANGE ASS'Y | |
| C-1. | K9007408A | [1] | 430215-00552 | |
| C-2. | K9007409 | [1] | REAR FLANGE KIT | |
| C-2. | K9007409A | [1] | ||
| C-3. | 110956-00060 | [2] | STOPPER |
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
