708-8H-04711 Komatsu PC300-7 PC340-7 PC300-8 PC350-8 Excavator Travel Motor
- 708-8H-04711 Komatsu PC300-7 PC340-7 PC300-8 PC350-8 Excavator Travel Motor
- Spec Sheet
| Excavator spare parts name | travel motor |
| Equipment Model | Komatsu PC270 PC300 PC340 PC350 |
| Parts egory | Excavator travel motor parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATORS PC270 PC290 PC300 PC300HD PC308 PC340 PC350 PC380 Komatsu

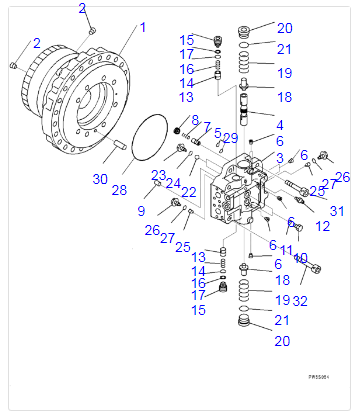

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 207-27-00413 | [2] | Final Drive Assembly Komatsu | 670 kg. | |
| ["SN: 61695-63594"] analogs:["2072700412", "2072700411", "2072700410"] |$0. | ||||
| 207-27-00412 | [2] | Final Drive Assembly Komatsu | 670 kg. | |
| ["SN: 60001-61694", "SCC: A2"] analogs:["2072700411", "2072700410", "2072700413"] |$1. | ||||
| 708-8H-00320 | [1] | Motor Assembly Komatsu | 177.001 kg. | |
| ["SN: 60001-63594"] |$2. | ||||
| 708-8H-04711 | [1] | Subassembly Komatsu | 109 kg. | |
| ["SN: 60001-63594", "SCC: C2"] analogs:["7088H04710", "7088H04712"] |$3. | ||||
| 708-8H-04721 | [1] | Cover Subassembly Komatsu | 59.5 kg. | |
| ["SN: 60001-63594", "SCC: C2"] |$6. | ||||
| 9 | 706-75-42820 | [1] | Pin, Dowel Komatsu China | |
| ["SN: 60001-63594", "SCC: C2"] | ||||
| 10 | 708-8H-11530 | [2] | Plug Komatsu | 0.031 kg. |
| ["SN: 60001-63594"] | ||||
| 11 | 07002-11423 | [2] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 60001-63594"] analogs:["0700201423"] | ||||
| 12 | 20B-27-11210 | [1] | Bleeder Komatsu | 0.02 kg. |
| ["SN: 60001-63594"] | ||||
| 13 | 706-73-72420 | [2] | Valve Komatsu China | |
| ["SN: 60001-63594"] | ||||
| 14 | 706-73-72440 | [2] | Spring Komatsu China | |
| ["SN: 60001-63594"] | ||||
| 15 | 708-8H-36150 | [2] | Plug Komatsu China | |
| ["SN: 60001-63594"] | ||||
| 16 | 07000-12018 | [2] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 60001-63594"] analogs:["KB9511301800", "YM24311000180", "0700002018", "2083811590"] | ||||
| 17 | 07001-02018 | [2] | Ring, Back-up Komatsu | 0.001 kg. |
| ["SN: 60001-63594"] | ||||
| 18 | 706-78-71160 | [2] | Piston Komatsu China | |
| ["SN: 60001-63594"] | ||||
| 19 | 708-8H-36121 | [2] | Spring Komatsu China | |
| ["SN: 60001-63594"] | ||||
| 20 | 708-8H-16141 | [2] | Plug Komatsu | 0.25 kg. |
| ["SN: 60001-63594"] | ||||
| 21 | 07002-13634 | [2] | O-ring Komatsu China | 0.013 kg. |
| ["SN: 60001-63594"] analogs:["0700203634"] | ||||
| 22 | 04260-00793 | [2] | Ball Komatsu | 0.005 kg. |
| ["SN: 60001-63594", "SCC: C2"] | ||||
| 23 | 706-8E-14110 | [2] | Plug Komatsu China | |
| ["SN: 60001-63594", "SCC: C2"] analogs:["7088E14110"] | ||||
| 24 | 07002-11023 | [2] | O-ring Komatsu China | 0.025 kg. |
| ["SN: 60001-63594", "SCC: C2"] analogs:["0700201023"] | ||||
| 25 | 708-8E-16180 | [2] | Valve Komatsu | 0.004 kg. |
| ["SN: 60001-63594"] | ||||
| 26 | 708-8E-16160 | [2] | Plug Komatsu | 0.01 kg. |
| ["SN: 60001-63594", "SCC: C2"] | ||||
| 28 | 708-8H-31210 | [1] | O-ring Komatsu | 0.01 kg. |
| ["SN: 60001-63594", "SCC: C2"] | ||||
| 29 | 07000-12012 | [2] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 60001-63594", "SCC: C2"] analogs:["0700002012", "7082E11790"] | ||||
| 30 | 04020-01228 | [1] | Pin, Dowel Komatsu | 0.026 kg. |
| ["SN: 60001-63594", "SCC: C2"] analogs:["21T3016190"] | ||||
| 31 | 01252-62055 | [6] | Bolt Komatsu | 0.222 kg. |
| ["SN: 60001-63594", "SCC: C2"] | ||||
| 32 | 01252-62095 | [2] | Bolt Komatsu | 0.321 kg. |
| ["SN: 60001-63594", "SCC: C2"] |
- Description
Hydraulic pumps are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump & Motor parts are supplied strictly according to the genuine parts alog.
3. All the pump & Motor components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump & motor parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
