41G-06-13201 Turn Signal Lamp Assy For Komatsu WA320 Wheel Excavator Spare Parts
- 41G-06-13201 Turn Signal Lamp Assy Used For Komatsu WA320 Wheel Excavator Spare Parts
- Spec Sheet
| Excavator spare parts name | Turn Signal Lamp Assy |
| Equipment Model | 41G-06-13201 |
| Parts egory | Excavator spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
COMPACTORS WF650T
DUMP TRUCKS HM300 HM300TN HM350 HM400
ROLLERS JV100A JV100WA JV100WP JV130WH
WHEEL DOZERS WD500 WD600 WD900
WHEEL LOADERS WA100 WA100M WA120 WA1200 WA120L WA150 WA180 WA180L WA180PT WA200 WA250 WA250L WA250PT WA300 WA300L WA320 WA350 WA380 WA400 WA420 WA450 WA450L WA470 WA500 WA600 WA700 WA80 WA800 WA800L WA900 WA900L WR11 Komatsu

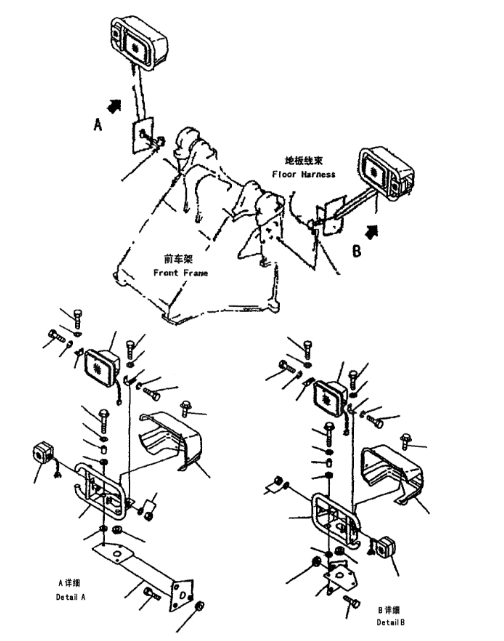

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 421-06-D0130 | [2] | WIRING HARNESS Komatsu China | |
| ["Field_1: 15001-"] | ||||
| 2 | 01435-01225 | [6] | BOLT Komatsu | 0.041 kg. |
| ["Field_1: 15001-"] | ||||
| 4 | 08037-03614 | [2] | GROMMET Komatsu | 0.028 kg. |
| ["Field_1: 15001-"] | ||||
| 5 | 421-06-23522 | [1] | BRACKET,L.H Komatsu China | |
| ["Field_1: 15001-"] | ||||
| 6 | 421-06-23552 | [1] | PLATE Komatsu China | |
| ["Field_1: 15001-"] | ||||
| 7 | 421-06-23630 | [1] | PLATE,L.H Komatsu China | |
| ["Field_1: 15001-"] | ||||
| 8 | 01010-51025 | [2] | BOLT Komatsu | 0.36 kg. |
| ["Field_1: 15001-"] analogs:["0101081025", "0101651025", "801015109"] | ||||
| 9 | 01643-31032 | [2] | WASHER Komatsu | 0.054 kg. |
| ["Field_1: 15001-"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 10 | 421-06-23532 | [1] | BRACKET,R.H Komatsu | 40 kg. |
| ["Field_1: 15001-"] | ||||
| 12 | 421-06-23640 | [1] | PLATE,R.H Komatsu China | |
| ["Field_1: 15001-"] | ||||
| 15 | 417-54-13470 | [6] | SPACER Komatsu | 0.02 kg. |
| ["Field_1: 15001-"] analogs:["4176214130"] | ||||
| 16 | 419-43-17930 | [6] | CUSHION Komatsu | 0.016 kg. |
| ["Field_1: 15001-"] | ||||
| 17 | 415-64-13130 | [6] | CUSHION Komatsu | 0.017 kg. |
| ["Field_1: 15001-"] | ||||
| 18 | 419-43-17920 | [6] | WASHER Komatsu | 0.03 kg. |
| ["Field_1: 15001-"] | ||||
| 19 | 01435-01250 | [6] | BOLT Komatsu | 0.059 kg. |
| ["Field_1: 15001-"] | ||||
| 21 | 424-06-23210 | [2] | HEAD LAMP ASS'Y Komatsu | 0.85 kg. |
| ["Field_1: 15001-"] | ||||
| 424-06-23230 | [1] | BULB,75/70W Komatsu | 0.049 kg. | |
| ["Field_1: 15001-"] |$20. | ||||
| 424-06-23220 | [1] | LENS Komatsu | 0.11 kg. | |
| ["Field_1: 15001-"] |$21. | ||||
| 22. | 01010-80825 | [2] | BOLT Komatsu | 0.015 kg. |
| ["Field_1: 15001-"] analogs:["0101050825", "01010D0825", "801015087"] | ||||
| 23. | 01602-20825 | [2] | WASHER,SPRING Komatsu | 0.004 kg. |
| ["Field_1: 15001-"] analogs:["0160200825", "0231011020", "6124613790"] | ||||
| 24 | 41G-06-13201 | [2] | LAMP ASS'Y,COMBINATION Komatsu | 0.335 kg. |
| ["Field_1: 15001-"] | ||||
| 41G-06-13210 | [1] | LENS Komatsu | 0.092 kg. | |
| ["Field_1: 15001-"] |$25. | ||||
| 41G-06-13230 | [1] | BULB,5W Komatsu | 0.027 kg. | |
| ["Field_1: 15001-"] |$26. | ||||
| 08105-12420 | [1] | BULB,25W Komatsu | 0.01 kg. | |
| ["Field_1: 15001-"] |$27. | ||||
| 41G-06-13220 | [1] | LENS Komatsu | 0.04 kg. | |
| ["Field_1: 15001-"] |$28. | ||||
| 01220-40425 | [4] | SCREW Komatsu | 0.008 kg. | |
| ["Field_1: 15001-"] |$29. | ||||
| 25 | 421-06-23611 | [1] | COVER,L.H Komatsu | 13 kg. |
| ["Field_1: 15001-"] | ||||
| 26 | 421-06-23621 | [1] | COVER,R.H Komatsu | 13 kg. |
| ["Field_1: 15001-"] | ||||
| 27 | 01024-80616 | [10] | BOLT Komatsu China | 0.01 kg. |
| ["Field_1: 15027-"] | ||||
| 01220-40616 | [10] | SCREW Komatsu | 0.005 kg. | |
| ["Field_1: 15001-"] analogs:["0122070616"] |$33. | ||||
| 29 | 421-06-D0111 | [1] | SUPPORT,L.H Komatsu China | |
| ["Field_1: 15011-"] | ||||
| 421-06-D0110 | [1] | SUPPORT,L.H Komatsu China | ||
| ["Field_1: 15001-15010"] |$35. | ||||
| 30 | 421-06-D0121 | [1] | SUPPORT,R.H Komatsu China | |
| ["Field_1: 15011-"] | ||||
| 421-06-D0120 | [1] | SUPPORT,R.H Komatsu China | ||
| ["Field_1: 15001-15010"] |$37. |
- Description
parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The excavator spare parts are supplied strictly according to the genuine parts alog.
3. All the excavator spare parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
