1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts
- 1020401 Pump Head Used For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts
- Spec Sheet
| Excavator spare parts name | Pump head |
| Equipment Model | EX100 EX120 EX135 |
| Parts egory | Excavator hydraulic pump parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EX100-5 EX100-5 JPN EX100M-5 EX120-5 EX120-5 JPN EX120-5HG EX120-5LV JPN EX120-5X EX120-5Z EX120SS-5 EX130H-5 EX130H-5 JPN EX130K-5 EX135UR EX135UR-5 EX135US-5 EX135USR EX135USRK EX140US-5 Hitachi

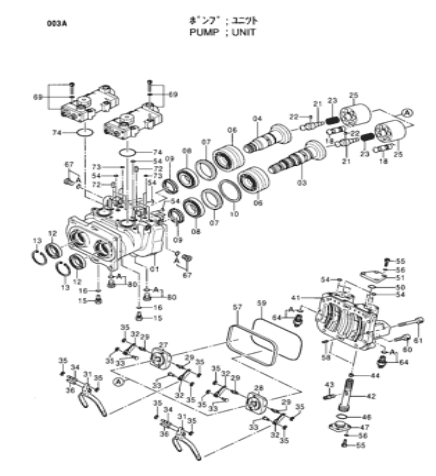

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| +++++++ | [1] | PUMP;UNIT | 9151424 | |
| 1 | 1020513 | [1] | CASING;PUMP | |
| 3 | 2036963 | [1] | DISC;DRIVING | |
| 4 | 2036965 | [1] | DISC;DRIVING | |
| 6 | 4339254 | [2] | BRG.;ROL. | |
| 7 | 4348299 | [2] | RING | |
| 8 | 4338325 | [2] | BRG.;ROL. | |
| 9 | 4180790 | [2] | NUT;BRG. | |
| 10 | 4331993 | [1] | RING;THRUST | |
| 12 | 4340358 | [2] | SEAL;OIL | |
| 13 | 4086775 | [2] | RING;RETAINING | |
| 15 | 4233165 | [2] | PLUG | |
| 16 | 957366 | [2] | O-RING | |
| 18 | 9742464 | [14] | PISTON | |
| 21 | 4339296 | [2] | SHAFT;CENTER | |
| 22 | 4198956 | [2] | PIN | |
| 23 | 4180786 | [2] | SPRING;COMPRES. | |
| 25 | 2036958 | [2] | ROTOR | |
| 27 | 2036441 | [1] | VALVE | |
| 28 | 2037013 | [1] | VALVE | |
| 29 | 4179179 | [4] | PIN | |
| 31 | 3075855 | [2] | LINK | |
| 32 | 9724756 | [4] | LEVER | |
| 33 | 4179177 | [4] | PIN | |
| 34 | 4179176 | [2] | PIN | |
| 35 | 4146370 | [12] | RING;RETAINING | |
| 36 | 4200227 | [2] | PIN | |
| 41 | 1020401 | [1] | HEAD | |
| 42 | 3068226 | [2] | PISTON;SERVO | |
| 43 | 4330909 | [2] | PIN | |
| 44 | 4179838 | [2] | SCREW;SET | |
| 46 | 4355081 | [2] | O-RING | |
| 47 | 4330951 | [2] | STOPPER | |
| 50 | 4355080 | [2] | O-RING | |
| 51 | 4330950 | [2] | STOPPER | |
| 54 | 4180349 | [20] | O-RING | |
| 55 | M340825 | [16] | BOLT;SOCKET | |
| 56 | 4514388 | [16] | WASHER;SPRING | |
| 57 | 3071500 | [1] | RING;BACK-UP | |
| 58 | 4099290 | [2] | PIN;SPRING | |
| 59 | 4345061 | [1] | O-RING | |
| 60 | M341245 | [10] | BOLT;SOCKET | |
| 61 | M341290 | [2] | BOLT;SOCKET | |
| 64 | 4355012 | [2] | SENSOR;PRES. | |
| 64A. | 4365826 | [1] | O-RING | |
| 67 | 9134110 | [2] | PLUG | |
| 67A. | 957366 | [1] | O-RING | |
| 69 | -9153170 | [1] | REGULATOR | <for transportation> |
| 69 | 9151423 | [2] | REGULATOR | I 9153170 <for assembly of machine>9151423 |
| 72 | 4515041 | [4] | PIN;SPRING | |
| 73 | 4343074 | [4] | O-RING | |
| 74 | 4348665 | [2] | O-RING | |
| 80 | 9134111 | [2] | PLUG | |
| 80A. | 4509180 | [1] | O-RING |
- Description
Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump parts and valve are supplied strictly according to the genuine parts alog.
3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
