706-75-92140 706-75-92150 Swing Motor Friction Disc & Plate For Komatsu PC200-6
- 706-75-92140 706-75-92150 Swing motor Friction Disc & Plate Used For Komatsu PC200-6 Swing motor
- Spec Sheet
| Excavator spare parts name | friction disc and plate |
| Equipment Model | PC200-6 |
| Parts egory | Excavator Swing gear |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATORS PC180 PC180L PC200 PC200Z PC210 PC220 PC230 PC240 PC250 PW170
MOBILE CRUSHERS AND RECYCLERS BR200J BR200R BR200S BR300J BR310JG Komatsu

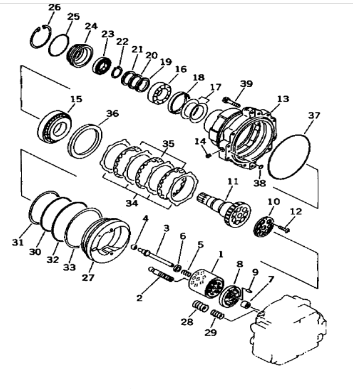

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 706-75-01101 | [1] | MOTOR ASS'Y Komatsu | 50 kg. | |
| ["SN: 80321-94998"] analogs:["7067501100"] |1. | ||||
| 706-75-01100 | [1] | MOTOR ASS'Y Komatsu | 50 kg. | |
| ["SN: 80001-80320"] analogs:["7067501101"] |1. | ||||
| [-1] | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-03A0. | |||
| |$$3. | ||||
| 706-75-03022 | [1] | MOTOR SUB ASS'Y Komatsu China | ||
| ["SN: 80321-@"] |1. | ||||
| 706-75-03021 | [1] | MOTOR SUB ASS'Y Komatsu China | ||
| ["SN: 80001-80320"] |1. | ||||
| 1 | 07000-05200 | [1] | O-RING Komatsu | 0.023 kg. |
| ["SN: 80001-@"] analogs:["0700015200", "0700001520"] | ||||
| 2 | 01252-61440 | [8] | BOLT Komatsu China | |
| ["SN: 80321-@"] analogs:["0125231440"] | ||||
| 706-87-50360 | [8] | BOLT Komatsu China | ||
| ["SN: 80001-80320"] |2. | ||||
| 3 | 706-75-42662 | [1] | SHAFT Komatsu | 3.94 kg. |
| ["SN: 80321-@"] | ||||
| 706-75-42661 | [1] | SHAFT Komatsu | 3.94 kg. | |
| ["SN: 80001-80320"] analogs:["7067542662"] |3. | ||||
| 4 | 706-75-42880 | [1] | BEARING Komatsu | 2.42 kg. |
| ["SN: 80001-@"] | ||||
| 5 | 706-76-40890 | [1] | BEARING Komatsu | 0.524 kg. |
| ["SN: 80001-@"] | ||||
| 6 | 706-7E-11260 | [2] | SPRING Komatsu | 0.03 kg. |
| ["SN: 80001-@"] | ||||
| 7 | 706-7E-11270 | [1] | SEAT Komatsu | 0.05 kg. |
| ["SN: 80001-@"] | ||||
| 8 | 706-75-05010 | [1] | SPACER KIT Komatsu | 0.14 kg. |
| ["SN: 80001-@"] | ||||
| 9 | 04064-04518 | [1] | RING,SNAP Komatsu China | 0.007 kg. |
| ["SN: 80001-@"] analogs:["20Y3029190"] | ||||
| 10 | 706-7E-11280 | [1] | SEAL Komatsu | 0.15 kg. |
| ["SN: 80001-@"] | ||||
| 11 | 706-75-42711 | [1] | COVER Komatsu | 0.49 kg. |
| ["SN: 80001-@"] | ||||
| 12 | 07000-02085 | [1] | O-RING Komatsu China | 0.03 kg. |
| ["SN: 80001-@"] analogs:["0700012085", "YM24321000850"] | ||||
| 13 | 04065-09030 | [1] | RING,SNAP Komatsu | 0.03 kg. |
| ["SN: 80001-@"] analogs:["2324013250", "R0406509030"] | ||||
| 14 | 706-75-41091 | [1] | BLOCK,CYLINDER Komatsu | 2.85 kg. |
| ["SN: 80001-@"] | ||||
| 15 | 706-75-42740 | [1] | PLATE,VALVE Komatsu | 0.5 kg. |
| ["SN: 80001-@"] | ||||
| 16 | 04020-00820 | [1] | PIN Komatsu | 0.056 kg. |
| ["SN: 80001-@"] analogs:["802540092"] | ||||
| 17 | 706-75-42180 | [1] | SHAFT,CENTER Komatsu China | |
| ["SN: 80001-@"] | ||||
| 18 | 706-75-41130 | [1] | RING,CENTER Komatsu China | |
| ["SN: 80001-@"] | ||||
| 19 | 706-75-41220 | [1] | BALL,CENTER Komatsu China | |
| ["SN: 80001-@"] analogs:["7067540220"] | ||||
| 20 | 706-75-41110 | [1] | SPRING Komatsu | 0.05 kg. |
| ["SN: 80001-@"] | ||||
| 706-75-05020 | [1] | RETAINER KIT Komatsu | 0.201 kg. | |
| ["SN: 80001-@"] |21. | ||||
| 23 | 706-75-41163 | [7] | PISTON SUB ASS'Y Komatsu | 0.27 kg. |
| ["SN: 80001-@"] | ||||
| 24 | 706-75-92130 | [1] | PLATE Komatsu | 0.38 kg. |
| ["SN: 80001-@"] | ||||
| 25 | 706-75-92141 | [5] | PLATE Komatsu | 0.1 kg. |
| ["SN: 80321-@"] analogs:["7067592140"] | ||||
| 706-75-92140 | [5] | PLATE Komatsu | 0.1 kg. | |
| ["SN: 80001-80320"] analogs:["7067592141"] |25. | ||||
| 26 | 706-75-92150 | [4] | DISK Komatsu | 0.08 kg. |
| ["SN: 80001-@"] | ||||
| 27 | 706-75-92180 | [1] | PISTON,BRAKE Komatsu China | |
| ["SN: 80001-@"] | ||||
| 28 | 07000-15155 | [1] | O-RING Komatsu China | 0.017 kg. |
| ["SN: 80001-@"] analogs:["0700005155E", "0700005155"] | ||||
| 29 | 07000-15175 | [1] | O-RING Komatsu China | 0.03 kg. |
| ["SN: 80001-@"] analogs:["0700005175"] | ||||
| 30 | 706-75-92170 | [6] | SPRING Komatsu China | |
| ["SN: 80321-@"] analogs:["7067592160"] | ||||
| 706-75-92160 | [6] | SPRING Komatsu China | ||
| ["SN: 80001-80320"] analogs:["7067592170"] |30. |
- Description
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
