21N6-20211 Hyundai Excavator Spare Parts Head Work Lamp 6 Months Warranty
- 21N6-20211 Work Lamp Applied To Hyundai Excavator Spare Parts
- Spec Sheet
| Excavator spare parts name | work lamp |
| Equipment Model | R140W-7 R170W-7 R200W-7 |
| Parts egory | Excavator spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
3 SERIES WHEEL EXCAVATOR R95W3
7 SERIES WHEEL EXCAVATOR R140W7 R140W7A R170W7 R170W7A R200W7 R200W7A Hyundai

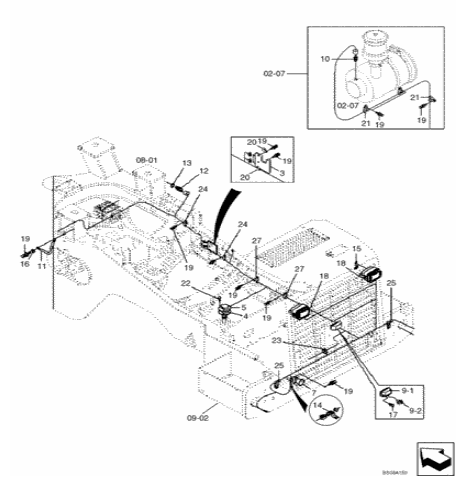

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21LH-50100 | [1] | HARNESS | FAR FRAME |
| 2 | 87578654 | [2] | TAIL LAMP | FAR Superseded by part number: 84373506 |
| 3 | 21LH-34170 | [1] | PLATE | FAR PRIOR TO P.I.N. 10124 Superseded by part number: 21LH-34171 |
| 3 | 21LH-30171 | [1] | PLATE | FAR P.I.N. 10124 AND AFTER Superseded by part number: 21LH-34171 |
| 4 | E128-1053 | [1] | GASKET | FAR |
| 5 | 21LH-00180 | [1] | SENDER UNIT | FAR FUEL |
| 7 | 21N6-20322 | [1] | BUZZER | FAR TRAVEL ALARM |
| 9 | 21LB-34250 | [1] | LAMP | FAR SUB ASSY |
| 9-1. | 21EK-10160 | [1] | LAMP | FAR NUMBER PLATE |
| 9-2. | 21LB-34260 | [1] | HARNESS | FAR EXT |
| 9-3. | 21EK-10260 | [1] | BULB | FAR |
| 10 | 11FG-20110 | [1] | SENSOR | FAR AIR CLEARNER |
| 11 | 21L8-30720 | [1] | GROUND STRAP | FAR |
| 12 | 21EN-40100 | [1] | TEMPERATURE SENDER | FAR |
| 13 | 21EA-50260 | [1] | PACKING | FAR TEMP SW |
| 14 | 25D1-10640 | [1] | CLIP | FAR ASSY, LH |
| 15 | 25D1-10650 | [1] | CLIP | FAR ASSY, RH |
| 16 | S431-100002 | [4] | LOCK WASHER | FAR INTERNAL T/LOCK |
| 17 | S151-040152 | [2] | SCREW | FAR TAPPING |
| 18 | 21N6-20211 | [2] | WORK LAMP | FAR ASSY |
| 19 | 627-10020 | [22] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106031 |
| 19-1. | 896-11010 | [22] | WASHER,11mm ID x 21mm OD x 2.5mm Thk | CAS Superseded by part number: 86625252 |
| 19-2. | 892-11010 | [22] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
| 20 | 515-23159 | [6] | CLAMP,5/8", Insul, 3/8" Bolt | CAS Superseded by part number: 86594406 |
| 21 | S593-000702 | [3] | CLIP | FAR HARNESS |
| 22 | S161-050152 | [5] | SCREW | FAR RD HD |
| 23 | L11541 | [15] | CABLE TIE,203.2mm L, Nylon | CAS CABLE STRAP 7 - 8 INCH Superseded by part number: 87000312 |
| 24 | 515-24206 | [4] | CLAMP,13/16", Insul, 7/16" Bolt | BRR Superseded by part number: 87530629 |
| 25 | S593-000652 | [2] | CLIP | FAR HARNESS |
- Description
parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The excavator spare parts are supplied strictly according to the genuine parts alog.
3. All the excavator spare parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
