S6K 3066 Excavator Engine Parts Oil Pump 34335-23010 178-6539 320C
- 34335-23010 178-6539 320C Oil Pump Applied To S6K 3066 Excavator Engine Parts
- Spec Sheet
| spare parts name | oil pump |
| Equipment Model | 320C 3066 S6K |
| Parts egory | Excavator engine parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR 318C 319C 320C

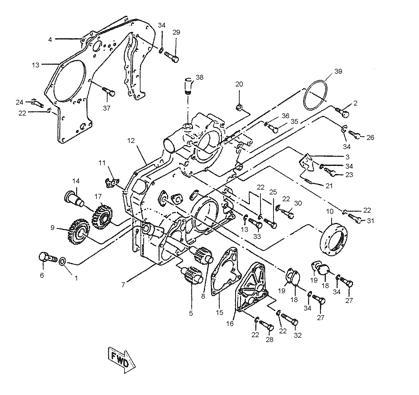

- Parts Diagram
Number 12 on drawing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2Y-5872 | [1] | GASKET | |
| 2 | 5I-4969 M | [2] | BOLT (M10X1.5X20-MM) | |
| 3 | 5I-7533 | [1] | POINTER | |
| 4 | 5I-7534 | [1] | GASKET | |
| 5 | 5I-7558 | [1] | GEAR AS (9-TEETH) | |
| 6 | 5I-7559 | [1] | VALVE AS | |
| 7 | 178-6539 | [1] | BODY AS | |
| 8 | 125-2950 | [1] | GEAR AS (9-TEETH) | |
| 9 | 125-2951 | [1] | GEAR (23-TEETH) | |
| 10 | 324-4223 | [1] | SEAL | |
| 11 | 5I-7657 | [1] | GASKET | |
| 12 | 5I-7658 | [1] | GASKET | |
| 13 | 5I-7659 | [1] | PLATE | |
| 14 | 5I-7683 | [1] | SPINDLE | |
| 15 | 178-6537 | [1] | GASKET | |
| 16 | 178-6538 | [1] | COVER AS | |
| 17 | 5I-7686 | [1] | GEAR AS (24-TEETH) | |
| 18 | 6F-7556 | [2] | COVER | |
| 19 | 6F-7557 | [2] | GASKET | |
| 20 | 212-8510 M | [2] | NUT (M10X1.25-THD) | |
| 21 | 6V-8236 | [1] | PIN-SPRING | |
| 22 | 7X-0796 | [17] | LOCKWASHER | |
| 23 | 7X-2536 M | [1] | BOLT (M8X1.25X14-MM) | |
| 24 | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) | |
| 25 | 8T-4172 M | [2] | BOLT (M10X1.5X80-MM) | |
| 26 | 8T-4177 M | [2] | BOLT (M8X1.25X90-MM) | |
| 27 | 8T-4189 M | [4] | BOLT (M8X1.25X20-MM) | |
| 28 | 8T-4195 M | [4] | BOLT (M10X1.5X30-MM) | |
| 29 | 8T-4200 M | [2] | BOLT (M8X1.25X16-MM) | |
| 30 | 8T-5005 M | [4] | BOLT (M10X1.5X70-MM) | |
| 31 | 8T-6466 M | [1] | BOLT (M10X1.5X60-MM) | |
| 32 | 8T-6685 M | [4] | BOLT (M10X1.5X110-MM) | |
| 33 | 8T-6870 M | [4] | BOLT (M8X1.25X70-MM) | |
| 34 | 3B-4505 | [15] | LOCKWASHER | |
| 35 | 096-9435 | [1] | PLUG | |
| 36 | 096-9532 | [1] | WASHER (15.8X22.5X2-MM THK) | |
| 37 | 5I-7610 M | [1] | BOLT (M10X1.5X20-MM) | |
| 38 | 5I-7632 | [1] | PIPE | |
| 39 | 096-9528 | [1] | SEAL-O-RING | |
| M | METRIC PART |
- Description
All engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the engine parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of engine parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
