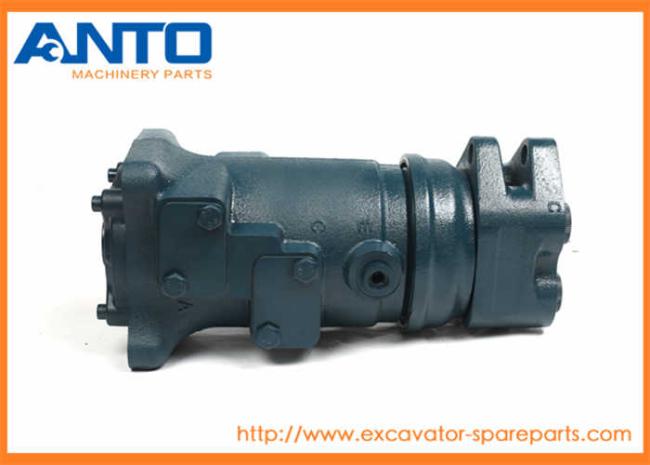

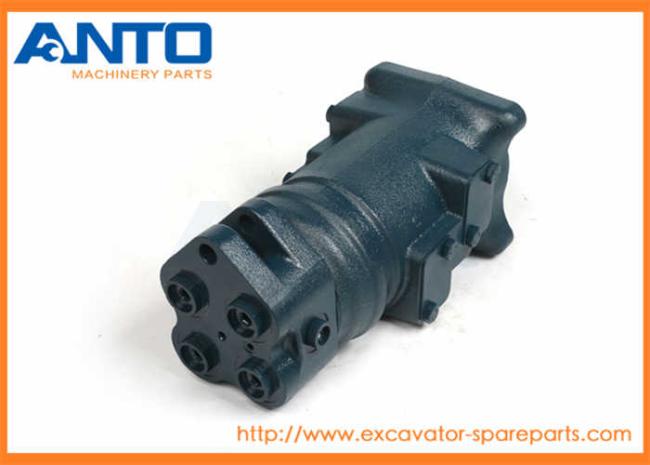

703-08-33730 703-08-33731 PC200-8M0 Swivel Joint PC220-8M0 Center Joint
-
703-08-33730 703-08-33731 PC200-8M0 Swivel Joint PC220-8M0 Center Joint
- Specifiion
| Appliion | Excavator turning joint |
| Name | Swivel joint |
| Parts No | 703-08-33730 703-08-33731 |
| Model | PC200-8M0 PC220-8M0 PC210-10 PC240-10 |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Appliion
EXCAVATORS HB205 HB215 PC200 PC210 PC220 PC240 PC290 Komats
-
More swivel joint for KOMATSU excavator
| 1439 441 H92 SWIVEL BLOCK, FOURWAY |
| KOMATSU |
| 380-143685-2 SWIVEL ASS'Y |
| JH60 |
| 458-859 SWIVEL JOINT ASS'Y |
| MX352 |
| 385-10295771 SWIVEL ASS'Y |
| 530, 530B |
| 453-071 SWIVEL JOINT ASS'Y |
| MX09 |
| 207-62-A1111 SWIVEL JOINT |
| PC300, PC400 |
| 381-897003-1 SWIVEL ASS'Y |
| JH80C |
| 381-975202-1 SWIVEL ASS'Y |
| JH60 |
| 20T-973-X210 SWIVEL JOINT GROUP,(FOR ATTACHMENT) |
| PC40 |
| 6688-72-1340 SWIVEL |
| NTO |
| 703-09-00140 SWIVEL JOINT ASS'Y |
| PC250 |

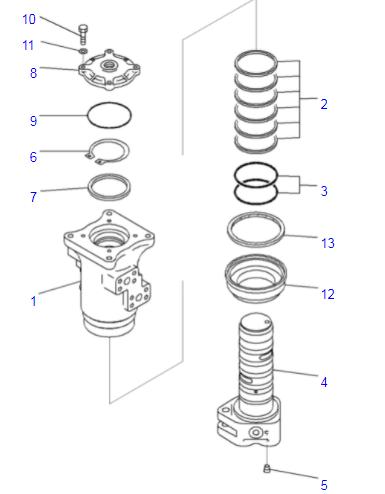

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 703-08-33730 | [1] | Swivel Joint Assembly Komatsu China | ||
| ["SN: 400001-UP"] |$0. | ||||
| 2 | 703-08-95620 | [6] | Seal, Oil Komatsu China | 0.01 kg. |
| ["SN: 400001-UP"] analogs:["7030895611"] | ||||
| 3 | 07000-15080 | [2] | O-ring Komatsu China | 0.009 kg. |
| ["SN: 400001-UP"] analogs:["0700005080"] | ||||
| 6 | 04064-07525 | [1] | Ring, Snap, for Shaft Side Komatsu | 0.026 kg. |
| ["SN: 400001-UP"] | ||||
| 7 | 703-08-94510 | [1] | Ring Komatsu | 0.09 kg. |
| ["SN: 400001-UP"] | ||||
| 8 | 703-08-93170 | [1] | Cover Komatsu | 0.36 kg. |
| ["SN: 400001-UP"] | ||||
| 9 | 07000-12105 | [1] | O-ring Komatsu OEM | 0.004 kg. |
| ["SN: 400001-UP"] analogs:["0700002105"] | ||||
| 10 | 01010-80835 | [4] | Bolt Komatsu | 0.019 kg. |
| ["SN: 400001-UP"] | ||||
| 11 | 01643-30823 | [4] | Washer Komatsu | 0.004 kg. |
| ["SN: 400001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 12 | 703-08-93771 | [1] | Cover Komatsu China | |
| ["SN: 400001-UP"] | ||||
| 13 | 703-08-95770 | [1] | Seal, Dust Komatsu OEM | 0.05 kg. |
| ["SN: 400001-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Advantage
1. We offer a 3-month warranty from the date of issue
2. We have advanced technology 100% testing before delivery
3. We have a professional team to provide you with professional excellent service
4. Safe packaging to protect goods, such as wooden boxes, iron plates for our parts
5. We can provide you with second-hand and new, high-quality Chinese parts
6. Fast delivery and low price
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1) International Express: Such as DHL,TNT, FEDEX and so on.
2) Air transportation: For goods above 45KG, it is economic choice for customers.
3) By sea: Heavy cargo by container transport.
