703-08-33610 703-08-33631 703-08-33630 KOMATSU PC220-7 Swivel Joint Assy
-
703-08-33610 703-08-33631 703-08-33630 KOMATSU PC220-7 Swivel Joint Assy
-
Specifiion
| Appliion | Excavator Center joint |
| Name | Swivel joint |
| Parts No |
703-08-33610 703-08-33631 703-08-33630 |
| Model | PC200 PC210 PC220 PC228 PC240 PC270 PC290 |
| Lead time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Appliion
EXCAVATORS PC160 PC180 PC200 PC200SC PC210 PC220 PC220LL PC228 PC228US PC230 PC230NHD PC240 PC270 PC290 PC308
OTHER BP500 Komatsu
-
Other swivel joint for KOMATSU equipment
| 703-09-00120 SWIVEL JOINT ASS'Y |
| PC200, PC200SC, PC210, PC220, PC228, PC228US, PC228UU |
| 703-08-33630 SWIVEL JOINT ASS'Y |
| PC160, PC180, PC200, PC200LL, PC210, PC220, PC228, PC228US, PC230NHD, PC240, PC270, PC290 |
| 703-09-33400 SWIVEL JOINT ASS'Y |
| PC200, PC228, PC228US |
| 703-08-33631 SWIVEL JOINT ASS'Y |
| HB205, HB215, PC160, PC180, PC190, PC200, PC200LL, PC210, PC220, PC220LL, PC228, PC228US, PC230NHD, PC240, PC270, PC290, PC308 |
| 703-10-33610 SWIVEL JOINT ASS'Y |
| PC200, PC228, PC228US |
| 703-09-33230 SWIVEL JOINT ASS'Y |
| PC150, PC160, PC180, PC200, PC200CA, PC200EL, PC200EN, PC200SC, PC210, PC220 |
| 20Y-957-5480 SWIVEL JOINT |
| PC120SC, PC200SC, PC300SC |
| 703-09-00151 SWIVEL JOINT ASS'Y |
| PC300, PC300SC, PC340, PC350, PC380, PC400, PC450 |
| 178-61-13400 SWIVEL JOINT ASS'Y |
| D155S |
| 703-08-33631 SWIVEL JOINT ASS'Y |
| HB205, HB215, PC160, PC180, PC190, PC200, PC200LL, PC210, PC220, PC220LL, PC228, PC228US, PC230NHD, PC240, PC270, PC290, PC308 |
| 20M-60-24000 SWIVEL JOINT ASS'Y |
| PC05, PC07 |
| 703-08-33620 SWIVEL JOINT ASS'Y |
| PC300, PC300HD, PC300LL, PC340, PC350, PC360, PC380, PC400, PC450 |
| 703-08-33650 SWIVEL JOINT ASS'Y |
| PC300, PC300HD, PC300LL, PC340, PC350, PC350LL, PC360, PC400, PC450 |
| 703-04-12130 SWIVEL JOINT ASS'Y |
| PC05, PC07 |
| 703-09-33100 SWIVEL JOINT ASS'Y |
| PC200, PC210, PC220, PC240 |
| 703-17-63900 SWIVEL JOINT ASS'Y |
| LW160 |
| 703-17-63901 SWIVEL JOINT ASS'Y |
| LW200L |
| 703-12-23900 SWIVEL JOINT ASS'Y |
| PC400 |
| 703-10-33610 SWIVEL JOINT ASS'Y |
| PC200, PC228, PC228US |

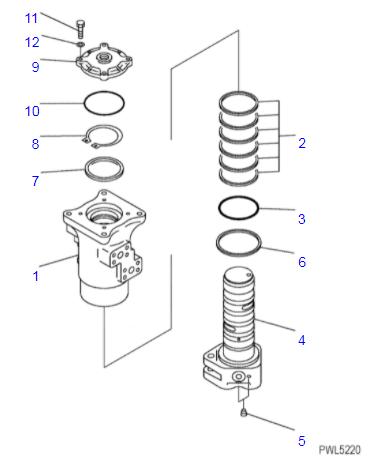

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 703-08-33610 | [1] | SWIVEL JOINT ASS'Y Komatsu | 37 kg. | |
| ["Field_2: DBH0001~"] analogs:["7030833631", "7030833630"] |$1. | ||||
| 2 | 703-08-95620 | [6] | SEAL Komatsu China | 0.01 kg. |
| ["Field_2: DBH0001~"] analogs:["7030895611"] | ||||
| 3 | 07000-15080 | [1] | O-RING Komatsu China | 0.009 kg. |
| ["Field_2: DBH0001~"] analogs:["0700005080"] | ||||
| 5 | 703-13-98930 | [2] | PLUG Komatsu China | |
| ["Field_2: DBH0001~"] | ||||
| 6 | 703-09-98130 | [1] | SEAL Komatsu OEM | 0.005 kg. |
| ["Field_2: DBH0001~"] | ||||
| 7 | 703-08-94510 | [1] | RING Komatsu | 0.09 kg. |
| ["Field_2: DBH0001~"] | ||||
| 8 | 04064-07525 | [1] | RING SNAP Komatsu | 0.026 kg. |
| ["Field_2: DBH0001~"] | ||||
| 10 | 07000-12105 | [1] | O-RING Komatsu OEM | 0.004 kg. |
| ["Field_2: DBH0001~"] analogs:["0700002105"] | ||||
| 11 | 01010-80835 | [4] | BOLT Komatsu | 0.019 kg. |
| ["Field_2: DBH0001~"] | ||||
| 12 | 01643-30823 | [4] | WASHER Komatsu | 0.004 kg. |
| ["Field_2: DBH0001~"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] |
-
We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Our service
1. Packaging is neutral packing or customized packing
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable
6. High quality and factory price.
7. 100% ensured the quality
