XJBN-00557 XJBN-00556 Valve Plate For Hyundai R360-7 R450-7 Hydraulic Pump

Price Negotiable
Price: Negotiable
MOQ: 1 PCS
Delivery Time: 3-7 working days
Brand: OEM
Product Description
  • XJBN-00557 XJBN-00556 Valve Plate Applied To Hyundai R360-7 R450-7 Hydraulic Pump





  • Specifiion



Parts No. XJBN-00557 XJBN-00556
Item Name VAVLE PLATE
Model No. R360-7 R450-7 R500-7
MACHINE HYUNDAI EXCAVATOR
MOQ 1 piece
Design made in china
Port guangzhou
Warranty 6 months






  • Applicable models

7-SERIES CRAWLER EXCAVATOR R320LC7 R320LC7A R360LC7 R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A Hyundai

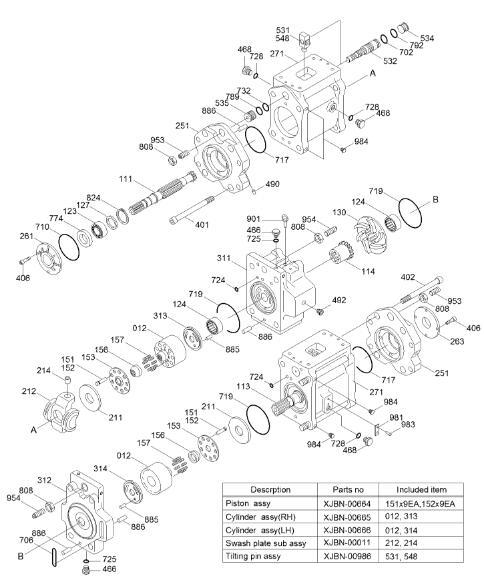

  • alog parts list
Pos. Part No Qty Parts name Comments
*. 31NB-10020 [1] MAIN PUMP *-1,-2
*. 31NB-10022 [1] MAIN PUMP *-1,-2
*-1. @ [1] MAIN PUMP UNIT
S012. XJBN-00680 [2] BLOCK-CYLINDER
111 XJBN-00976 [1] SHAFT-DRIVE(F)
113 XJBN-00977 [1] SHAFT-DRIVE(R)
114 XJBN-00572 [1] COUPLING-SPLINE
123 XJBN-00571 [2] BEARING-ROLLER
124 XJBN-00978 [2] BEARING-NEEDLE
127 XJBN-00569 [3] SPACER-BEARING
130 XJBN-00568 [1] BOOSTER
NS151. XJBN-00681 [18] PISTON
NS152. XJBN-00682 [18] SHOE
153 XJBN-00683 [2] PLATE-SET
156 XJBN-00564 [2] BUSHING-SPHERICAL
157 XJBN-00541 [18] SPRING-CYLINDER
211 XJBN-00023 [2] PLATE-SHOE
S212. XJBN-00012 [2] PLATE-SWASH
S214. XJBN-00013 [2] BUSHING-TILTING
251 XJBN-00560 [2] SUPPORT-S.P.
261 XJBN-00025 [1] COVER(FR)-SEAL
263 XJBN-00979 [1] COVER(RR)-SEAL
N271. XJBN-00980 [2] CASING-PUMP
271 XJBN-01524 [2] CASING-PUMP
311 XJBN-00559 [1] COVER-VALVE(F)
312 XJBN-00558 [1] COVER-VALVE(R)
S313. XJBN-00557 [1] PLATE-VALVE(R)
S314. XJBN-00556 [1] PLATE-VALVE(L)
401 XJBN-00028 [4] SCREW
402 XJBN-00555 [4] SCREW-HEX SOC HD
406 XJBN-00355 [8] SCREW-HEX SOC HD
466 XJBN-00356 [4] PLUG
468 XJBN-00357 [4] PLUG
490 XJBN-00032 [32] PLUG
492 XJBN-00234 [5] PLUG
NS531. XJBN-00981 [2] PIN-TILTING
532 XJBN-00703 [2] PISTON-SERVO
534 XJBN-00034 [2] STOPPER(L)
535 XJBN-00035 [2] STOPPER(S)
NS548. XJBN-00360 [2] PIN-FEED BACK
702 XJBN-00040 [2] O-RING
706 XJBN-00982 [1] O-RING
710 XJBN-00983 [2] O-RING
717 XJBN-00984 [2] O-RING
719 XJBN-00985 [3] O-RING
724 XJBN-00902 [15] O-RING
725 XJBN-00903 [10] O-RING
728 XJBN-00905 [4] O-RING
732 XJBN-00047 [2] O-RING
774 XJBN-00906 [1] SEAL-OIL
789 XJBN-00049 [2] RING-BACK UP
792 XJBN-00050 [2] RING-BACK UP
808 XJBN-00364 [4] NUT
824 XJBN-00052 [2] RING-SNAP
885 XJBN-00053 [2] PIN-2
886 XJBN-00365 [5] PIN-SPRING
901 XJBN-00055 [2] BOLT-EYE
953 XJBN-00056 [2] SCREW-SET
954 XJBN-00553 [2] SCREW-SET
981 XJBN-00156 [1] NAME PLATE
983 XJBN-00341 [2] PIN
984 XJBN-01181 [8] SCREW-SET
*-2. @ [1] REGULATOR-FRONT SEE 4020
*-3. @ [1] REGULATOR-REAR SEE 4030
S011. XJBN-00664 [2] PISTON ASSY SEE ILLUST
S013. XJBN-00665 [1] CYLINDER ASSY-RH SEE ILLUST
S014. XJBN-00666 [1] CYLINDER ASSY-LH SEE ILLUST
S030. XJBN-00011 [2] SWASH PLATE ASSY SEE ILLUST
S530. XJBN-00986 [2] TILTING PIN ASSY SEE ILLUST
