1849508 2661303 Excavator Hose 141-1313 275-1384 184-9508 266-1303 1411313 2751384

• 141-1313 275-1384 184-9508 266-1303 1411313 2751384 1849508 2661303 Excavator Hose

• Specifiion

• Applicable models

EXCAVATOR 330D 330D L 330D LN 336D 336D L 336D LN 336D2 336D2 L 340D L 340D2 L 345B II 345B II MH 345C 345C L 345C MH
MOBILE HYD POWER UNIT 345C L
SHOVEL LOGGER 345C
WHEELED EXCAVATOR W345B II W345C MH

• More hoses for machine

2699761 HOSE AS
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E L, 340D L, 340D2 L

2302930 HOSE-RADIATOR
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

2302931 HOSE-RADIATOR
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

2302933 HOSE
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D
2302940 HOSE
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

2302941 HOSE
330D, 330D FM, 330D L, 330D LN, 330D MH, M330D

2813515 HOSE
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L

3244169 HOSE
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D
2236915 HOSE AS
325C, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN

2391892 HOSE AS
330D, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F L

2026758 HOSE AS
325C, 330C, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L

1940105 HOSE AS
330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D

3075260 HOSE AS
345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, W345C MH

3075257 HOSE AS
345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, W345C MH

2724327 HOSE AS
345C, 345C L, 345C MH, 345D L, W345C MH

2608201 HOSE AS
345C, 345C L, 345C MH, 345D L, W345C MH
2607848 HOSE AS
330D FM, 345C, 345C MH, W345C MH

2685471 HOSE AS
345C, 345C MH, W345C MH

2270657 HOSE AS
345C, 345C MH, W345C MH

2270656 HOSE AS
345C, 345C MH, W345C MH
2270539 HOSE AS
345B II, 345B II MH, 345C, 345C L, 345C MH, W345B II, W345C MH

2125317 HOSE AS
345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, W345B II, W345C MH

2125316 HOSE AS
345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, W345B II, W345C MH

2125307 HOSE AS
345B II, 345B II MH, 345C, 345C L, 345C MH, W345B II, W345C MH

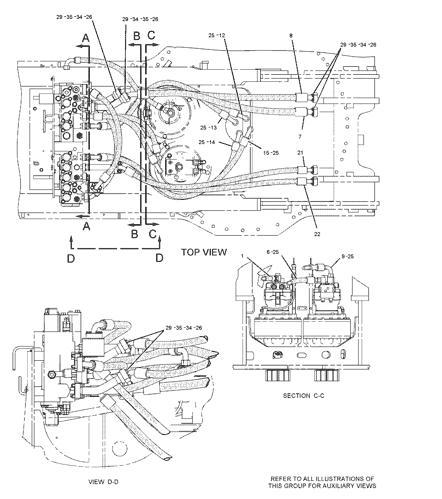

•  Parts list diagram

Pos.Part NoQtyParts nameComments
1. 141-1313 I [1] HOSE AS
2. 168-9595 [1] TUBE AS
3. 170-8553 M [4] BOLT-SOCKET HEAD (M12X1.75X40-MM)
4. 173-9597 [4] FLANGE AS
(EACH INCLUDES)
5K-9090 [1] SEAL-O-RING
128-7624 [1] FLANGE-SPECIAL
5. 176-4692 [2] TUBE AS
6. 212-5307 I [1] HOSE AS
7. 212-5316 I [1] HOSE AS
8. 212-5317 I [1] HOSE AS
9. 227-0539 I [1] HOSE AS
10. 227-0616 [1] TUBE AS
11. 227-0617 [1] FLANGE
12. 227-0656 I [1] HOSE AS
13. 227-0657 I [1] HOSE AS
14. 227-0658 I [1] HOSE AS
15. 227-0659 I [1] HOSE AS
16. 245-5075 [1] BLOCK
17. 245-5076 [1] FLANGE
18. 245-5077 I [1] HOSE AS
19. 245-5078 I [1] HOSE AS
20. 245-5126 [2] FLANGE
21. 253-0324 I [1] HOSE AS
22. 253-0325 I [1] HOSE AS
23. 101-7402 M [4] BOLT-SOCKET HEAD (M12X1.75X30-MM)
24. 108-1784 M [4] BOLT-SOCKET HEAD (M12X1.75X120-MM)
25. 1P-3703 [22] SEAL-RECTANGULAR
26. 1P-3704 [6] SEAL-RECTANGULAR
27. 1P-3705 [4] SEAL-RECTANGULAR
28. 1P-3706 [1] SEAL-RECTANGULAR
29. 1P-5767 [12] FLANGE-HALF
30. 5P-0047 [2] COVER
31. 6V-0400 [20] FLANGE-HALF
32. 8T-4184 M [12] BOLT (M12X1.75X45-MM)
33. 8T-4193 M [8] BOLT (M16X2X50-MM)
34. 8T-4194 M [52] BOLT (M12X1.75X50-MM)
35. 8T-4223 [64] WASHER-HARD (13.5X25.5X3-MM THK)
36. 8T-4910 M [8] BOLT (M12X1.75X60-MM)
37. 8T-4956 M [16] BOLT (M12X1.75X35-MM)
I REFER TO HYDRAULIC INFORMATION SYSTEM
M METRIC PART

• We could supply the following spare parts.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Strong part number database.

If you can provide the right model and part number, we can supply the right product.

2.Professional and experienced salesperson.

Our founder has been into this field for more than 6 years, with rich experiences.

3.Strict and complete company rules.

We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.

4.Good management system.

No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.

5.Good service attitude.

As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.

• Packing and Delivery

Packaging Details

Plastic Bag & Plastic Box , Customize , Or customer's Brand

Delivery Time

5-7 day after received the payment

Type of Shipping :

EMS , DHL , TNT , UPS , FeDex , By air & By sea .

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Our service

1.Professional technology support

2.After-sale service

3.24 hours on-line service

4.Help you to solve your excavator problems
