2902440-0396A Gear Pump For Hyundai R210LC3 Excavator Hydraulic Pump

Name: 2902440-0396A Gear Pump For Hyundai R210LC3 Excavator Hydraulic Pump
Brand: Guangzhou Anto Machinery Parts Co.,Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 PCS

Delivery Time: 3-7 working days

Brand: OEM

Product Description

2902440-0396A Gear Pump Applied To Hyundai R210LC3 Excavator Hydraulic Pump

Spec Sheet

Excavator spare parts name	hydraulic gear pump
Equipment Model	R210W3 R210LC3 R250LC3
Parts egory	Excavator hydraulic pump parts
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock for urgent delivery
Delivery Lead time	1-3 days

Appliion

3 SERIES WHEEL EXCAVATOR R200W3
3-SERIES CRAWLER EXCAVATOR R210LC3 R210LC3H R250LC3
FORESTRY MACHINE 33HDLL R210LC3LL
OLD CRAWLER EXCAVATOR R200LC
OLD WHEEL EXCAVATOR R200W2 Hyundai

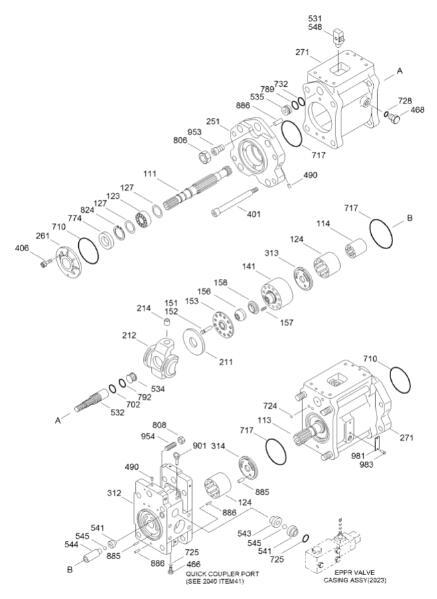

Parts list Diagram

Pos. Part No Qty Parts name Comments

*. 31EM-10010 [1] MAIN PUMP *-1∼*-4

*. 31EM-10100 [1] MAIN PUMP-LOW EMISSION *-1∼*-4

N*-1. K3V112DT-1RER [1] MAIN PUMP UNIT

111. 2933800774 [1] SHAFT-DRIVE(F)

113. 2933800883 [1] SHAFT-DRIVE(R)

114. 2953801763 [1] COUPLING-SPLINE

123. PNUP308K [2] BEARING-ROLLER

124. PRNA6906 [2] BEARING-NEEDLE

127. 38800-127 [4] SPACER-BEARING

N141. 2933800787 [2] BLOCK-CYLINDER

151. @ [18] PISTON

152. @ [18] SHOE

153. 2943800463 [2] PLATE-SET

156. 2953801765 [2] BUSHING

157. 2953801769 [18] SPRING-CYLINDER

158. 2953801764 [2] SPACER

211. 68710-00-211 [2] PLATE-SHOE

N212. 2933800813 [2] PLATE-SWASH

214. P1R2025125 [2] BUSHING

251. 2923800809 [2] SUPPORT-SP

261. 2943800464 [1] COVER-FRONT

271. 2923800807 [2] CASING-PUMP

312. 2923801021 [1] BLOCK-VALVE

313. 3890R-313N [1] PLATE-VALVE-RH

314. 3890L-314N [1] PLATE-VALVE-LH

401. 2953801767 [8] SCREW

406. OSBM820 [4] SCREW-HEX SOC HD

466. OVP14 [4] PLUG

468. OVP34 [4] PLUG

490. PBP116-2403 [18] PLUG

N531. 2943800517 [2] PIN-TILTING

532. 2943800462 [2] PISTON-SERVO

534. 2953801761 [2] STOPPER(L)

535. 2953801762 [2] STOPPER(S)

N541. 2953802029 [4] SEAT

N543. 2953802030 [2] STOPPER(1)

N544. 2953802043 [2] STOPPER(2)

545. ODW732 [4] BALL-STEEL

N548. 2953802202 [2] PIN-FEED BACK

702. OORBG35 [2] O-RING

710. OORBG95 [1] O-RING

717. OORBG145 [4] O-RING

724. OORBP8 [16] O-RING

725. OORBP11 [4] O-RING

728. OORBP24 [4] O-RING

732. OORBP18 [2] O-RING

774. PTCV40V [1] SEAL-OIL

789. OT2BP18 [2] RING-BACK UP

792. OT2BG35 [2] RING-BACK UP

806. ORNM16 [2] NUT

808. ORNM20 [2] NUT

824. OSR40 [2] RING-SNAP

885. PJR812 [2] PIN-VALVE PLATE

886. OSPV614 [4] PIN-SPRING

901. OEBM10 [2] BOLT-EYE

953. PSSSM1630 [2] SCREW-SET

954. 2953801768 [2] SCREW-SET

981. PNPA-2550A [1] PLATE-NAME

983. OSK2548 [2] PIN

*-2. 293G-9C39 [2] REGULATOR ASSY

*-3. 2902440-0396A [1] GEAR PUMP ASSY

*-4. 2931100-0056 [1] EPPR VLV CASING ASSY

011. 3853802464 [2] PISTON ASSY

013. 2953801893 [1] CYLINDER ASSY-RH

014. 2953801894 [1] CYLINDER ASSY-LH

030. 2953801990 [2] SWASH PLATE ASSY

041. 2953802048 [2] CHECK ASSY 1

042. 2953802049 [2] CHECK ASSY 2

530. 2953801989 [2] TILTING PIN ASSY

Description

Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.

Advantage

1. The pump and valve parts are built to fit to the genuine excavator system.

2. The pump parts and valve are supplied strictly according to the genuine parts alog.

3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
