05/903865 Toothed Ring Gear For JCB JS220 Excavator Swing Gearbox
- 05/903865 Toothed Ring Gear Used For JCB JS220 Excavator Swing Gearbox
- Spec Sheet
| Product name | Swing gearbox ring gear |
| Part number | 05/903865 |
| Model | JS160 JS175 JS200 JS205 JS210 JS220 |
| egory group | JCB Excavator Swing Gearbox |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Appliion
WHEEL EXCAVATOR JS160W JS175W JS200W JS210W JCB
CRAWLER EXCAVATOR JS160 JS175 JS200 JS205 JS210 JS220 JCB
- More other parts for JCB machines
05/903862 Ring Toothed
JNA0239 Ring wiper
20/906212 Ring back-up
332/L8776 Ring
821/10058 Ring snap
821/10056 Ring internal snap
234350 Ring snap
234141 Ring retaining
224083 Ring retaining
230889 JCB
230889 Ring snap
246238 Ring retaining
215183 Ring piston

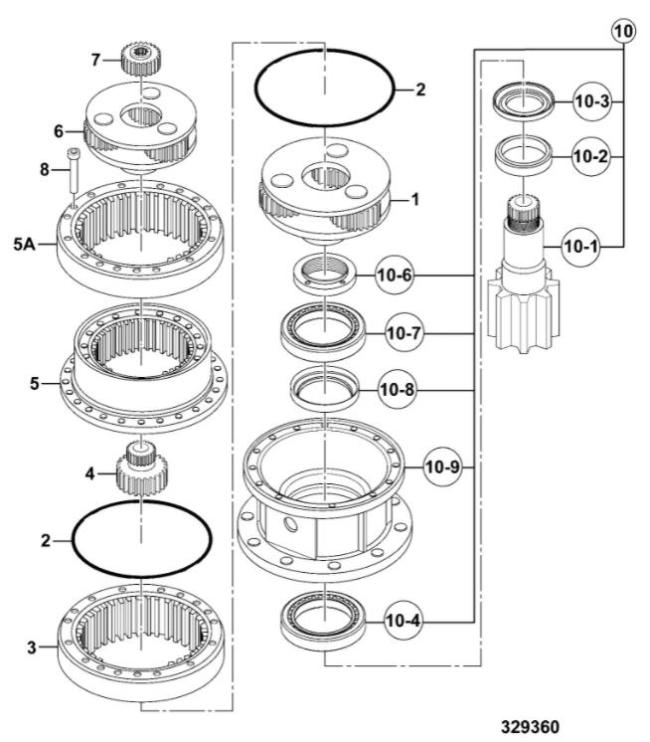

- Parts List Diagram
Gearbox swing
1. 05/903860 [1]
Gear reduction assembly
2. 05/902010 [2]
O Ring
3. 05/903862 [1]
Ring Toothed
4. 05/903863 [1]
Gear Sun
5. 05/903864 [1]
Cover
5A. 05/903865 [1]
Ring Toothed
6. 05/903866 [1]
Gear Reduction Assembly
7. 05/903867 [1]
Gear Sun
8. 05/903868 [16]
Screw M16 x 120mm
10. 05/903873 [1]
Gear output assembly
10-1. 05/903869 [1]
Shaft pinion 14 teeth
10-2. 05/903870 [1]
Spacer
10-3. 05/903871 [1]
Ring
10-4. 05/903872 [1]
Bearing
10-6. 05/903874 [1]
Nut
10-7. 05/903875 [1]
Bearing
10-8. 05/903876 [1]
Seal ring 100 x 130 x 12mm
10-8. 333/C7880 [1]
Seal 100x140x13 LARGER SIZE
10-9. 05/903877 [1]
Housing
- Description
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
