708-3S-14290 7083S14290 Piston Sub Assy For PC55MR-3 Excavator Hydraulic Pump Parts
- 708-3S-14290 7083S14290 Piston Sub Assy For PC55MR-3 Excavator Hydraulic Pump Parts
- Spec Sheet
| Excavator spare parts name | Piston shoe assy |
| Equipment Model | PC35 PC45 PC55 D31 D37 D475 WA470 |
| Parts egory | Excavator hydraulic pump parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock for urgent delivery |
| Delivery Lead time | 1-3 days |
- Appliion
BULLDOZERS D155AX D275A D31EX D31PX D375A D37EX D37PX D39EX D39PX D475A D475ASD D65EX D65PX D65WX
DUMP TRUCKS HM300 HM400
EXCAVATORS PC27MR PC30MR PC35MR PC45MR PC490 PC55MR
GRADERS GD755
WHEEL DOZERS WD600
WHEEL LOADERS WA380 WA430 WA470 WA480 WA500 WA600 Komatsu
- More Piston parts for KOMATSU machines
| 707-36-22560 PISTON |
| D475A, D475ASD |
| 714-07-42611 PISTON |
| WA470, WA480 |
| 708-3S-14270 PISTON, SUBASSEMBLY |
| PC27MR, PC30MR, PC35MR, PC45MR, PC55MR |
| 707-36-12840 Piston |
| D61EX, D61EXI, D65EX, D65PX, D65WX, KOMTRAX |
| 708-2L-33430 KOMATSU |
| 708-2L-33430 PISTON SUB ASS'Y |
| BOTTOM, D155A, D65EX, D65PX, D65WX, HB205, HB215, KOMTRAX, PC1250, PC1250SP, PC200, PC2000, PC220, PC228, PC228US, PC270, TRAVEL |
| 707-36-11550 PISTON |
| PC40MR, PC45MR, PC50MR, PC55MR, PC58UU |
| 421-33-32123 PISTON |
| AIR, WA400, WA430, WA450, WA470 |
| 708-2J-04170 PISTON ASSEMBLY, SERVO |
| PC490 |
| 706-8F-41160 Piston Assembly |
| D31EX, D31PX, D37EX, D37PX, D39EX, D39PX |
| 566-43-15460 PISTON |
| HD320, HD325, WS16 |
| 707-36-10810 PISTON |
| PC110R, PC75R, PC95R, PW110R, PW75R, PW95R, PW98MR |
| 707-36-10181 PISTON |
| PC60U |
| 131-10-15181 PISTON |
| D50P, D50S, GD30, GD37 |
| TZ300B2102-00 PISTON ASS'Y |
| PC30, PC40 |
| 562-13-47210 PISTON |
| AFP49, HD1500 |
| 707-36-70930 PISTON |
| CS360, D155A, D20A, D20AG, D20P, D20PG, D20PL, D20PLL, D21A, D21AG, D21P, D21PG, D21PL, D355A, GC380, GC380F, GD305A, GD355A, GD405A, GD555 |
| 232-43-31320 PISTON |
| GD30, GD31, GD31RC, GD37 |
| 235-44-13150 PISTON,RELAY |
| GD505A, GD525A, GD605A, GD625A, GD725A, GD805A, GD825A |
| 714-10-14650 PISTON |
| LW100, PW128UU |
| 195-63-42161 PISTON |
| D150A, D155A, D355A |
| 3RA-64-16241 PISTON |
| FB10/13RL, FB10/13RS, FB10RL/13RL, FB14, FB14RL, FB15/18RJ, FB15/18RJW, FB15RJ/18RJ, FB15RL/18RL, FB15RS/18RS, FB20RL/25RL |

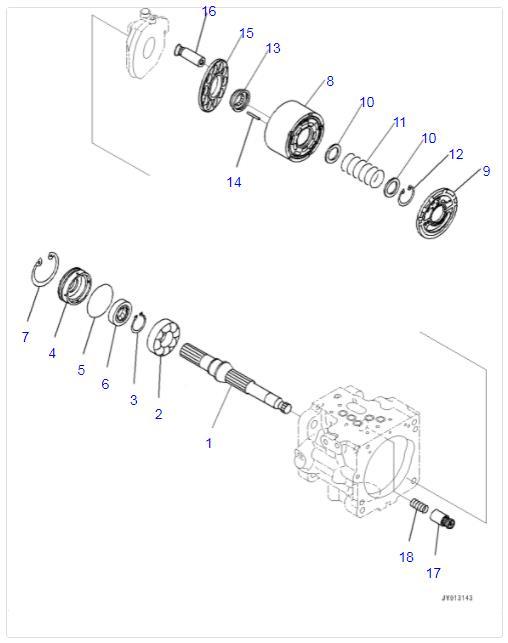

- Parts List Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 708-3S-00942 | [1] | Pump Assembly Komatsu China | ||
| ["SN: 16501-17434"] |$0. | ||||
| 1 | 708-3S-12121 | [1] | Shaft Komatsu China | |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 2 | 708-3S-12210 | [1] | Bearing Komatsu | 0.4 kg. |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 3 | 708-21-12840 | [1] | Ring, Snap Komatsu China | |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 4 | 708-3S-12140 | [1] | Holder Komatsu | 0.215 kg. |
| ["SN: 16501-17434"] | ||||
| 5 | 207-09-11140 | [1] | O-ring Komatsu | 0.002 kg. |
| ["SN: 16501-17434"] | ||||
| 6 | 708-3S-12150 | [1] | Seal, Oil Komatsu | 0.02 kg. |
| ["SN: 16501-17434"] | ||||
| 7 | 04065-06220 | [1] | Ring, Snap Komatsu | 0.013 kg. |
| ["SN: 16501-17434"] | ||||
| 8 | 708-3S-13530 | [1] | Cylinder Block Komatsu China | |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 9 | 708-3S-13490 | [1] | Plate, Valve Komatsu China | |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 10 | 708-3S-13160 | [2] | Washer Komatsu China | |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 11 | 708-3S-13430 | [1] | Spring Komatsu | 0.07 kg. |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 12 | 04065-03515 | [1] | Ring, Snap Komatsu | 0.003 kg. |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 13 | 708-1S-13370 | [1] | Guide, Retainer Komatsu | 0.045 kg. |
| ["SN: 16501-17434", "SCC: C2"] analogs:["7083S13370", "R7081S13370"] | ||||
| 14 | 708-1S-13380 | [3] | Pin Komatsu | 0.06 kg. |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 15 | 708-3S-13410 | [1] | Retainer, Shoe Komatsu | 0.24 kg. |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 16 | 708-3S-13520 | [10] | Piston Subassembly Komatsu | 0.08 kg. |
| ["SN: 16501-17434", "SCC: C2"] | ||||
| 17 | 708-3S-14290 | [1] | Piston Subassembly Komatsu | 0.087 kg. |
| ["SN: 16501-17434"] analogs:["7081S14230", "7083S14250"] | ||||
| 18 | 708-1S-14241 | [1] | Spring Komatsu | 0.01 kg. |
| ["SN: 16501-17434", "SCC: C2"] |
- Description
Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump parts and valve are supplied strictly according to the genuine parts alog.
3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
