1568143 1953510 156-8143 195-3510 Joystick Handle For Excavator Spare Parts
-
1568143 1953510 156-8143 195-3510 Joystick Handle For Excavator Spare Parts
-
Specifiion
| Appliion | Mini Excavator Spare Parts |
| Name | Joysticl handle |
| Parts No | 156-8143 195-3510 |
| Model | 301.5 302.5 303.5 304.5 |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Appliion
BACKHOE LOADER 420D 430D 432D 442D 446D
MINI HYD EXCAVATOR 301.5 302.5
MULTI TERRAIN LOADER 247 267 287
SKID STEER LOADER 216 236
TRACK LOADER 953C 963B 963C 973 973C erpillar
- More other handles supplied
| 2521862 HANDLE AS |
| 120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 236D, 242D, 246C, 246D, 256C, 257D, 259D, 262C, 262C2, 262D, 272C, 272D, 272D ... |
| 2847465 HANDLE |
| 301.4C, 301.5, 301.6C, 301.7D, 301.7D CR, 302.2D, 302.4D, 302.5, 302.5C, 302.7D |
| 1568139 HANDLE-LH |
| 301.5, 302.5, 303.5, 304.5 |
| 1753325 HANDLE AS |
| 301.5, 302.5, 303.5, 304.5 |
| 1991234 HANDLE AS |
| 301.5, 302.5 |
| 1572202 HANDLE AS-LH |
| 301.5, 302.5, 303.5, 304.5 |
| 1572204 HANDLE AS-RH |
| 301.5, 302.5, 303.5, 304.5 |
| 2605545 HANDLE AS |
| 301.5, 302.5, 303, 303.5, 304, 304.5, 305 |
| 2605543 HANDLE AS |
| 301.5, 302.5, 303, 303.5, 304, 304.5, 305 |
| 2602648 HANDLE AS |
| 303, 303.5D, 304, 304.5, 304D CR, 305 |
| 2813849 HANDLE |
| 303.5, 303.5C, 303C CR, 304C CR, 305C CR, BH150 |
| 2994696 HANDLE-DOOR |
| 906H, 906H2, 907H, 907H2, 908H, 908H2, 910K, 914K |
| 1641250 HANDLE |
| 416D, 416E, 416F, 420D, 420E, 420F, 422E, 424D, 428D, 428E, 430D, 430E, 430F, 432D, 432E, 434E, 438D, 442D, 442E, 444E, 446D, 450E, 450F, 621H, 725C, 730C, 735B, 740B |
| 2025979 HANDLE |
| 416D, 420D, 424D, 428D, 430D, 432D, 438D, 442D, 446D |
| 1641282 HANDLE |
| 416D, 416E, 420D, 420E |
| 3W9225 HANDLE AS |
| 826G II, 826H, 966G, 966G II, 966H, 972G II, 972H, 980G, 980G II, 980H, 980M, 982M, D4H, TH103, TH210, TH215, TH62, TH63, TH82, TH83 |
| 1733681 HANDLE |
| 35 |
| 2194379 HANDLE |
| 216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 242B, 242B3, 247, 247B, 247B3, 248, 252B, 252B3, 257B, 257B3, 259B3, 267, 267B, 268B, 287 |
| 1479795 HANDLE |
| TH210, TH215 |
| 2060830 HANDLE AS |
| TH210, TH215 |
| 2060829 HANDLE AS |
| TH210, TH215 |
| 2028288 HANDLE |
| TH210, TH215 |
| 2092616 HANDLE |
| 267, 267B |
| 2058107 HANDLE AS |
| 267, 267B |

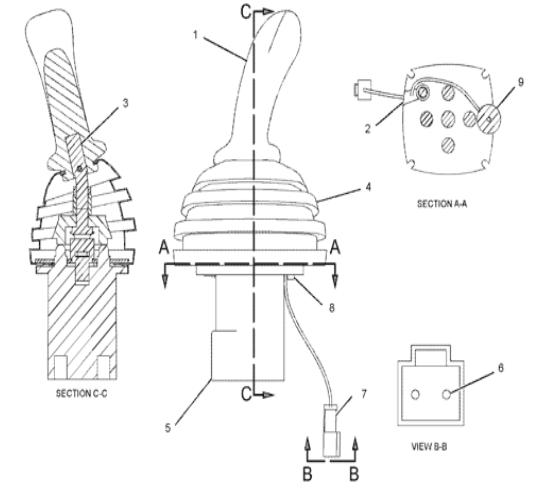

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 195-3510 | [1] | HANDLE AS-CONTROL (LH) | |
| 2 | 142-7508 C | [1] | GROMMET | |
| 3 | 158-3770 | [1] | KIT-PILOT VALVE (LEVER) | |
| (INCLUDES NUT, LEVER & PIN SPRING) | ||||
| 095-1207 M | [1] | NUT (M12X1.75-THD) | ||
| 4 | 173-0703 C | [1] | BOOT | |
| 5 | 173-2430 CY | [1] | VALVE GP-PILOT | |
| 6 | 8T-8729 | [2] | PIN-CONNECTOR (16-GA TO 18-GA) | |
| 7 | 102-8802 | [1] | KIT-RECEPTACLE (2-PIN) | |
| (KIT INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 8 | 8T-9405 M | [1] | BOLT-SOCKET HEAD (M4X0.7X16-MM) | |
| 9 | 172-0970 C | [1] | COIL AS (12-VDC) | |
| 8T-8729 | [2] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| 102-8802 | [1] | KIT-RECEPTACLE (2-PIN) | ||
| (KIT INCLUDES RECEPTACLE AS & WEDGE) | ||||
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
