31N6-40051 31N6-40050 31N6-40031 31N6-40030 Travel Motor Assy HYUNDAI R210LC7 Final Drive
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
HYUNDAI
Product Description
- 31N6-40051 31N6-40050 31N6-40031 31N6-40030 Travel Motor Assy HYUNDAI R210LC7 Final Drive
- Spec Sheet
| spare parts name | final drive assy |
| Equipment Model | R210LC7 R215LC7 R210LC9 R220LC9 R225LC9 |
| Parts egory | excavator track drive |
| Spare parts Condition | Brand new, OEM |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- More travel motor for HYUNDAI excavator
| XKAH-00373 TRAVEL MOTOR UNIT |
| R210LC7, R210NLC7 |
| XKAH-00455 TRAVEL MOTOR UNIT |
| R210LC3H, R210LC7 |
| 31N6-40050 TRAVEL MOTOR ASSY |
| R210LC7, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| 31N6-40051 TRAVEL MOTOR ASSY |
| R210LC7, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| 31N6-40030 TRAVEL MOTOR UNIT |
| R210LC7, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| 31N6-40051BG TRAVEL MOTOR ASSY |
| R210LC7, R210LC7A, R210LC7H, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD220-7 |
| 31N6-40031BG TRAVEL MOTOR UNIT |
| R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD220-7 |
| 31N6-40060 TRAVEL MOTOR ASSY |
| R210LC7, R210LC7H, RC215C7, RC215C7H |
| 31N6-40060BG TRAVEL MOTOR ASSY |
| R210LC7, R210LC7A, R210LC7H, RC215C7, RC215C7H |
| 31N6-40052BG TRAVEL MOTOR ASSY |
| R210LC7, R210LC7A, R210LC7H, R210NLC7A, R215LC7, RD220-7 |
| 31N6-40032 TRAVEL MOTOR UNIT |
| R210LC7, R210LC7A, R210LC7H, R210NLC7A, R215LC7, RD210-7, RD210-7V, RD220-7 |
| 31N6-40061BG TRAVEL MOTOR ASSY |
| R210LC7, R210LC7A, R210LC7H |
| 31N6-40051BG TRAVEL MOTOR ASSY |
| R210LC7, R210LC7A, R210LC7H, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD220-7 |
| 31N6-40030 TRAVEL MOTOR UNIT |
| R210LC7, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| 31N6-40051 TRAVEL MOTOR ASSY |
| R210LC7, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| 31N6-40050 TRAVEL MOTOR ASSY |
| R210LC7, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| XKAH-00455 TRAVEL MOTOR UNIT |
| R210LC3H, R210LC7 |
| XKAH-00373 TRAVEL MOTOR UNIT |
| R210LC7, R210NLC7 |
| 31EM-40011 TRAVEL MOTOR ASSY |
| R210LC3H, R210LC7 |
| 31N6-40011 TRAVEL MOTOR ASSY |
| R210LC3H, R210LC7, R210NLC7 |
| 31N6-40010 TRAVEL MOTOR ASSY |
| R210LC3, R210LC3H, R210LC7 |
| 31N6-45012 TRAVEL MOTOR |
| R200W7, R200W7A, R210W9S |
| 31N6-45011 TRAVEL MOTOR |
| R200W7, R200W7A |
| 31N6-45010 TRAVEL MOTOR |
| R200W7 |
| 31N6-40031BG TRAVEL MOTOR UNIT |
| R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD220-7 |
| 31N6-40060 TRAVEL MOTOR ASSY |
| R210LC7, R210LC7H, RC215C7, RC215C7H |
| 31N6-40060BG TRAVEL MOTOR ASSY |
| R210LC7, R210LC7A, R210LC7H, RC215C7, RC215C7H |
| 31N6-40050BG TRAVEL MOTOR ASSY |
| R210LC7A, R210NLC7A |
| 31N6-40030BG TRAVEL MOTOR UNIT |
| R210LC7A, R210NLC7A |
| XJBN-01471 TRAVEL SPOOL KIT-LH |
| HX220L, HX220NL, HX235L, HX260L, R210LC9, R210NLC9, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A |
| XJBN-01617 TRAVEL SPOOL KIT-RH |
| HX260L, R210LC9, R210NLC9, R235LCR9 |
| 31Q6-40010 TRAVEL MOTOR |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9 |
| XJBN-01526 TRAVEL SPOOL KIT |
| Hyundai |
| 31Q6-41010 TRAVEL MOTOR |
| R210W-9, R210W9MH |
| 31N7-40010 TRAVEL MOTOR |
| R250LC7 |
| XKAH-00482 TRAVEL MOTOR UNIT |
| R250LC7 |

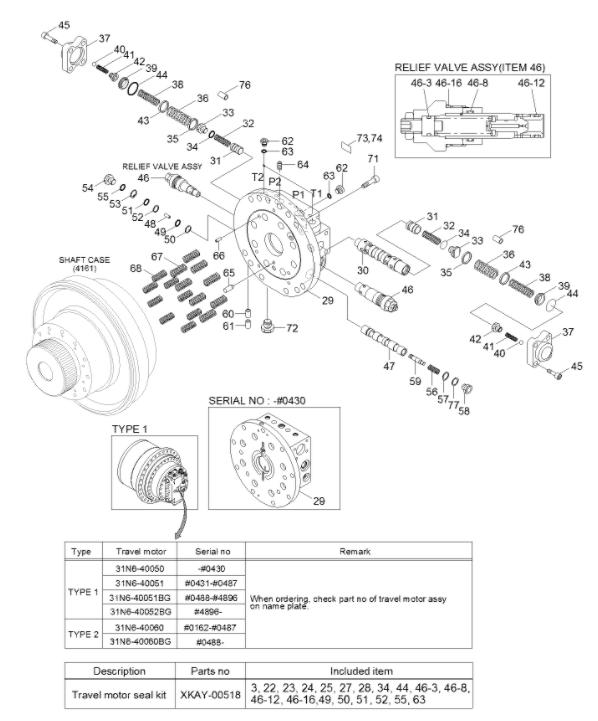

- alog parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N6-40050 | [1] | TRAVEL MOTOR ASSY | |
| *. | 31N6-40051 | [1] | TRAVEL MOTOR ASSY | |
| *. | 31N6-40051BG | [1] | TRAVEL MOTOR ASSY | |
| *. | 31N6-40052BG | [1] | TRAVEL MOTOR ASSY | |
| *-1. | 31N6-40030 | [1] | TRAVEL MOTOR UNIT | |
| *-1. | 31N6-40031 | [1] | TRAVEL MOTOR UNIT | |
| *-1. | 31N6-40031BG | [1] | TRAVEL MOTOR UNIT | |
| *-1. | 31N6-40032 | [1] | TRAVEL MOTOR UNIT | |
| *. | XKAY-02329 | [1] | COVER ASSY-REAR | NEW |
| 29 | XKAY-00475 | [1] | COVER-REAR | OLD |
| 29 | XKAY-02334 | [1] | COVER-REAR | NEW |
| C. | XKAY-00476 | [1] | SPOOL KIT | INCL 30-34 |
| N30. | XKAY-00477 | [1] | SPOOL | |
| N31. | XKAY-00478 | [2] | CHECK | |
| N32. | XKAY-00479 | [2] | SPRING | |
| N33. | XKAY-00480 | [2] | PLUG | |
| KN34. | XKAY-00481 | [2] | O-RING | |
| 35 | XKAY-00482 | [2] | SEAT-SPRING | |
| 36 | XKAY-00483 | [2] | SPRING | |
| 37 | XKAY-00484 | [2] | COVER | |
| 38 | XKAY-00485 | [2] | SPRING | |
| 39 | XKAY-00486 | [2] | SPOOL | |
| 40 | XKAY-00487 | [2] | BALL-STEEL | |
| 41 | XKAY-00488 | [2] | SPRING | |
| 42 | XKAY-00489 | [2] | PLUG | |
| 43 | XKAY-00490 | [2] | SEAT-SPRING | |
| K44. | XKAY-00825 | [2] | O-RING | |
| 45 | XKAY-00492 | [8] | BOLT-WRENCH | |
| 46 | XKAY-00493 | [2] | RELIEF VALVE ASSY | |
| 46-3. | XKAY-00670 | [1] | O-RING | |
| 46-8. | XKAY-00669 | [1] | O-RING | |
| 46-12. | XKAY-00671 | [1] | O-RING | |
| 46-16. | XKAY-00668 | [1] | O-RING | |
| 47 | XKAY-00494 | [1] | SPOOL | |
| 48 | XKAY-00826 | [1] | GUIDE | |
| K49. | XKAY-00827 | [1] | O-RING | |
| K50. | XKAY-00497 | [1] | RING-BACK UP | |
| K51. | XKAY-00828 | [1] | O-RING | |
| K52. | XKAY-00499 | [1] | RING-BACK UP | |
| 53 | XKAY-00500 | [1] | RING-SNAP | |
| 54 | XKAY-00501 | [3] | PLUG | |
| K55. | XKAY-00155 | [4] | O-RING | |
| 56 | XKAY-00502 | [1] | SPRING | |
| 57 | XKAY-00503 | [1] | SEAT-SPRING | |
| 58 | XKAY-00504 | [1] | PLUG | |
| 59 | XKAY-00505 | [1] | SPOOL | |
| 60 | XKAY-00506 | [2] | ORIFICE | |
| 61 | XKAY-00507 | [2] | ORIFICE | |
| 62 | XKAY-00508 | [3] | PLUG | |
| K63. | XKAY-00151 | [3] | O-RING | |
| 64 | XKAY-00032 | [1] | PLUG | |
| 65 | XKAY-00509 | [4] | PIN | |
| 66 | XKAY-00510 | [1] | PIN | |
| 67 | XKAY-00511 | [8] | SPRING | |
| 68 | XKAY-00512 | [8] | SPRING | |
| 71 | XKAY-00385 | [16] | BOLT-WRENCH | |
| 72 | XKAY-00515 | [1] | PLUG | |
| 73 | XKAY-00516 | [1] | NAME PLATE | |
| 74 | XKAY-00517 | [2] | RIVET | |
| 76 | XKAY-00519 | [2] | ORIFICE | |
| 77 | XKAY-01097 | [AR] | SHIM | |
| K. | XKAY-00518 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
