4445648 ZX70 Swing Device Gearbox For HITACHI Excavator Swing Reduction Gear
- 4445648 ZX70 Swing Device Gearbox For HITACHI Excavator Swing Reduction Gear
- Spec Sheet
| Product name | Swing reduction gearbox |
| Part number | 4445648 |
| Model | ZX70 ZX80 EG40 EG70 |
| egory group | Excavator Reduction Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Appliion
EG40R EG40R-C EG70R EG70R-3 ZX70 ZX70-HHE ZX80LCK ZX80SB-HCME Hitachi
- More swing drive parts for HITACHI machines
| 4486217 SWING;CIRCLE |
| EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC... |
| 4397256 SWING DEVICE |
| EG40R, EX60-5(LC), EX60BUN-5, EX70LCK-5 |
| 4421247 SWING-DEVICE |
| EG40R, EX60-5(LC), EX60BUN-5 |
| 4470057 SWING-DEVICE |
| ZX70, ZX75UR, ZX75UR-3, ZX75URT, ZX75US-A, ZX75UST, ZX80LCK, ZX80SB-HCME, ZX85US-HCME |
| 9194506 SWING DEVICE |
| ZX160 |
| 9186784 SWING DEVICE ASS'Y |
| ZX330-3G, ZX330-HHE, ZX360H-3G, ZX360LC-HHE |
| (9301482) SWING DEVICE (FRONT) |
| EX1200-6 |
| 9236034 SWING-DEVICE |
| ZX40U-2, ZX40U-3, ZX40U-3U, ZX48U-3, ZX48U-3F, ZX50U-2, ZX50U-3, ZX50U-3F, ZX52U-3, ZX52U-3F |
| 9166468 SWING BEARING |
| EX300-5, EX300-5HHE, EX300LC-5M, EX300LCLL-5, EX300LCLL-5M, EX345USR(LC), EX350H-5, EX350H-5HHE, EX350K-5, EX370-5M, EX370HD-5, EX370LL-5M, EX385USR, ZX330, ZX330-3G, ZX330-HHE, ZX330LC-3G, ZX350H, ZX... |
| 9162693 SWING DEVICE |
| EX225USR(LC), EX225USRK(LC), RX2300 |
| YB60000061 SWING;CIRCLE |
| ZX870-5G, ZX870H-5G, ZX870LC-5B, ZX870LC-5G, ZX870LCH-5G, ZX870LCR-5G |
| 4486217 SWING;CIRCLE |
| EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC... |
| 9293649 SWING-DEVICE |
| ZX870-5G, ZX870H-5G, ZX870LC-5B, ZX870LC-5G, ZX870LCH-5G, ZX870LCR-5G |
| 9195215 SWING DEVICE ASS'Y |
| ZX330-3G, ZX330-HHE, ZX360H-3G, ZX360LC-HHE |
| 9136483 SWING LEVER |
| CX500, CX550 |
| 9118328 SWING DEVICE |
| EX60-2, EX60-3, EX60LCK-3, EX60T-2, EX60WD-2, EX75UR, EX75UR-3, EX75URLC-3 |

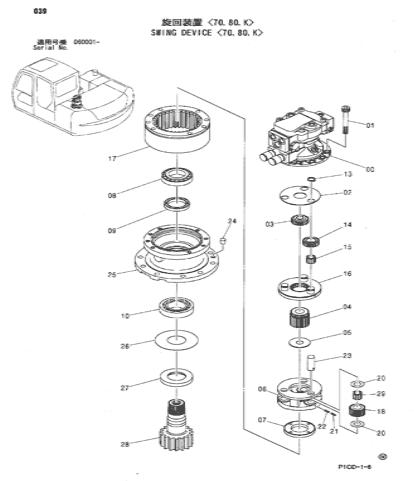

- Parts List Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 4445648 | [1] | SWING-DEVICE | ||
| 0 | 4429255 | [1] | MOTOR;OIL | |
| 1 | 4470166 | [8] | BOLT;SOCKET | |
| 2 | 4468029 | [1] | PLATE | |
| 3 | 4468030 | [1] | GEAR;SUN | |
| 4 | 4468031 | [1] | GEAR;SUN | |
| 5 | 4397238 | [1] | PLATE;THRUST | |
| 6 | 4468032 | [1] | CARRIER | |
| 7 | 4397240 | [1] | NUT | |
| 8 | 4397241 | [1] | BRG.;ROL. | |
| 9 | 4395197 | [1] | SEAL;OIL | |
| 10 | 4468033 | [1] | BRG.;ROL. | |
| 13 | 942517 | [3] | RING;RETAINING | |
| 14 | 4468034 | [3] | GEAR;PLANETARY | |
| 15 | 4397245 | [3] | BRG.;NEEDLE | |
| 16 | 4468035 | [1] | CARRIER | |
| 17 | 4468036 | [1] | GEAR;RING | |
| 18 | 4468037 | [3] | GEAR;PLANETARY | |
| 20 | 4468038 | [6] | PLATE;THRUST | |
| 21 | 4134502 | [3] | PIN;SPRING | |
| 22 | 4395205 | [3] | PIN;SPRING | |
| 23 | 4468039 | [3] | PIN | |
| 24 | 420802 | [1] | CORK | |
| 25 | 4468040 | [1] | HOUSING | |
| 26 | 4468041 | [1] | PLATE;THRUST | |
| 27 | 4468042 | [1] | SPACER | |
| 28 | 4468043 | [1] | SHAFT;PROP. | |
| 29 | 4468044 | [3] | BRG.;NEEDLE |
- Description
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
