251-0580 2510580 Left Console Line Harness Wiring E320D 312D 325D 330D 336D
- 251-0580 2510580 Left Console Line Harness Wiring E320D 312D 325D 330D 336D
- Specifiion
| Excavator spare parts name | Excavator wiring harness |
| Equipment Model | E320D 312D 325D 330D 336D |
| Parts egory | Excavator electrical spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATORS E320D 312D 325D 330D 336D
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3S-2093 | [2] | STRAP-CABLE | |
| 2 | 7K-1181 | [1] | STRAP-CABLE | |
| 3 | 163-6795 | [2] | STRAP-CABLE | |
| 4 | 251-0580 | [1] | HARNESS AS-CONSOLE | |
| 8T-8729 | [4] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| 8T-8730 | [3] | SOCKET-CONNECTOR (16-GA TO 18-GA) | ||
| 3S-2093 | [9] | STRAP-CABLE | ||
| 5P-5995 D | TUBE (0.3-M) | |||
| 7Y-3963 | [2] | TERMINAL-BULLET (FEMALE) | ||
| 7Y-3965 | [2] | TUBE (RECEPTACLE TERMINAL) | ||
| 8T-8737 | [9] | PLUG-SEAL | ||
| 9W-0852 | [2] | PIN-CONNECTOR (14-GA TO 16-GA) | ||
| 9W-0844 | [2] | SOCKET-CONNECTOR (14-GA TO 16-GA) | ||
| 125-7874 E | TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM) | |||
| 125-7875 E | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | |||
| 9X-3402 | [11] | SOCKET-CONNECTOR (16-GA TO 18-GA) | ||
| -OR- | ||||
| 126-1768 | [11] | SOCKET-CONNECTOR (14-GA TO 16-GA) | ||
| 155-2260 | [1] | KIT-CONNECTING PLUG (3-PIN) | ||
| (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) | ||||
| 230-4011 | [1] | PLUG AS-CONNECTOR (2-PIN) | ||
| 264-7029 | [1] | SEAL-CONNECTOR | ||
| 230-5010 | [1] | PLUG AS-CONNECTOR (6-PIN) | ||
| 264-7032 | [1] | SEAL-CONNECTOR | ||
| 239-7352 | [1] | PLUG AS-CONNECTOR (6-PIN) | ||
| 264-7032 | [1] | SEAL-CONNECTOR | ||
| 243-4505 | [1] | RECEPTACLE AS-CONNECTOR (2-PIN) | ||
| 243-4508 | [1] | RECEPTACLE AS-CONNECTOR (6-PIN) | ||
| 247-2693 | [1] | RECEPTACLE AS-CONNECTOR (6-PIN) | ||
| D | ORDER BY THE METER | |||
| E | ORDER BY THE CENTIMETER | |||

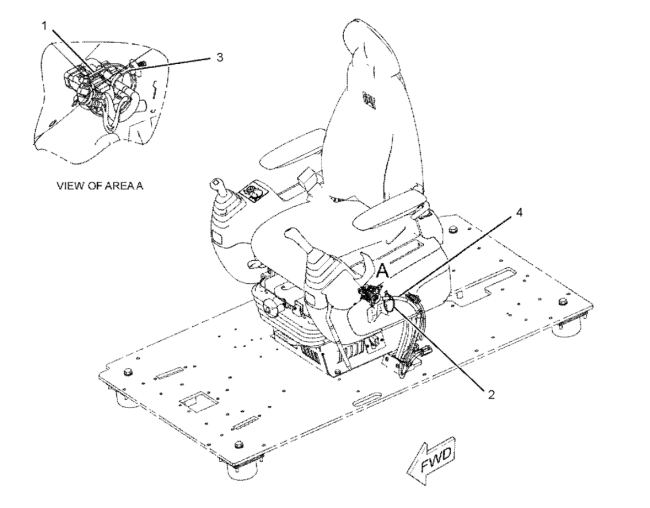

- parts diagram
- Description
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Appliions:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
