Stainless Steel Metal Curtain Mesh 1.5mm For Architectural Decoration
Our company has the most advanced weaving equipment, strong technical force, scientific process, quality inspection system, the use of high-quality raw materials, strict quality control, product specifications complete, quality excellent, the company's main products are: Stainless steel wire mesh,Galvanized wire mesh,PVC mesh, Conveyor belt, Aluminum Alloy screening,Welded wire mesh, Concertina razor barbed wire , Chain link fence , Security fencce and so on. Product specifications complete, excellent quality, trusted by the user, and in the wire mesh market has achieved good reputation
Decorative woven mesh, also named metal fabric or architectural mesh, is weaved with high quality stainless steel wire , aluminum alloy wire, brass wire, copper wire or other alloy materials . It is a new decorative material in the modern industrial and architectural decoration applications.
Decorative Cable Mesh Product Specification
| Design | Open area | Cable wire dia. | Cable pitch | Bar dia. | Bar pitch | Thickness | Weight |
| 1 | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm | 7.74kg/m2 |
| 2 | 43% | 1x2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm | 7.87kg/m2 |
| 3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm | 9.41kg/m2 |
| 4 | 37.20% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm | 2.4kg/m2 |
| 5 | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm | 4.58kg/m2 |
| 6 | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 7 mm | 6.67kg/m2 |
| 7 | 65.90% | 3x2.75 mm | 110 mm | 4 mm | 14.5 mm | 10 mm | 8.5kg/m2 |
| 8 | 67% | 3x3 mm | 110 mm | 4 mm | 14.2 mm | 10 mm | 8.6kg/m2 |
| 9 | 44.30% | 4x0.75 mm | 26.4 mm | 1.5 mm | 3 mm | 3 mm | 5.2kg/m2 |
| 10 | 62% | 4x1 mm | 36 mm | 2 mm | 6.6 mm | 4 mm | 4.55kg/m2 |
| 11 | 40% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7mm | 11.2kg/m2 |
| 12 | 42% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7 mm | 11.8kg/m2 |
Application

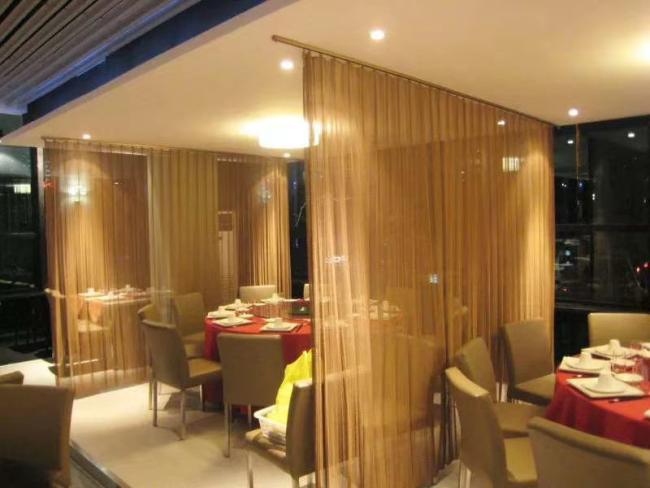

The metal mesh curtain(also named metal coil drapery) is used in multiple scenes
and can exhibit multiple functions. The reason why it has been favored by many
designers for a long time is also because its diversified functions can provide
designers with more design possibilities. In interior design , the metal mesh can
be used for suspended ceiling, wall coverings, indoor partition, space partition,
room dividers&screen etc. In outdoor design, it is also an excellent choice as
the facade.
Wire mesh facades;
Shade screens;
Architecture ceilings;
Metal draperies for walls, partition and isolation screens;
Staircases isolation screen, elevator cabins screen;
Floor covering fabrics;
Other special uses.
