Food Chocolate Enrober Stainless Steel Flat Flex Wire Mesh Conveyor Belt

Introduction

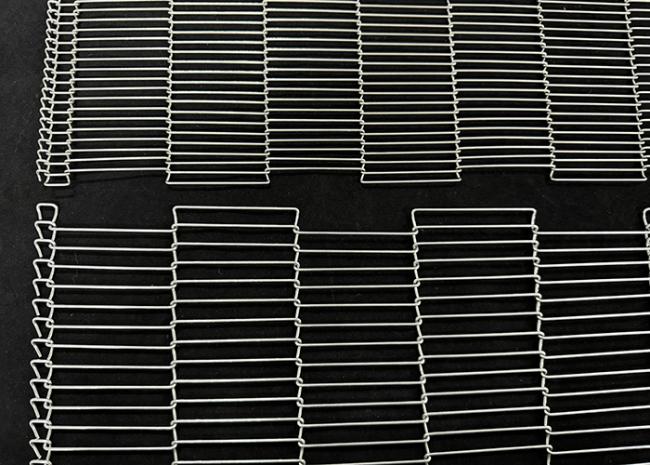

Flat flex conveyor belt is the simplest type among all type of steel mesh conveyor belt. The materials of flat flex conveyor belt are stainless steel, high carbon steel, galvanized steel and other steel wires.

Flat flex conveyor belt is constructed by several loop wires and then be formed different edge. The simple structure make it economical and lightweight. It can help to save cost and reduce downtime.

We can not only provide right belts, but also provide matching sprockets and other components.

Edge Availability

Flat flex conveyor belts are available in three edge Loop Types.
1. With a C-shaped Edge, reduce the ratio of catching and tangling by the belt edge.
2. With a Single Loop Edge, the most popular wire mesh belt edge finish. It is available for wire diameter 1.27 mm or above
3. With a Double Loop Edge, supplied for enrober belts.

Specifications

Feature

● The largest proportion of open-mesh area available up to 86%
● Easy to clean, clean-in-place design
● No-slip, positive drive
● Very low belt mass
● Smallest diameter end rolls and drive rolls
● Positive driven for accurate tracking
● Curved rod network belt to suit different machines

Application

Flat flex conveyor belts find application in a wide range of industries due to their versatility and durability. Here are some common applications of flat flex conveyor belts:

Food Processing: Flat flex conveyor belts are widely used in the food industry for applications such as baking, cooling, freezing, washing, and drying. They are ideal for conveying products like cookies, pizzas, pastries, meats, vegetables, and more.

Industrial Manufacturing: These belts are utilized in various industrial manufacturing processes for conveying items such as automotive parts, electronic components, packaging materials, and other products along production lines.

Heat Treatment: Flat flex conveyor belts are suitable for applications involving heat treatment processes such as annealing, quenching, and tempering due to their ability to withstand high temperatures.

Overall, flat flex conveyor belts are valued for their adaptability to different environments, ease of maintenance, and ability to handle a variety of products, making them a popular choice across multiple industries.
