Stainless Steel Wire Mesh Compound Balanced Weave Conveyor Belt Cordweave Conveyor Belt

Compound Balanced Weave Belt is consisted of alternating left & right hand spiral compressed to create a tight weave with a flat surface which can block the leakage of small objects , heat resistance , high tensile strength

Stainless Steel Wire Mesh Compound Balanced Weave Conveyor Belt Cordweave Conveyor Belt feature:

Convey very small items
Ideal for bakeries and snake food process
High density construction
Flat smooth carrying surface
Provide a uniform heat transfer
High resistance against acid, alkaline, chemical, abrasion and corrosion.
Capable to work regardless of high temperatures.

Smooth conveying surface minimize marks and provide easy accurate conveying.
Long service life.

Stainless Steel Wire Mesh Compound Balanced Weave Conveyor Belt Cordweave Conveyor Belt :

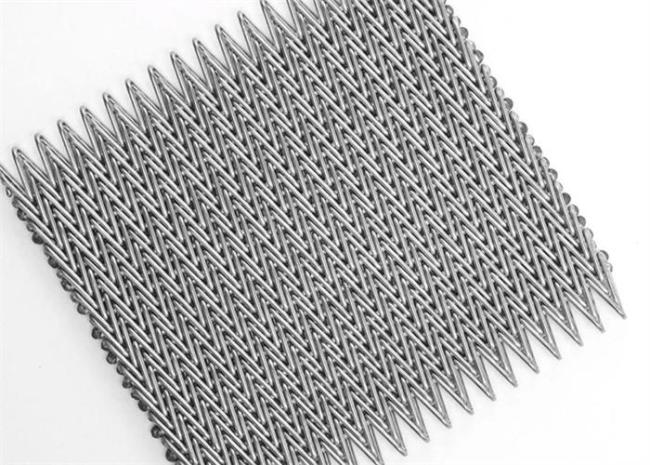

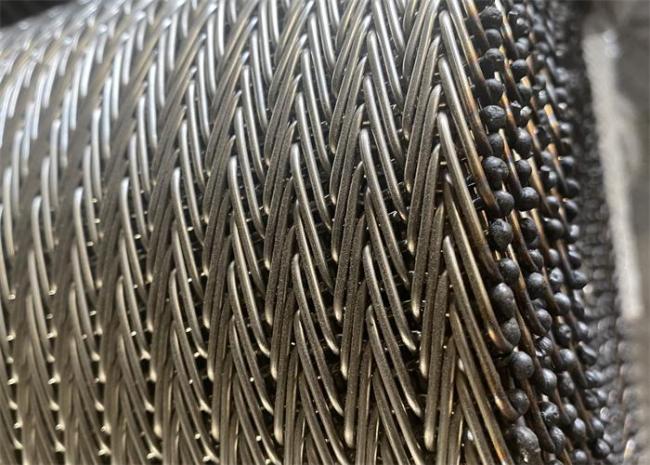

The compound belt is essentially a balanced spiral belt that has multiple spirals and cross rods per pitch. This compound structure closes up the apertures within the belt, giving compound weave its characteristic high density and flat surface. It is similar to a balanced weave besides smaller opening and far denser weave. As a result of this construction, Compound Weave Conveyor Belts offer an extremely close and flat mesh for applications where very small items are being conveyed. The compound weave also provides a uniform heat transfer across the belt due to its high density and smooth carrying surface. These characteristics make compound weave a popular choice in a wide variety of applications, ranging from biscuit baking to sorting small mechanical components.
