Stainless Steel 304 Honeycomb Conveyor Belt Great Wall Honeycomb Flat Strip Wire Mesh Belt

Price Negotiable
Price: Negotiable
MOQ: 10 meters
Delivery Time: 5-20 days
Brand: Comesh
Product Description

Stainless Steel 304 Honeycomb Conveyor Belt Great Wall Honeycomb Flat Strip Wire Mesh Belt



Stainless Steel 304 Honeycomb Conveyor Belt Great Wall Honeycomb Flat Strip Wire Mesh Belt description:

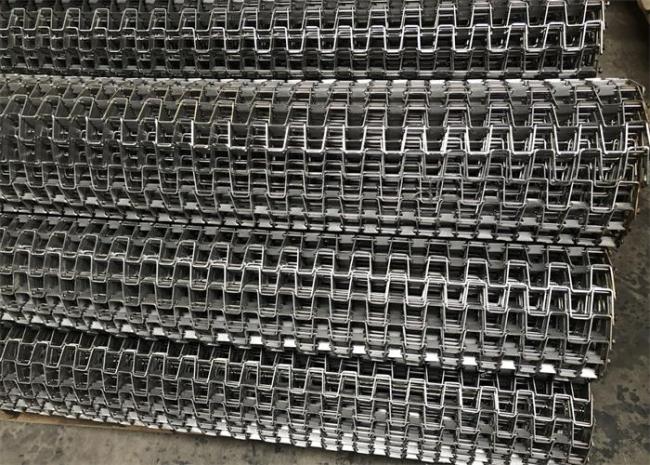

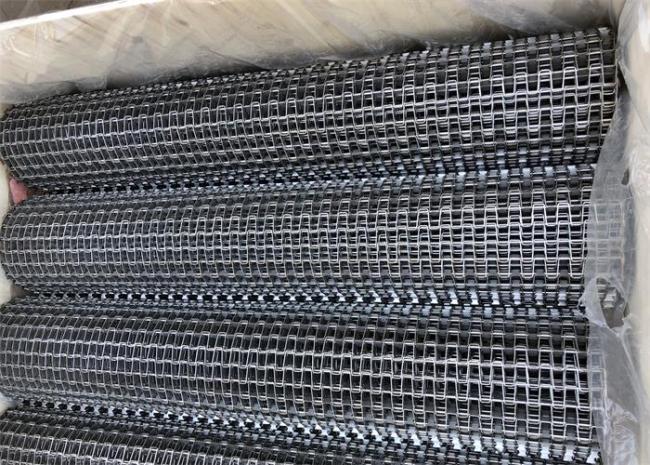

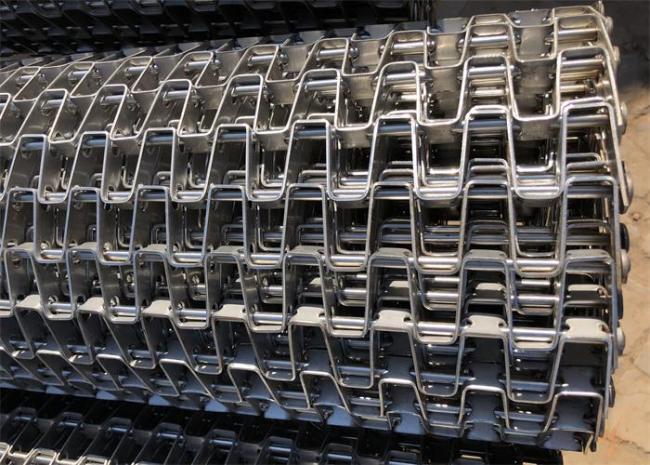

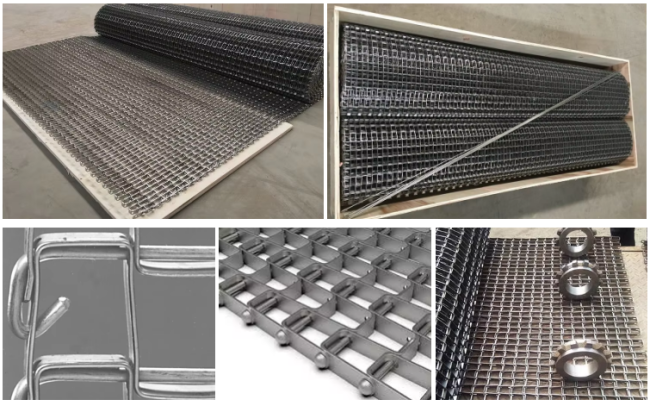

Honeycomb conveyor belt, also called flat wire conveyor belt. The honeycomb belt is constructed of cross rods and a flat metal strip. At the sides of the belt the cross rods have a welded ring (welded edges). In a number of dimensions it is possible to give the sides of the belt a clinged edge. There are a number of predefined belt executions with different pitches and material dimensions. The belt can also be provided with side plates or flights. The flat wires are arranged in the form of lattice and jointed with the straight round rods. The material of flat wire belt are commonly high carbon steel, galvanized steel, stainless steel and other materials.




Name Stainless Steel 304 Honeycomb Conveyor Belt Great Wall Honeycomb Flat Strip Wire Mesh Belt
Material Stainless steel 304,316,310,314S,carbon steel
Plate thickness 0.5mm-3mm
Width 0.5m-5m
Driven type Sprockets driven directly



Stainless Steel 304 Honeycomb Conveyor Belt Great Wall Honeycomb Flat Strip Wire Mesh Belt​ advantage:



Honeycomb conveyor belt is a perfect products with both durability and suitable open area. It is temperature resistance, which is popular in the baking conveying applications. The flat surface of honeycomb conveyor belt supplies stable conveying during using. Honeycomb belts are used in production processes with temperatures of -30ºC up to +400ºC in food and other industries.



Stainless Steel 304 Honeycomb Conveyor Belt Great Wall Honeycomb Flat Strip Wire Mesh Belt​ application:



Stainless steel Metal Honeycomb mesh conveyor belts is widely used in glass industry, food processing industry.
* Wire mesh conveyor belt is widely used in areas such as cement, metallurgy, casting, chemical transport materials.
* Wire mesh conveyor belt can be used for high temperature resistant, resistant to burn conveyor belt, electronic balance tear conveyor belt etc
* Instant noodles , rice ,bread, cookies and food industry;
