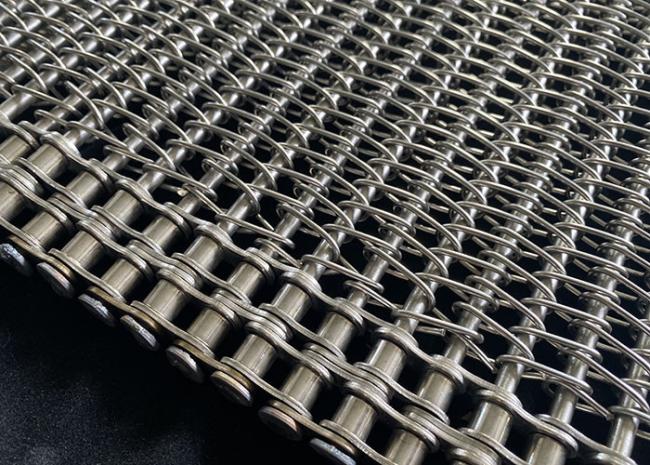

Metal Stainless Steel 304 Mesh Chain Conveyor Belt With Rod
Metal Stainless Steel 304 Mesh Chain Conveyor Belt with Rod
about Metal Stainless Steel 304 Mesh Chain Conveyor Belt with Rod
It is also called Balanced Weave Wire mesh conveyor belt,which is economical mesh and most versatile for many applications,Spiral wire link belt can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable opening size.
The round end of spiral wire belt allow goods on it transfer to the following stage processing very easily.
Features of Stainless Steel 304 mesh Chain conveyor belt:
- corrosion resistant
- heat resistant
- straight running
- easy to install
- food grade material
- customized as per your requirement
Applications of Metal Mesh Chain Covneyor Belt:
- Bakery
- Wire mesh belts for Mechanical, Metallurgy
- Glass Annealing
- Wood drying
- Architecture
- Pharmaceutical wire mesh conveyor belts
- Ecology and Metal Recycling
- Wire mesh belts for water treatment
- Food transport and processing
Specifications and catalog of Mesh Chain Conveyor Belt:
 |
specifications | Weight per square meters -KG |
| K2-40-50-6.0-5.0 | 15.0 | |
| K2-25-30-5.0-5.0 | 23.7 | |
| K2-30-40-5.0-4.0 | 12.7 | |
| K2-20-25-5.0-4.0 | 21.5 | |
| K2-15-20-4.0-4.0 | 55.4 | |
| K2-20-25-4.0-3.4 | 14.4 | |
| K2-25-30-4.0-3.2 | 10.4 | |
| K2-15-20-3.4-3.2 | 16.0 | |
| K2-20-25-3.4-3.0 | 10.7 | |
| K2-15-20-3.2-3.0 | 13.9 | |
| K2-10-15-3.2-3.0 | 21.9 | |
| K2-15-20-3.0-2.6 | 10.6 | |
| K2-10-15-2.6-2.6 | 15.3 | |
| K2-15-20-2.6-2.3 | 8.0 | |
| K2-10-15-2.6-2.3 | 12.3 | |
| K2-8-12-2.3-2.3 | 15.3 | |
| K2-12-18-2.3-2.0 | 7.4 | |
| K2-8-12-2.3-2.0 | 12.1 | |
| K2-6-9-2.0-2.0 | 16.1 | |
| K2-10-15-2.0-1.8 | 7.2 | |
| K2-6-9-1.8-1.8 | 12.6 | |
| K2-10-15-1.8-1.6 | 5.6 | |
| K2-7-10-1.8-1.6 | 8.7 | |
| K2-5-7-1.6-1.6 | 12.7 | |
| K2-8-12-1.6-1.4 | 5.5 | |
| K2-5-7-1.4-1.4 | 9.3 | |
| K2-9-13-1.6-1.2 | 3.9 | |
| K2-6-9-1.4-1.2 | 5.6 | |
| K2-4-6-1.2-1.2 | 8.5 | |
| K2-6-9-1.2-1.0 | 3.8 | |
| K2-4-6-1.2-1.0 | 6.2 | |
| K2-3-4-1.0-1.0 | 8.6 | |
| K2-4-6-1.0-0.9 | 4.7 | |
| K2-3-4-1.0-0.9 | 7.2 | |
| K2-4-5-1.0-0.8 | 4.3 | |
| K2-3-4-0.9-0.8 | 5.5 |

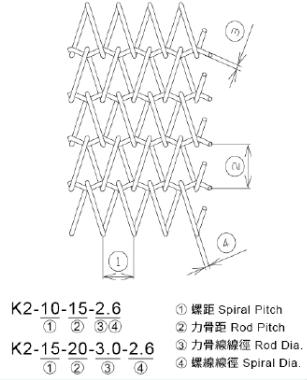

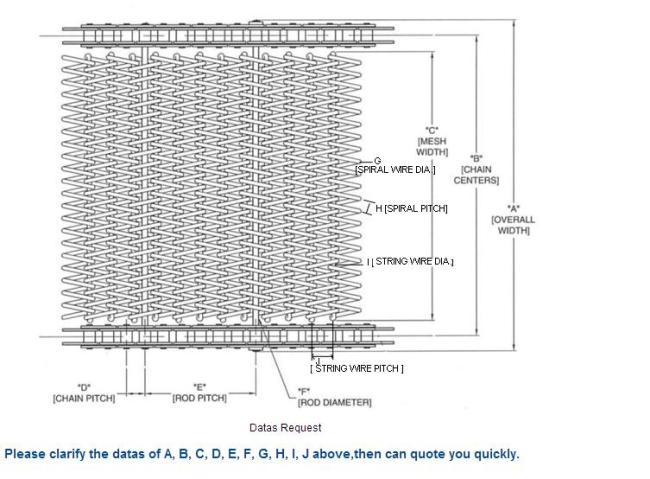

Please refer to the following drawing when send us inquiry, if you don`t know the exact datas,please send us your requirement as more as possible,so that we can send you our advice and best designation:
