Custom Stainless Steel Spiral Wire Mesh Conveyor Belt for Food Industry
Custom Size Stainless Steel Spiral Wire Mesh Chain Driven Conveyor Belt for Food Industries
1. Description :
stainless steel spiral wire mesh chain-driven conveyor belt is a specialized type of conveyor system designed for various industrial applications.
2. Feature :
- Material: Made from high-quality stainless steel, which provides excellent resistance to corrosion and high temperatures.
- Design: The spiral wire mesh allows for flexibility and strength, making it suitable for transporting various products, including loose items and packaged goods.
- Chain-Driven: Operated by a chain mechanism, ensuring smooth and reliable movement along the conveyor path.
- Customization: Available in various sizes, wire diameters, and mesh configurations to meet specific operational needs.
3. Application :
- Food processing
- Packaging
- Material handling
- Automotive assembly lines
4. Specification :
| Material | stainless steel 304, or stainless steel 316 316L, carbon steel |
| Width | 860 mm , or customized |
| Length | 5 m per roll , or customized |
| Wire Diameter | 1.6 mm , or customized |
| Rod diameter |
6 mm , or customized |
| Spiral pitch | 5 mm , or customized |
| Cross wire pitch | 12 mm , or customized |
| Rod pitch | 50.8 mm , or customized |
| Chain pitch | 25.4 mm , or customized |
5. Available materials :
1) AISI 314 (1150°C)
2) SUS 310S (1090°C)
3) SUH 330 (1150°C)
4) SUS 304 (870°C)
5) Super alloy Cr20Ni80 (1250°C) electrical furnace wire
6) SUS 321 (750°C)
7) SUS 410 (700°C)
8) SUS 430 (700°C)
9) Various metal materials as per your requirements
6. Packing & Delivery :
Packing: PP bag inside, and then wooden case outside.
Delivery: it can be shipped by sea or air, express, such as DHL FEDEX TNT SF UPS,etc

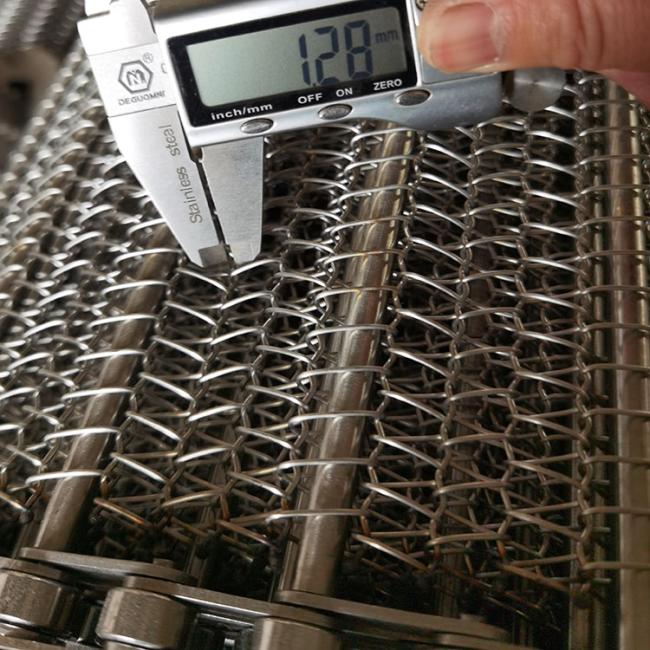

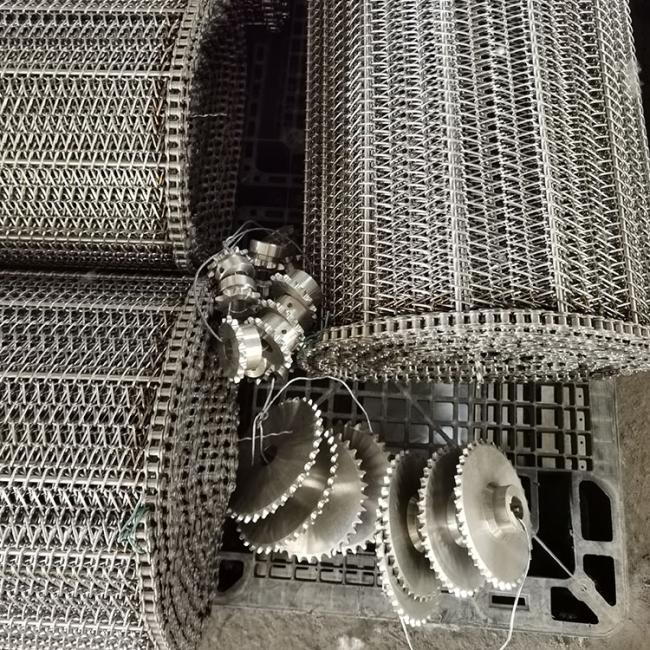

7. Product Shows :
