Discription:
Spiral Grid Belt also named Flexible Rod Conveyor Belt, it is an innovative wire mesh conveyor belt, specially designed for use in spiral conveyors. This unique spiral conveyor belt is engineered with precision using premium stainless steel wires, ensuring excellent durability and resistance to corrosion. The interlocking mesh pattern creates a strong and stable surface, making it an ideal choice for conveying various products. Spiral Wire Belts are usually used for frozen food industrial, the surface is smooth for quick and easy cleaning, also can bear heavy pressure and tension, good performance can reach 360 degree flat turning.
Features:
- Material: The spiral mesh conveyor belt is precision-crafted from high-quality stainless steel wire. This material ensures its superior durability, corrosion resistance, and high-temperature resistance. Its robust structure makes it ideal for heavy-duty industrial applications.
- Design: The spiral conveyor belt utilizes an innovative metal mesh structure, providing exceptional strength and stability. This design prevents product displacement, ensuring smooth and efficient conveying operations.
- Customization: Our spiral mesh conveyor belts offer a variety of customization options to meet specific production needs. It is available in various widths, pitches, and wire diameters. Furthermore, the conveyor belt can be customized in straight or curved configurations, making it suitable for different conveying layouts.
- Maintenance: The open structure of the spiral mesh conveyor belt facilitates cleaning and maintenance. This feature is crucial in industries such as food processing and pharmaceuticals, ensuring hygienic operation and preventing debris accumulation.
Application:
This Rod Belts are also suitable for use in spiral freezer and tunnel ovens, quenching furnaces, cleaning machines, frying machines, quick-freezing machines and other dynamic temperature equipment. Solutions for the most complex situations. With a range of combinations of pitch, wire diameter, mesh length and side finishes, Multi-tier Spiral Conveyor Belts can be integrated in practically any production process.
- transporting
- freezing
- steaming
- drying and fermentation
- cooling
- pasteurization
- sterilization.

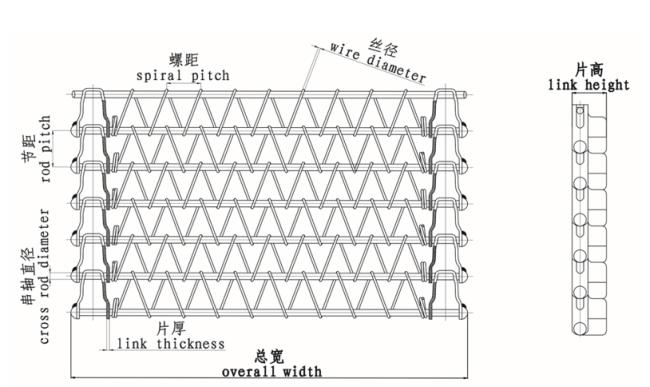

Specifications:
| Product Name | Stainless Steel Spiral Grid Conveyor Belts |
| Certificate | SGS |
| Technique | Spiral Grid Conveyor Belts |
| Material | 201,304,316L,310S,410 etc |
| Specification |
· Chain pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm. · Rod diameter: 4mm,5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm. · Wire diameter: 1.2mm,1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm. · Spiral pitch: 2.4 mm to 100 mm. · Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm. · Belt width: 200 mm to 6,000 mm. |
| Application | Drying,Cooling,Freezing,Pasteurizing,Blanching,Baking and Washing machine |
| Size | Max width can reach to 6000mm , belt length can be customized as your machine. |
| Other services | Special requirements can be customized |
