Corrosion Resistant Spiral Weave SS304 Stainless Steel Wire Mesh Conveyor Belt for Food Processing Drying Oven Equipment
Price:
USD 18-35 / Meter
MOQ:
5 Meters
Delivery Time:
5-7 working days for stock, 15-20 days for production
Brand:
COMESH
Product Description
Corrosion Resistant Spiral Weave SS304 Stainless Steel Wire Mesh Conveyor Belt for Food Processing Drying Oven Equipment
Our spiral weave stainless steel wire mesh conveyor belt is engineered with premium SS304 grade stainless steel, offering exceptional corrosion resistance for demanding food processing and drying applications. The spiral weave construction provides a smooth, flat conveying surface with excellent strength-to-weight ratio, ideal for bakeries, vegetable drying, and food dehydration lines.
Key Features

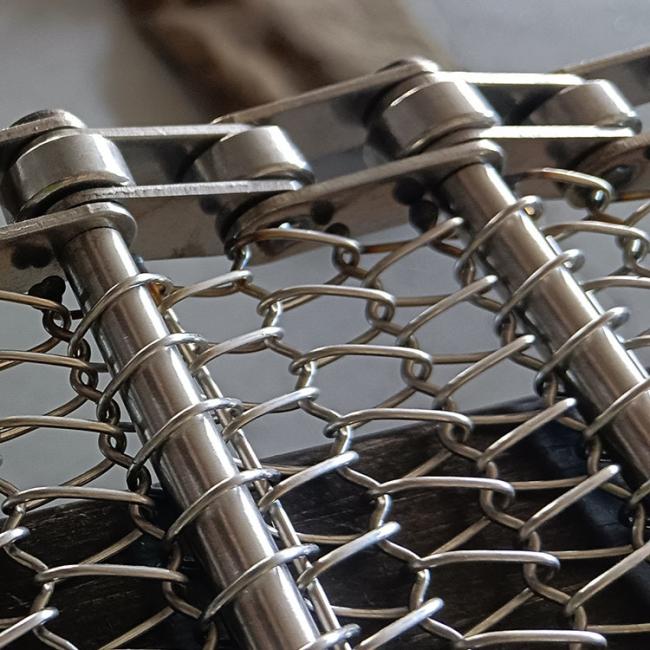

- Spiral Weave Structure: Alternating left-hand and right-hand spiral wires connected by straight and cranked rods for uniform tension distribution and smooth belt surface
- SS304 Stainless Steel Grade: Superior corrosion resistance against moisture, food acids, and cleaning chemicals — meets food safety hygiene standards
- Rod Reinforced Design: Cross rods at each spiral pitch provide enhanced lateral stability and prevent belt stretching under load
- Excellent Ventilation: Open mesh structure allows maximum airflow for even heat distribution in drying ovens and cooling tunnels
- Customizable Dimensions: Wire diameter from 1.0mm to 3.0mm, belt width up to 3000mm, any length available
Technical Specifications
| Material Grade | SS304 (AISI 304) Stainless Steel |
| Weave Type | Spiral Weave with Rod Reinforcement |
| Wire Diameter | 1.2mm / 1.5mm / 2.0mm / 2.5mm |
| Belt Width | 300mm — 3000mm (Customizable) |
| Mesh Pitch | 8mm / 10mm / 12mm / 15mm |
| Open Area Ratio | 65% — 75% |
| Working Temperature | -20°C to 400°C |
| Load Capacity | Up to 50 kg/m² (depends on wire diameter) |
| Edge Finish | Welded Edge / Chain Driven Edge (Optional) |
| Certification | ISO 9001:2015, FDA Compliant |
Applications
- Bakery tunnel ovens — bread, biscuit, and pastry baking lines
- Food dehydration — vegetable, fruit, and meat drying conveyors
- Cooling tunnels — post-baking and freezing lines
- Washing lines — fruit and vegetable cleaning conveyors
- General food processing — conveying, sorting, and inspection
We supply custom-sized spiral weave SS304 conveyor belts with fast turnaround. Contact us with your belt dimensions and application for a tailored quote.
