High Temperature 310S Stainless Steel Compound Balance Weave Conveyor Belt for Annealing Furnace 1150C
Price:
USD 45-90 / Square Meter
MOQ:
5 Square Meters
Delivery Time:
15-20 working days after deposit
Brand:
COMESH
Product Description
High Temperature 310S Stainless Steel Compound Balance Weave Conveyor Belt for Annealing Furnace 1150C

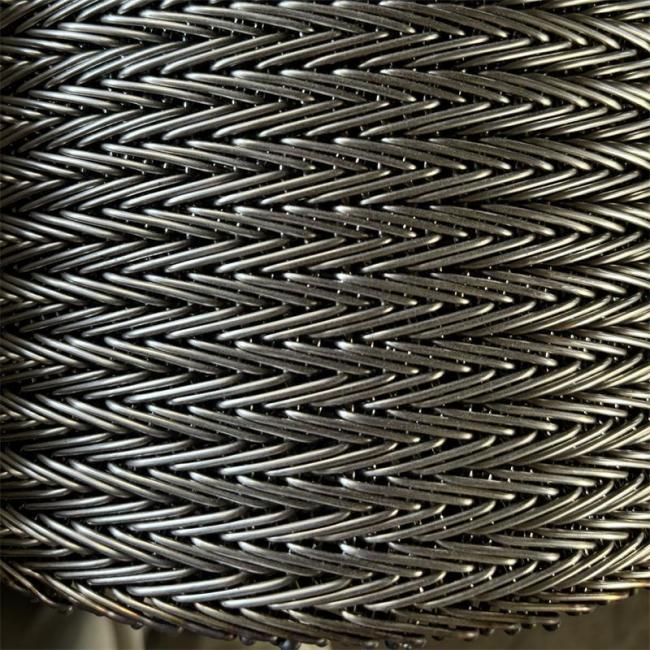

This high temperature conveyor belt is woven in 310S stainless steel with a compound balance weave structure, engineered for continuous service in annealing, glass tempering and sintering furnace lines where working temperatures reach up to 1150°C.
Key Features

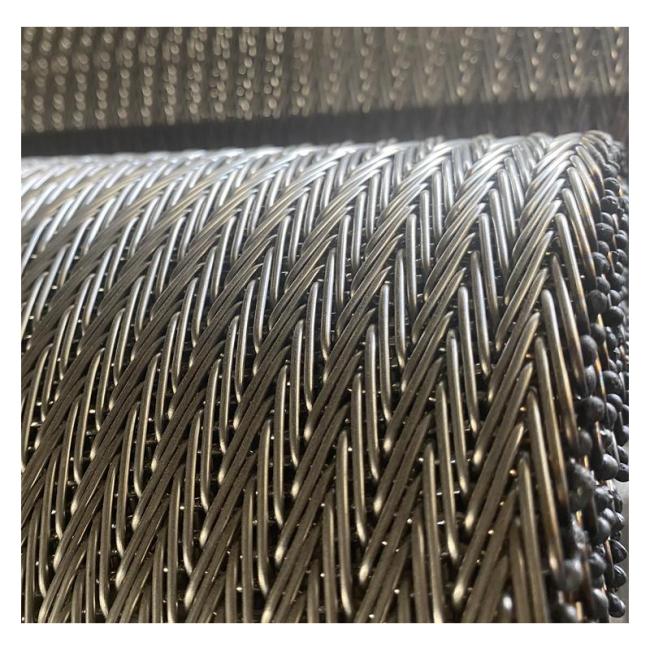

- Compound balance weave with alternating left and right hand spirals and crimped connecting rods ensures straight tracking and stable running.
- 310S / 314 stainless steel construction delivers outstanding oxidation resistance and creep strength at elevated temperatures.
- Open mesh structure allows free air circulation for uniform heating and rapid cooling of products.
- Reinforced edge options prevent fraying and extend service life under heavy thermal cycling.
- Customizable width, length, wire diameter and mesh opening to fit existing furnace dimensions.
Technical Specifications
| Item | Specification |
|---|---|
| Material | SS 310S / 314 |
| Weave Type | Compound Balance Weave |
| Max Working Temperature | 1150°C (2100°F) |
| Wire Diameter | 2.0 - 4.0 mm |
| Mesh Opening | 8 - 25 mm |
| Belt Width | 100 - 5000 mm |
| Connecting Rod | Crimped or straight, optional reinforced edge |
| Surface Treatment | Pickled and passivated |
Applications
- Annealing furnaces
- Glass tempering and forming lines
- Sintering and quenching furnaces
- Ceramic and refractory processing
- Powder metallurgy production lines
For custom high temperature conveyor belt sizing, contact our engineering team with your furnace temperature, belt width and loading requirements.
