304 316 316L Stainless Steel Woven Wire Mesh For Filtering Industry

Name: 304 316 316L Stainless Steel Woven Wire Mesh For Filtering Industry
Brand: Anping County Comesh Filter Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 1 square meter

Delivery Time: in 3 days for goods in stock

Brand: PFM

Product Description

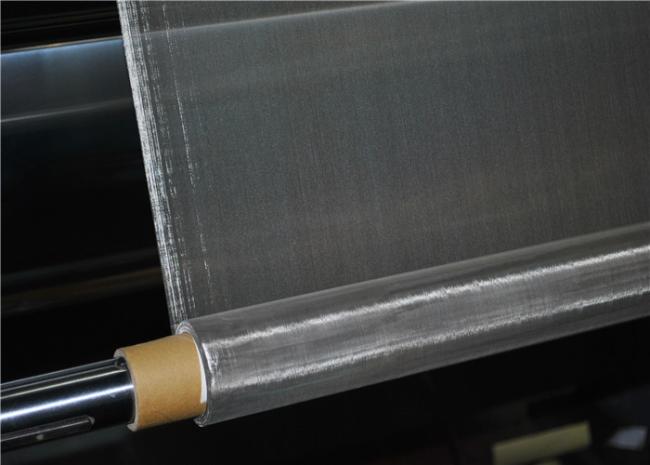

304,316,316L Stainless Steel Wire Mesh Used For Filtering Industry

Decription of stainless steel wire mesh:

Material: SS 201,202,304, 304L, 316, 316L, 430, 304N,Etc.

Mesh:1-1500mesh

Diameter:0.02-3.0mm

Weave types: Plain weave, twill weave, Dutch weave, Five Heddle weave,crimped mesh

Features of stainless steel wire mesh

Washability:Easy to clean,especially suitable for backwashing
Tractability: suitable for cutting, bending, stamping, drawing, welding and other processes.
Stability: Because there are two layers to protect the screen which make filters is not easily to deform.
Filtering capabilities:Filtration range of 1μ-200μ, has a reliable filter performance
Resist high temperature:480 °C can withstand high temperatures.
Corrosion resistance: As a result of SUS316L, 304 materials, the corrosion resistance.
High mechanical strength and compressive strength

Applications of stainless steel wire mesh:

Specifications of stainless steel wire mesh:

Stainless Steel Wire Mesh Specification
Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(kg/Square meter)
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(kg/Square meter)
1×1	0.080	2.03	0.920	23.37	92.0	2.0
2×2	0.063	1.6	0.437	11.1	87.4	2.5
3×3	0.054	1.37	0.279	7.09	83.8	2.7
4×4	0.047	1.2	0.203	5.16	81.2	2.7
5×5	0.041	1.04	0.159	4.04	79.5	2.6
10×10	0.024	0.6	0.076	1.94	74.9	1.8
12×12	0.020	0.5	0.064	1.62	75.9	1.5
14×14	0.020	0.5	0.052	1.314	71.9	1.75
16×16	0.018	0.45	0.045	1.137	71.2	1.6
18×18	0.016	0.4	0.0398	1.01	69.4	1.4
20×20	0.009	0.24	0.041	1.03	76.0	0.57
20×20	0.012	0.3	0.0382	0.97	72.2	0.9
30×30	0.012	0.3	0.0215	0.547	63.9	1.35
30×30	0.0094	0.24	0.0243	0.62	72.1	0.84
40×40	0.0098	0.25	0.015	0.385	36.74	1.25
50×50	0.0079	0.2	0.0121	0.308	36.7	1.0
60×60	0.0047	0.12	0.012	0.303	71.6	0.42
60×60	0.0059	0.15	0.0107	0.273	64.5	0.65
80×80	0.0047	0.12	0.0078	0.198	38.7	0.58
80×80	0.0055	0.14	0.0069	0.177	45.5	0.76
100×100	0.0039	0.1	0.006	0.154	59.8	0.50
100×100	0.0043	0.11	0.0056	0.144	55.1	0.60
120×120	0.0027	0.07	0.0056	0.142	67.7	0.29
120×120	0.0031	0.08	0.0052	0.132	38.7	0.38
150×150	0.0024	0.06	0.0043	0.109	41.6	0.27
165×165	0.0018	0.45	0.0043	0.109	50	0.167
180×180	0.0019	0.05	0.0036	0.091	64.5	0.22
180×180	0.0023	0.06	0.0032	0.081	57.4	0.32
200×200	0.0019	0.05	0.003	0.077	60.6	0.24
200×200	0.0024	0.06	0.0026	0.067	52.7	0.35
250×250	0.0012	0.03	0.0028	0.072	49.8	0.11
250×250	0.0016	0.04	0.0024	0.062	36.9	0.20
270×270	0.0014	0.035	0.0023	0.059	60	0.16
270×270	0.0016	0.04	0.0021	0.054	57.4	0.21
300×300	0.0012	0.03	0.0022	0.055	57	0.13
325×325	0.0014	0.035	0.0017	0.0432	55.3	0.20
400×400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500×500	0.0009	0.025	0.001	0.0258	50.7	0.15
635×635	0.0007	0.018	0.0008	0.022	55	0.10
